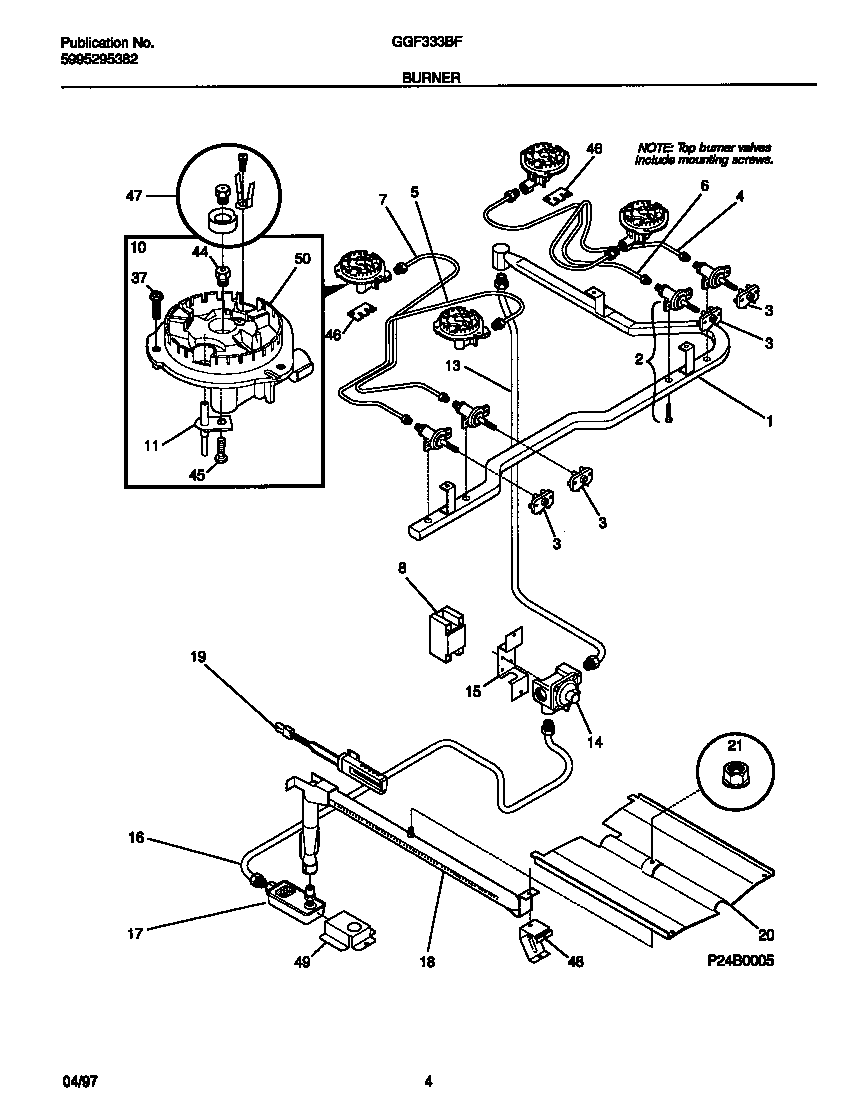

GGF333BFDA 03 – BURNER

GGF333BFDA 03 – BURNER

Written by

in

GGF333BFDA 03 – BURNER

Products

PositionProduct
1WCI 316066201
2316048200 Frigidaire Oven Screw
3ASWITCH-IGNITER, (4)
3BSWITCH HARNESS TERMINAL KIT
4WCI 316059612
5316059613 Frigidaire Oven Tube-LF
6WCI 316059614
7316059615 Frigidaire Oven Tube
8BHARNESS-WIRING, MODULE/IGNITER (NON-ILLUSTRATED)
8A5304505695 Frigidaire Oven Module
10BURNER ASSY-TOP, SEALED, (4), INCLUDES, 11, 37, 44, 45,
11316011200 Frigidaire Oven Top Burner Igniter
13WCI 316065005
14A5304521339 Frigidaire Regulator
14B316021104 Frigidaire Oven Screw Assembly
15316091600 Frigidaire Oven Bracket
16316065006 Frigidaire Tube P1
173203459 Frigidaire Oven Range Dual Gas Safety Valve
18WCI 3131439
195303935066 Frigidaire Oven Flat Igniter 17" Leads
20WCI 3203265
215303013272 Frigidaire Oven Nut
37316069301 Frigidaire Oven Burner Mounting Primary Screw
44ORIFICE-TOP BURNER, (4)
45WCI 316011100
46WCI 316074700
47WCI 5303286386
48WCI 3018603
49BRKT.-VALVE
50BURNER-TOP, (4), INCLUDES 37
