GGF334BHWD 07 – BODY

GGF334BHWD 07 – BODY

Written by

in

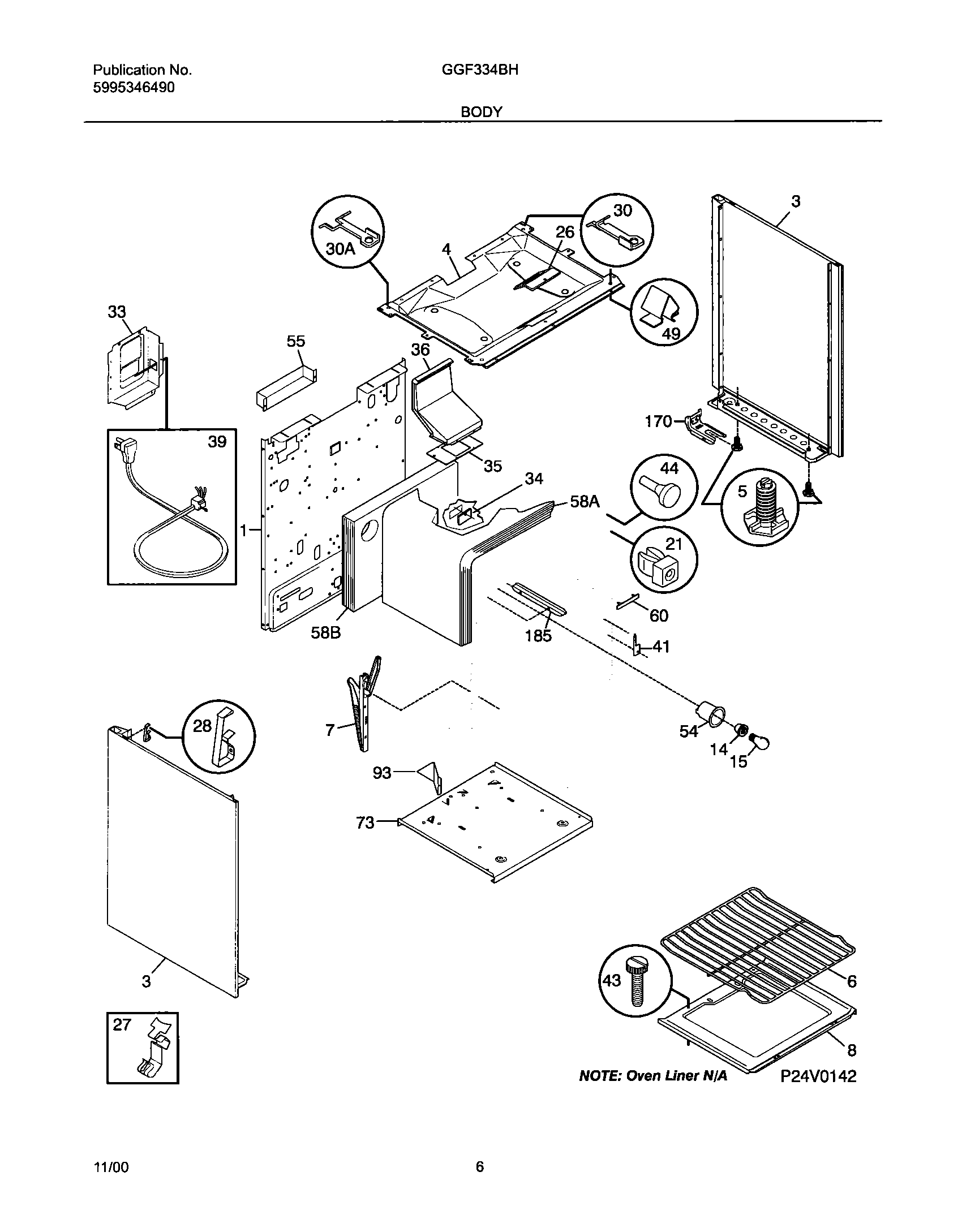

GGF334BHWD 07 – BODY

Products

PositionProduct
NIWCI 5303280311
NIScrew,cup pt ,8-18 x 0.375 ,chrome
NI316112900 Frigidaire SHIELD
NI316064600 Frigidaire Oven Support
NIWASHER-BLACK
NI316021105 Frigidaire Oven Screw
NI5303285179 Frigidaire Oven Door Screw
1WCI 316029416
3WCI 316081034
3WCI 316081035
4WCI 316011918
5WCI 316129200
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8PANEL-OVEN BOTTOM
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
30AWCI 316059201
30WCI 316059200
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36316204402 Frigidaire Oven Flue
395304515659 Frigidaire Oven Power Cord
41WCI 3131570
43316282700 Frigidaire Oven Screw
493205821 Frigidaire Clip
54AWCI 5303271606
55WCI 5303289358
58BINSUL – OVEN BACK (NON-ILLUSTRATED)
58AINSULATION, OVEN WRAPPER
73WCI 316109902
93WCI 316110000
170316116000 Frigidaire Screw
170316112500 Frigidaire Oven Template
170316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
