GGF350SBDB 02 – BACKGUARD – Aparts

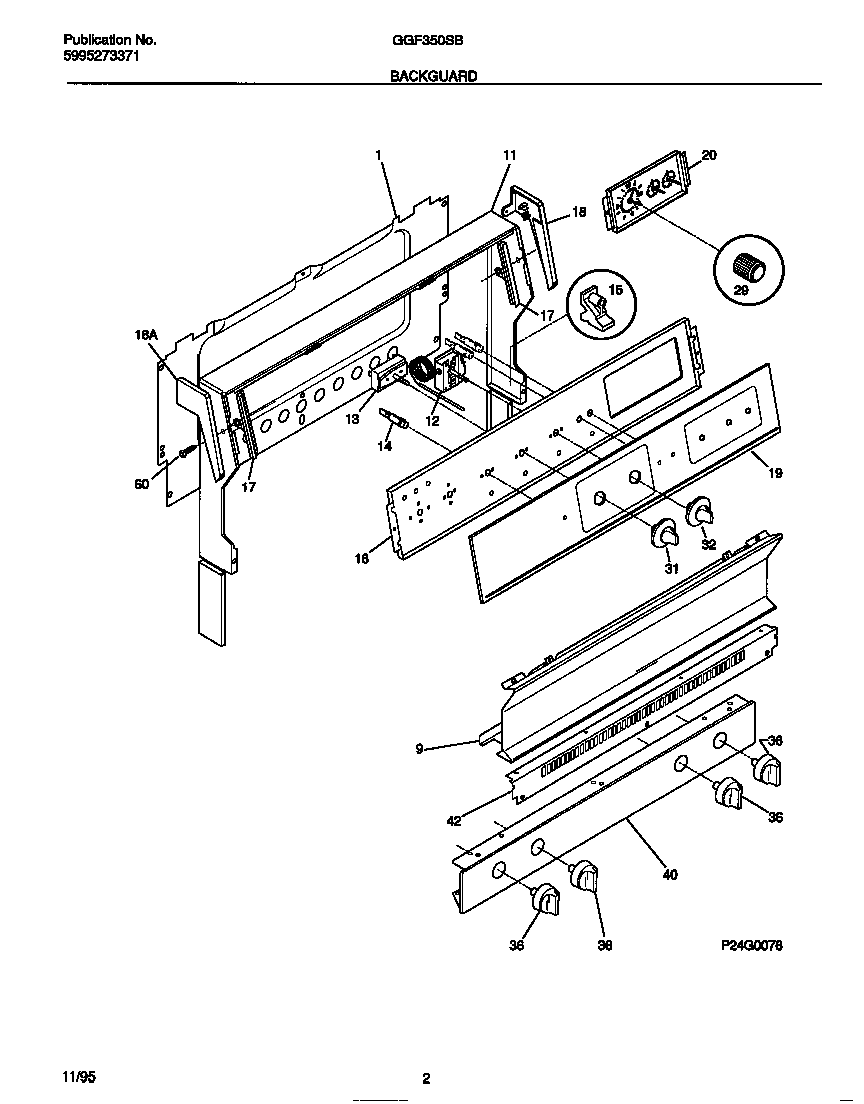

GGF350SBDB 02 – BACKGUARD

Products

Position	Product
*07402	316021105 Frigidaire Oven Screw
*07403	WCI 5303281584
*07400	WCI 3204745
*07401	WCI 316001422
1	SHIELD-BACKGUARD, REAR WALL
9	TRIM-SPLASHER, ALMOND
11	WCI 3131238
12	THERMOSTAT-BAKE
13	SWITCH SELECTOR 5 POS
14B	INDICATOR LIGHT-LOCK (1)
14A	WCI 5308037896
15	SUPPORT-BACKGUARD,(2)
16	WCI 316042601
17	TRIM-GLASS RTNR. LH & RH
18	WCI 3131229
18	SHIELD-REAR WALL
19	PANEL-CONTROL, GLASS
20	CLOCK/TIMER, ANALOG 3 STEM
29	WCI 316029000
31	WCI 316019133
32	WCI 316019132
36	WCI 316023006
40	WCI 5303208910
42	WCI 316084300
60	WCI 5303290188
