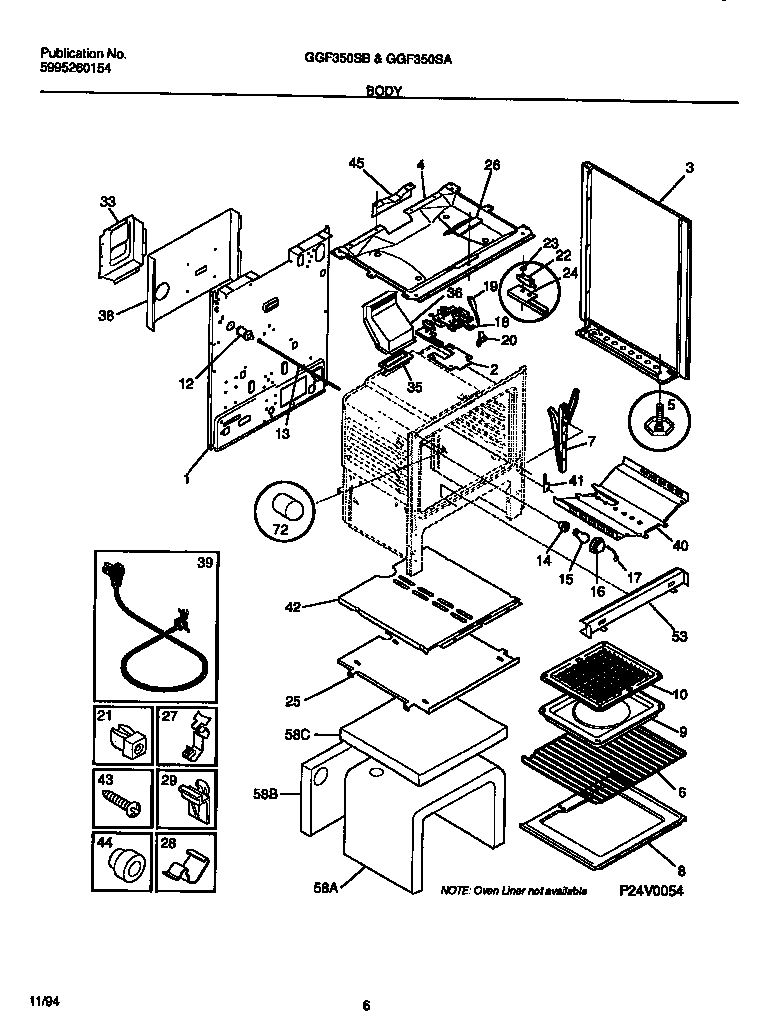

GGF353SADB 04 – BODY

Products

PositionProduct
*71125WCI 08067961
*71128ALUM-FOIL-MUST BE USED WHEN REPLACING BODYSIDE
*71124FASTENER-EDGE MTG (NOT ILLUSTRATED)
*711265303321319 Frigidaire Refrigerator White Touch Up Paint
1WCI 316029405
2SHIELD-OVN TOP
3BSHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3APNL-B/S-LH-WHITE
3PNL-B/S-RH-WHITE
3CWCI 08067992
4WCI 3011597
5BNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5AWCI 3934058
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8A316064600 Frigidaire Oven Support
8BTTM-OVEN
9WCI 316073800
10WCI 316073900
12WCI 316027702
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-GLASS
18WCI 5303015453
18ASHIELD-LATCH (NON-ILLUSTRATED)
19WCI 5303131357
20WCI 3203218
20AWCI 08013188
21SPACER-BODYSIDE, (8)
22SWITCH-LATCH
22ASTUD SPACER (2) (NON-ILLUSTRATED)
23FSTNR-PUSH ON
24SHIELD-LATCH
25WCI 3131313
26WCI 08067757
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
33SHIELD, REAR WALL
35316542102 Frigidaire Flue Gasket
36WCI 3131931
38WCI 316014301
39AHARNESS-WIRING, MAIN
395304515659 Frigidaire Oven Power Cord
40ASCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
40WCI 3200836
41WCI 3131570
42SHIELD-HEAT UPPER
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
45WCI 08068018
53SHIELD-FRONT
53A08067973 Frigidaire 0 Insulation
58AINSULATION, OVEN WRAPPER
58CINSULATION, OVEN TOP
58BWCI 316054200
72COVER-LIGHT/SWITCH ROD
