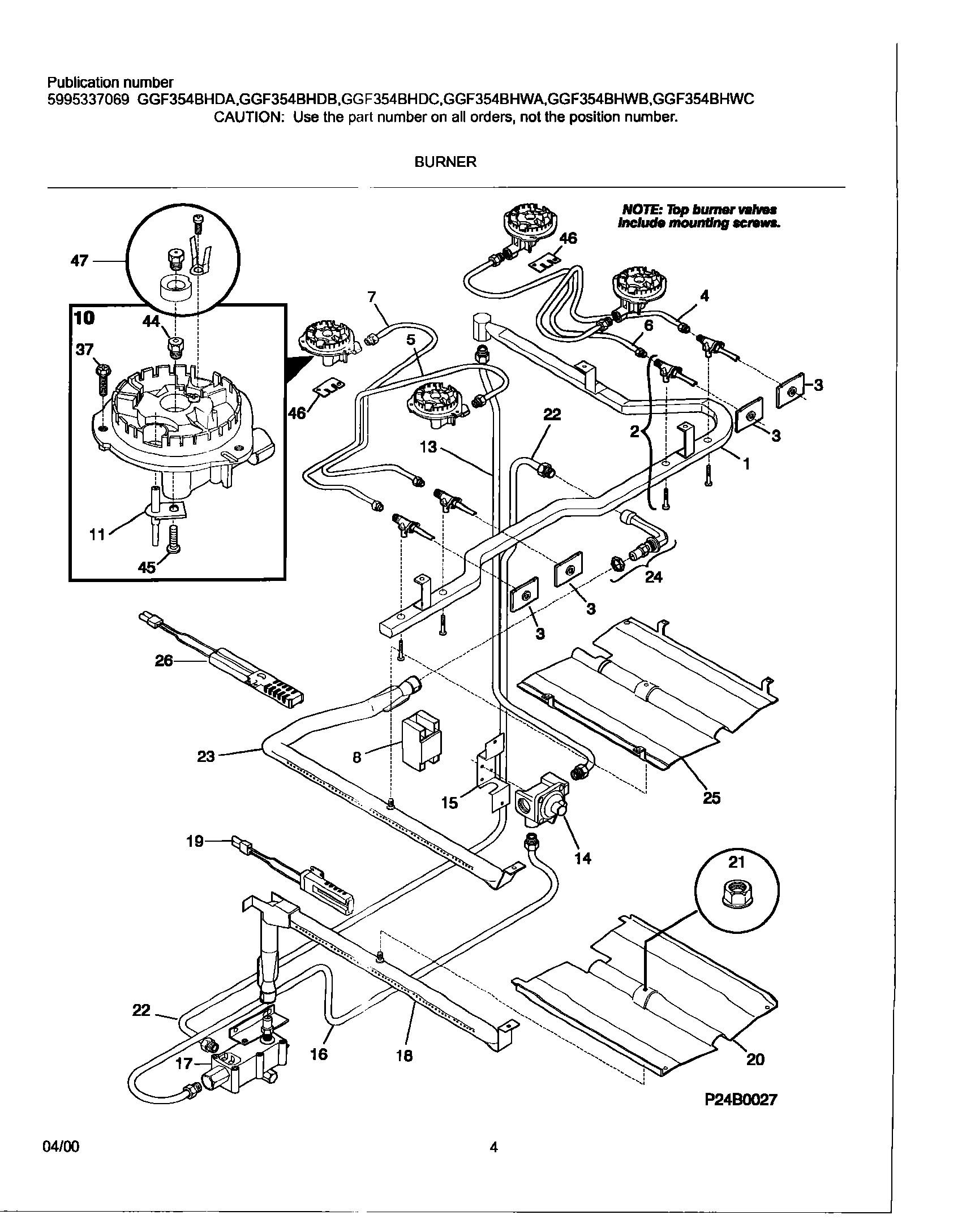

GGF354BHWC 05 – BURNER

Products

Position	Product
NI	5303271648 Frigidaire Oven Screw
NI	316048200 Frigidaire Oven Screw
1	WCI 316113801
2	WCI 316127500
3	WCI 316001824
4	WCI 316059612
5	316059613 Frigidaire Oven Tube-LF
6	WCI 316059614
7	316059615 Frigidaire Oven Tube
8	5304505695 Frigidaire Oven Module
10	BURNER ASSY-TOP, SEALED, (4), INCLUDES, 11, 37, 44, 45,
11	316011200 Frigidaire Oven Top Burner Igniter
13	WCI 316065005
14	316021104 Frigidaire Oven Screw Assembly
14	5304521339 Frigidaire Regulator
15	316091600 Frigidaire Oven Bracket
16	WCI 316065003
17	5303208499 Frigidaire Safety Gas Valve
18	WCI 3131290
19	5304509706 Frigidaire Range Oven Igniter
20	BAFFLE-OVN BURNER
21	5303013272 Frigidaire Oven Nut
22	WCI 316065002
23	WCI 316087900
24	WCI 316070400
25	WCI 5303210379
26	5303935068 Frigidaire Flat Igniter
37	316069301 Frigidaire Oven Burner Mounting Primary Screw
44	ORIFICE-TOP BURNER, (4)
45	WCI 316011100
46	WCI 316074700
47	WCI 5303286386
