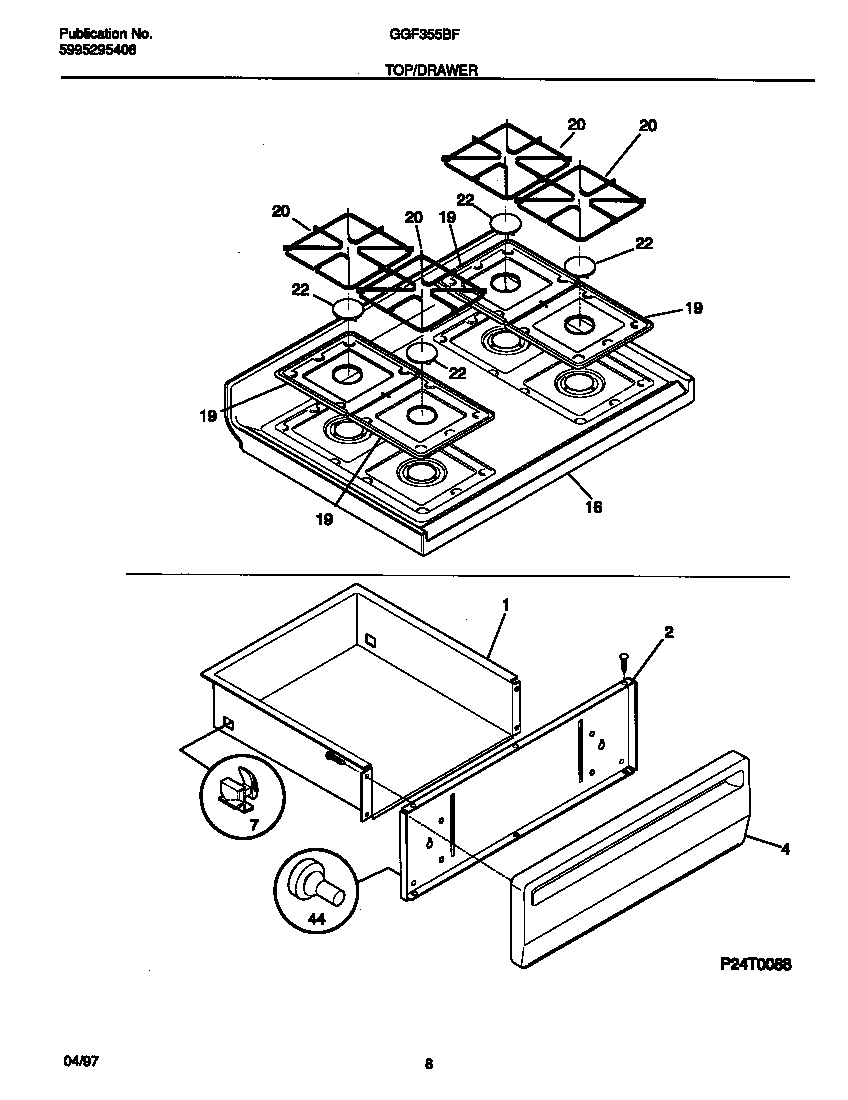

GGF355BFWA 05 – TOP/DRAWER

Products

PositionProduct
*79966RIVET-POP, WARING-PLATE
*79968WCI 316089600
*79970131243700 Frigidaire Screw
*79969WCI 5303280311
*79967Screw,cup pt ,8-18 x 0.375 ,chrome
*79965316021105 Frigidaire Oven Screw
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316084405
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4316021109 Frigidaire Oven Screw
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16WCI 5303301546
19WCI 316011401
20WCI 316085201
22316010901 Frigidaire Burner Cap P1
443131903 Frigidaire Door/Drawer Bumper
