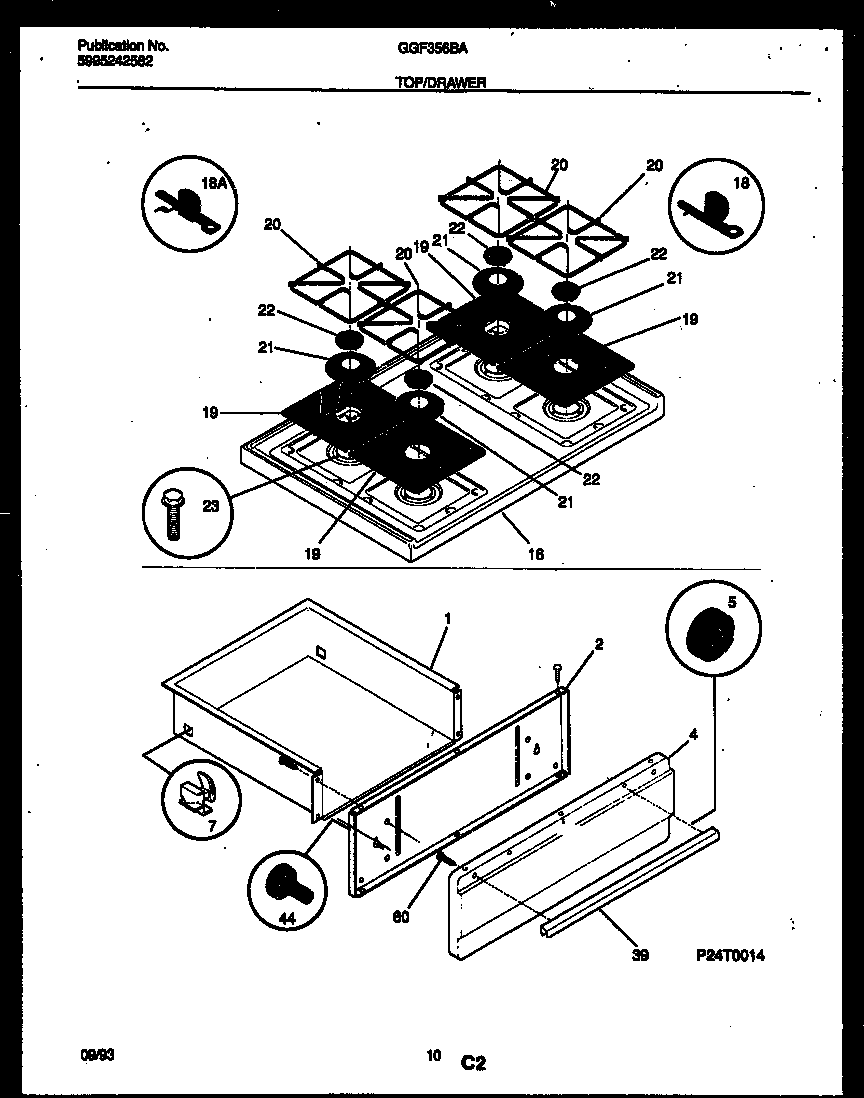

GGF356BAWA 06 – TOP/DRAWER PARTS

Products

Position	Product
*62907	WCI 5303281584
1	DRAWER-UTILITY
2	SHIELD-PNL
4	PNL-DRAWER (WHTE)
4A	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5	FSTNR, SPACER (2)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16B	GUSSET-MTG (LH) (NON-ILLUSTRATED)
16A	GUSSET-MTG (RH) (NON-ILLUSTRATED)
16	WCI 316010401
18B	131243700 Frigidaire Screw
18	BRACKET-HINGE,MAIN TOP RH
18A	BRACKET-HINGE,MAIN TOP LH
19	WCI 316011400
20	WCI 5303269632
21	WCI 316035101
22	316010901 Frigidaire Burner Cap P1
23	316069301 Frigidaire Oven Burner Mounting Primary Screw
39	WCI 316019504
44	3131903 Frigidaire Door/Drawer Bumper
60	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
