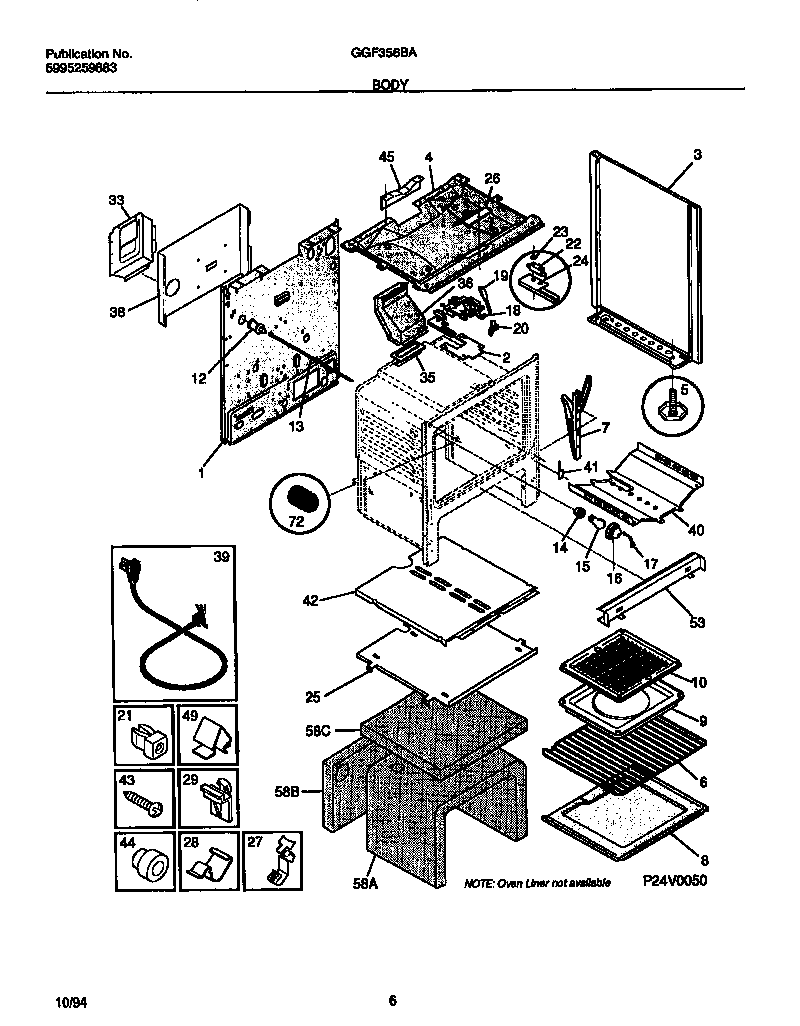

| 1 | WCI 316029405 |
| 2 | SHIELD-OVN TOP |
| 3C | SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED) |
| 3A | PNL-B/S-LH-WHITE |
| 3B | WCI 08067992 |
| 3D | FASTENER-EDGE MTG (NOT ILLUSTRATED) |
| 3 | PNL-B/S-RH-WHITE |
| 4 | WCI 316011905 |
| 5 | SCREW-LEVELING |
| 5B | NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED) |
| 5A | WCI 3934058 |
| 6 | 316067902 Frigidaire Oven Rack |
| 7A | 3203010 Frigidaire Clip |
| 7 | WCI 316007002 |
| 8A | 316064600 Frigidaire Oven Support |
| 8 | PANEL-OVEN BOTTOM |
| 9 | PAN-BROILER |
| 10 | WCI 5303131356 |
| 12 | WCI 316027702 |
| 13 | WCI 316026800 |
| 14 | 316116400 Frigidaire Oven Light Socket |
| 15 | 316538904 Frigidaire Oven Lamp Light |
| 16 | 5304524341 Frigidaire Lens |
| 17 | RETAINER-GLASS |
| 18 | WCI 5303015453 |
| 18A | SHIELD-LATCH (NON-ILLUSTRATED) |
| 19 | WCI 5303131357 |
| 20 | WCI 3203218 |
| 20A | WCI 08013188 |
| 21 | SPACER-BODYSIDE, (8) |
| 22 | SWITCH-LATCH |
| 22A | STUD SPACER (2) (NON-ILLUSTRATED) |
| 23 | FSTNR-PUSH ON |
| 24 | SHIELD-LATCH |
| 25 | WCI 3131313 |
| 26 | WCI 08067757 |
| 27 | 5303284616 Frigidaire Range Bulb Clip Thermostat |
| 28 | CLIP-WIRE |
| 29 | 3051162 Frigidaire Oven Range Front Broiler Drawer Glide |
| 33 | SHIELD, REAR WALL |
| 35 | 316542102 Frigidaire Flue Gasket |
| 36 | WCI 3131931 |
| 38 | WCI 316014301 |
| 39A | WCI 08067961 |
| 39 | 5304515659 Frigidaire Oven Power Cord |
| 40 | WCI 3200836 |
| 41 | WCI 3131570 |
| 42 | SHIELD-HEAT UPPER |
| 43 | 316282700 Frigidaire Oven Screw |
| 44 | 3131903 Frigidaire Door/Drawer Bumper |
| 45 | WCI 08068018 |
| 49 | 3205821 Frigidaire Clip |
| 53A | 08067973 Frigidaire 0 Insulation |
| 53 | SHIELD-FRONT |
| 58A | INSULATION, OVEN WRAPPER |
| 58B | WCI 316054200 |
| 58C | INSULATION, OVEN TOP |
| 72 | COVER-LIGHT/SWITCH ROD |
