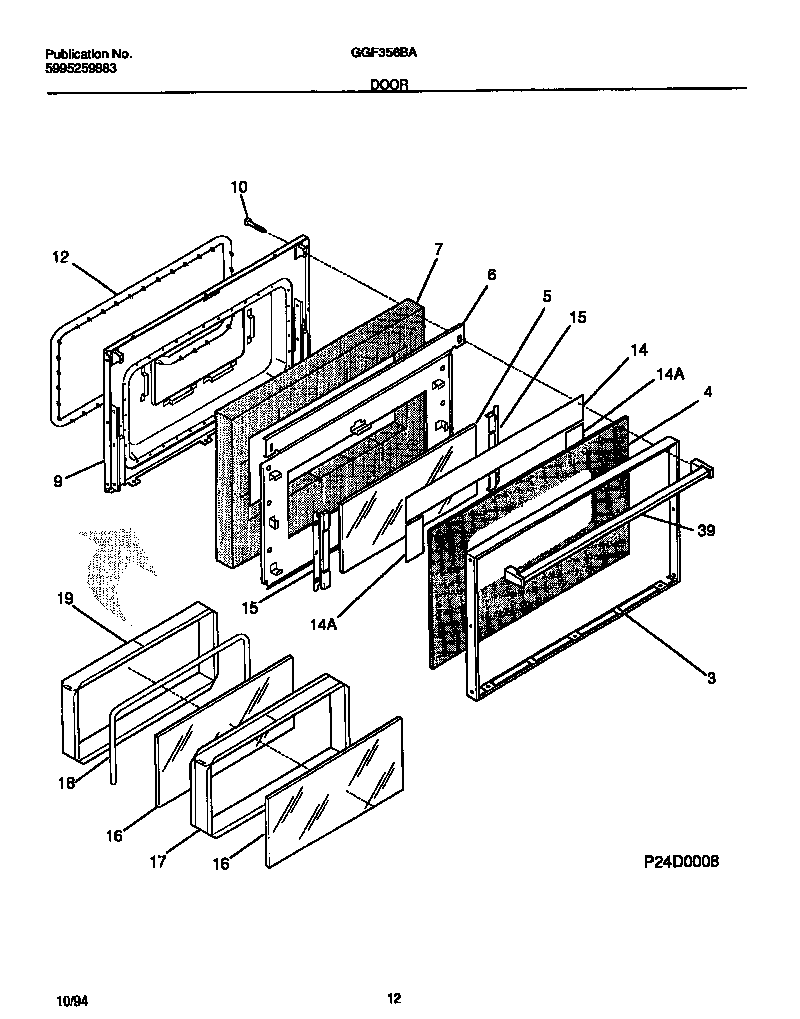

GGF356BAWB 06 – DOOR

GGF356BAWB 06 – DOOR

Written by

in

GGF356BAWB 06 – DOOR

Products

PositionProduct
*43245RIVET-POP, WARING-PLATE
*43244WCI 316065300
*43242SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*43243WCI 5303269859
*432465303300265 Frigidaire Oven Screw
3WCI 5303209518
4GLASS-OVEN DOOR, BLACK, OUTER
5GLASS-OVEN DOOR, INNER
6SHIELD-INSULATION
7INSULATION-OVEN DOOR
9WCI 316066603
10WCI 5303280308
125303131601 Frigidaire Oven Seal
14REFLECTOR, ALUMINUM FOIL
14A5303208655 Frigidaire Reflector Assembly
15BRACKET-GLASS MTG
16GLASS-OVEN DOOR, HEAT BARRIER, (2)
17WCI 5303209517
18SEAL-ROPE, 0.25 DIA
19WCI 316067600
39HANDLE
