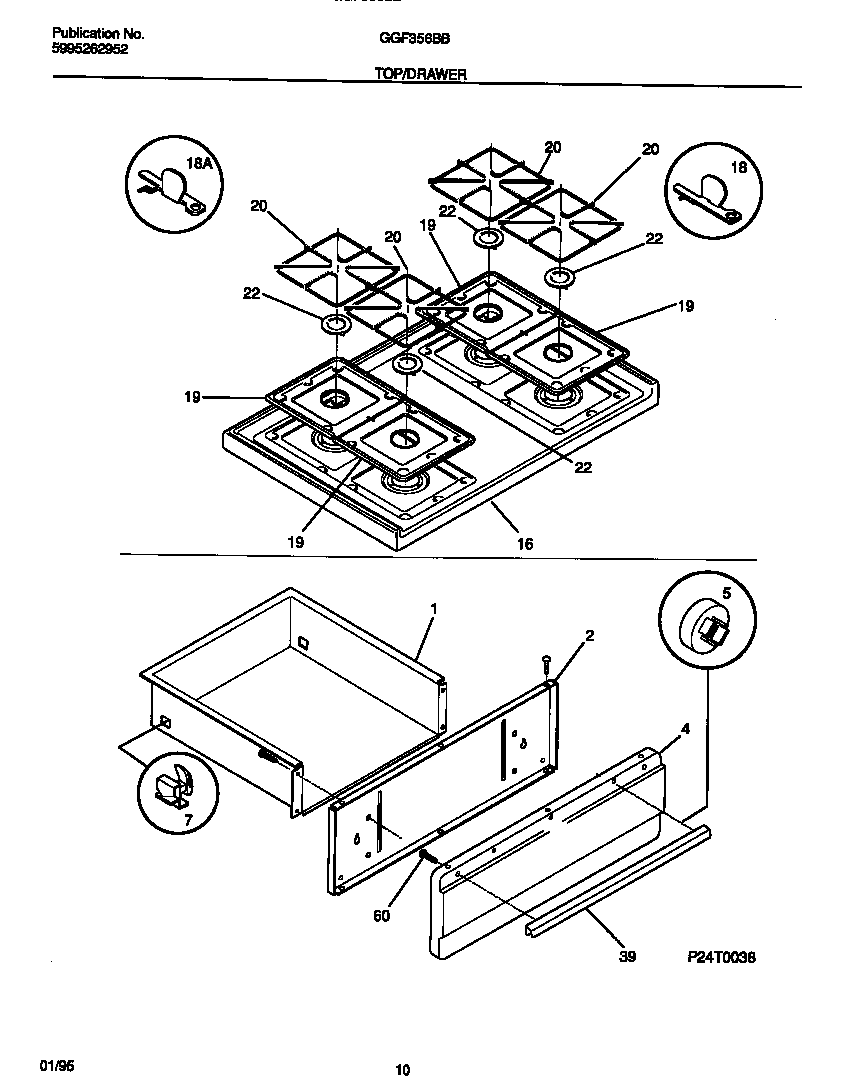

GGF356BBDA 05 – TOP/DRAWER

GGF356BBDA 05 – TOP/DRAWER

Written by

in

GGF356BBDA 05 – TOP/DRAWER

Products

PositionProduct
*71409WCI 5303281584
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316056206
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5FSTNR, SPACER (2)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16BGUSSET-MTG (LH) (NON-ILLUSTRATED)
16AGUSSET-MTG (RH) (NON-ILLUSTRATED)
16WCI 316010409
18BRACKET-HINGE,MAIN TOP LH
18131243700 Frigidaire Screw
18BRACKET-HINGE,MAIN TOP RH
19WCI 316011401
20WCI 5303269632
22316010901 Frigidaire Burner Cap P1
39HANDLE-DRAWER, ALMOND
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
