GGF356BBDD 04 – BODY

GGF356BBDD 04 – BODY

Written by

in

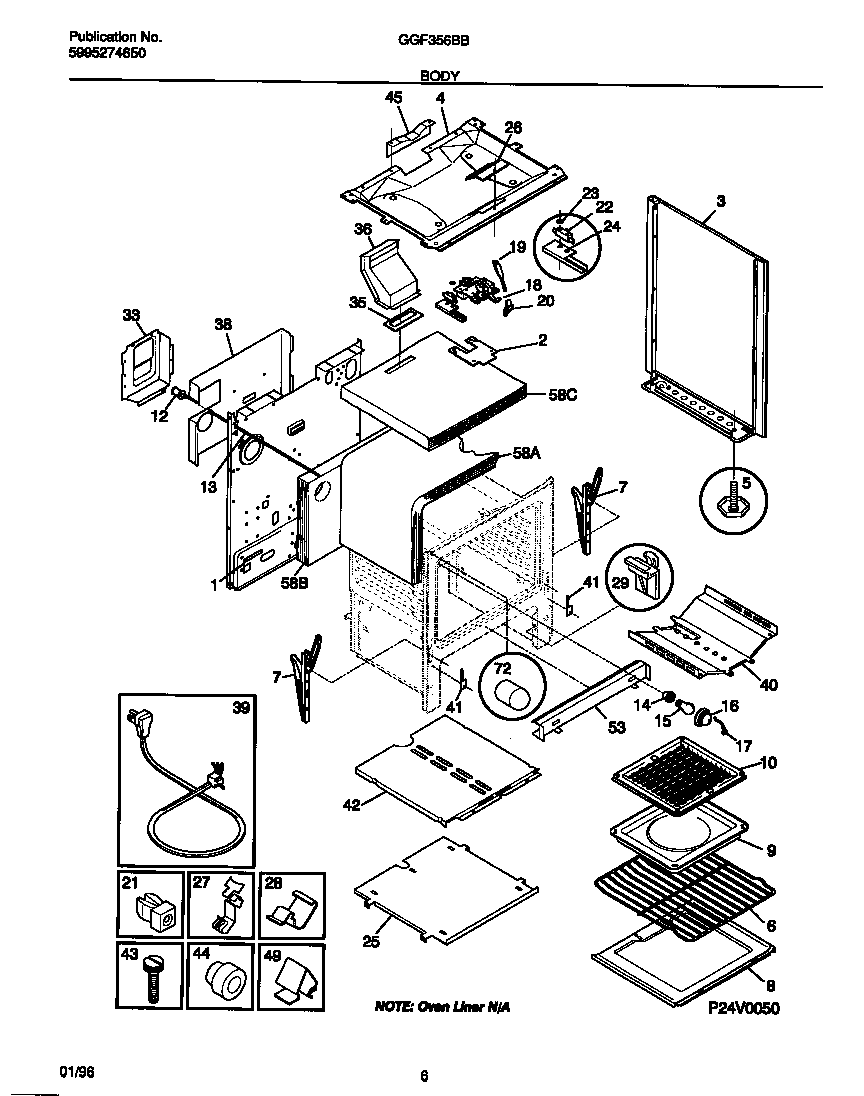

GGF356BBDD 04 – BODY

Products

PositionProduct
*43845HARNESS-WIRING, MAIN
*43844WCI 5303281584
1WCI 316029410
2SHIELD-OVN TOP
3WCI 316081007
3WCI 316081006
3ASHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3BWCI 08067992
4WCI 316011912
5BWCI 3934058
5C316116000 Frigidaire Screw
5DNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5ASCREW-LEVELING
6316067902 Frigidaire Oven Rack
7AWCI 316007002
7B3203010 Frigidaire Clip
8ABTTM-OVEN
8B316064600 Frigidaire Oven Support
9WCI 316073800
10WCI 3205234
12WCI 316027702
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18AWCI 5303015453
18BSHIELD-LATCH (NON-ILLUSTRATED)
19WCI 5303131357
20BWCI 08013188
20AWCI 3203218
21SPACER-BODYSIDE, (8)
22BSTUD SPACER (2) (NON-ILLUSTRATED)
22ASWITCH-LATCH
23FSTNR-PUSH ON
24SHIELD-LATCH
25WCI 3131313
26WCI 08067757
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
33SHIELD, REAR WALL
35316542102 Frigidaire Flue Gasket
36WCI 3131931
38WCI 316014301
39A5304515659 Frigidaire Oven Power Cord
39BWCI 08067961
40AWCI 3200836
40BSCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
41WCI 3131570
42SHIELD-HEAT UPPER
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
45WCI 08068018
493205821 Frigidaire Clip
53ASHIELD-FRONT
53B08067973 Frigidaire 0 Insulation
58INSULATION, OVEN TOP
58INSULATION, OVEN WRAPPER
58WCI 316054200
72COVER-LIGHT/SWITCH ROD
