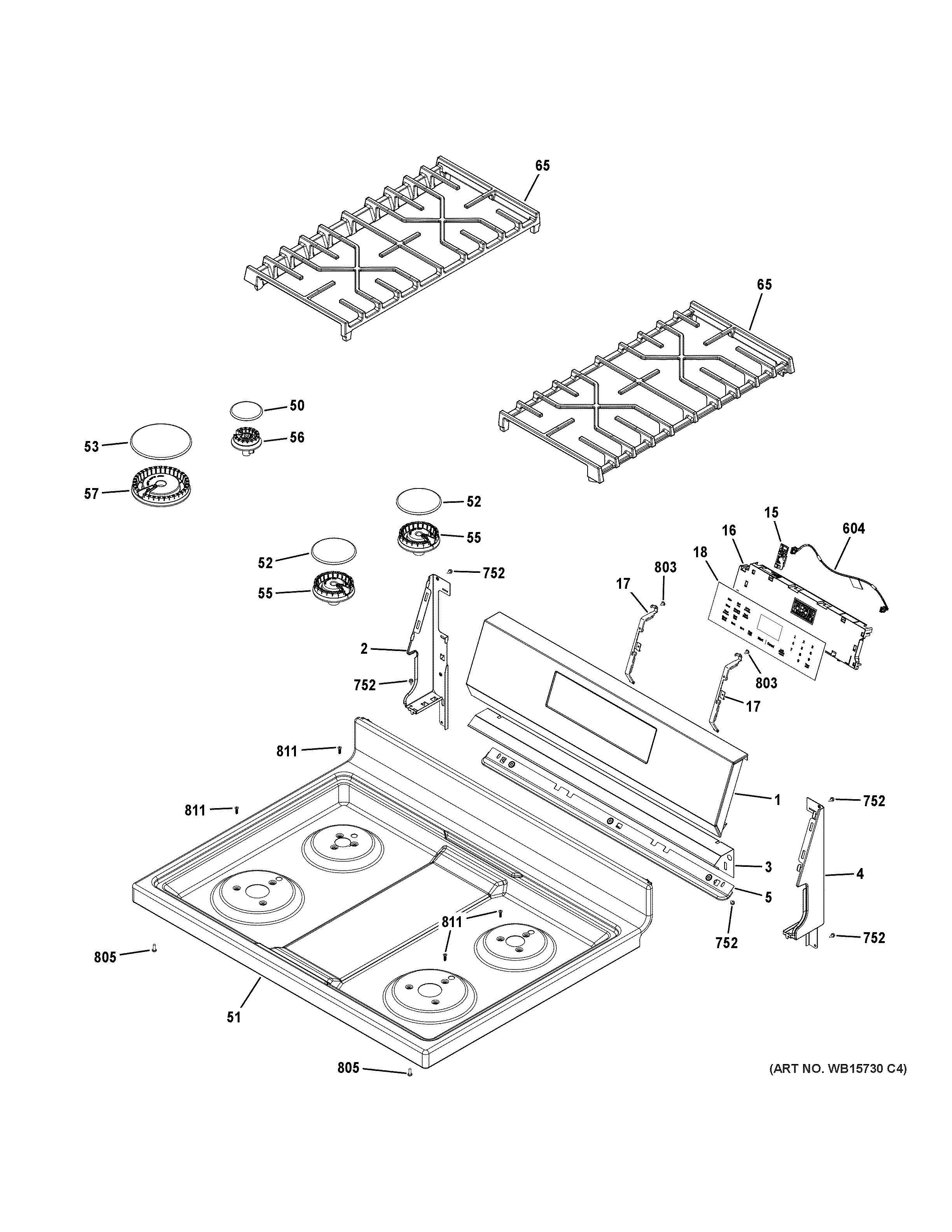

GGF400PV1WW CONTROL PANEL & COOKTOP

GGF400PV1WW CONTROL PANEL & COOKTOP

Written by

in

GGF400PV1WW CONTROL PANEL & COOKTOP

Products

PositionProduct
1CONTROL PANEL WHITE
2LH END PLATE- WHITE
3HEAT SHIELD
4RH END PLATE- WHITE
5EYEBROW-WHITE
15WB27X45808 GE Wi-Fi Bluetooth Combo Board
16OBC1 CONTROL (FLASHED)
17CONTROL BRACKET
18OVERLAY
50BURNER CAP SMALL V2
51MAINTOP
52BURNER CAP MEDIUM V2
53BURNER CAP XL V2
55WB16X24724 GE Oven Medium Burner
56WB16X24721 GE Oven Range Small Cooktop Burner V2
57WB16X24722 GE Oven Gas Range XL Surface Burner
65GRATE
604WIFI HARNESS
752WH2X930 GE Screw
803WB01X48946 GE Screw 8-18 AB Trt-15 3/8"
805WB01T10012 GE Oven Screw
811WB01X30054 GE Screw 6-32 OVT15 1/2"
