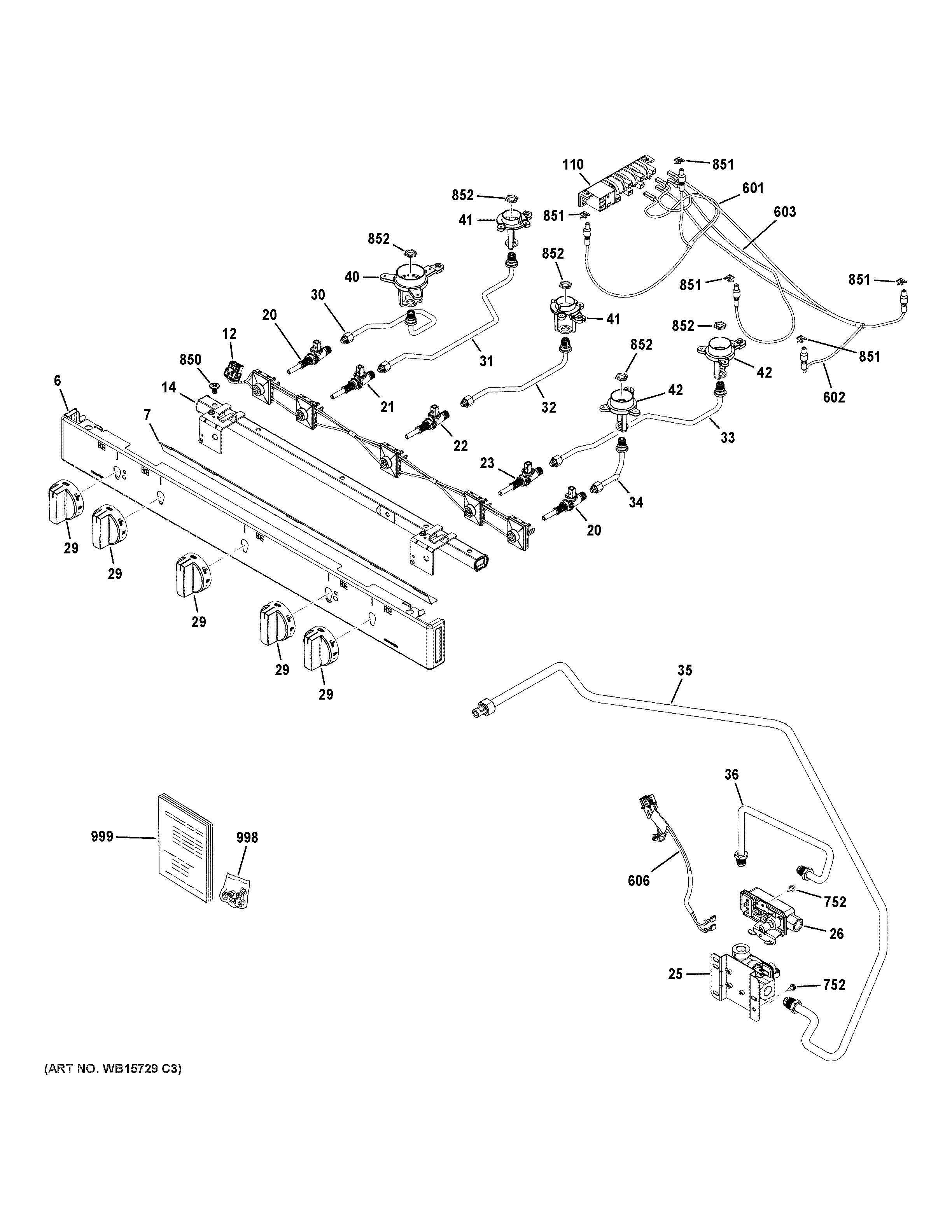

GGF500PV1ES GAS & BURNER PARTS

GGF500PV1ES GAS & BURNER PARTS

Written by

in

GGF500PV1ES GAS & BURNER PARTS

Products

PositionProduct
6MANIFOLD
7SHIELD PANEL
12SWITCH HARNESS
14MANIFOLD
20VALVE BURNER 270
21WB21X25979 GE Oven Burner Valve 270
22WB21X20471 GE Oven Burner Valve
23VALVE BURNER 270
25WB21X47323 GE Pressure Regulator
26VALVE SAFETY SINGLE ASM
29KNOB
30ORIFICE HOLDER LF
31ORIFICE HOLDER LR
32ORIFICE HOLDER CTR
33ORIFICE HOLDER RR
34ORIFICE HOLDER RF
35COOKTOP SUPPLY TUBE
36SAFETY VALVE SUPPLY TUBE
40WB02X24725 GE Oven Inlet XLV2
41WB02X24728 GE Range Small Injector
42WB02X24727 GE Oven Right Front Burner Jet with Electrode
110SPARK MODULE
601WB18X47343 GE Harness Left Front/Left Rear
602WB18X47339 GE RF/RR Harness HV
603WB18X47337 GE Harness Center
606SAFETY VALVE HARNESS
752WH2X930 GE Screw
850WB01K10067 GE Oven Screw 1/4" HD 20
851WB02X24976 GE Oven Igniter Clip V2
852WB01K10037 GE Oven Economic Nut
998NATURAL GAS HIGH ALTITUDE CONVERSION KIT
998WB28X47009 GE Natural Gas Conversion Kit
998WB28X47008 GE LP Conversion Kit
998WB28X47006 GE LP High Altitude Conversion Kit
999PM INSTALL INSTRUCTIONS
999PM MINI MANUAL AND WIRING
999PM OWNERS MANUAL
