GGF500PV2BB DOOR

GGF500PV2BB DOOR

Written by

in

GGF500PV2BB DOOR

Products

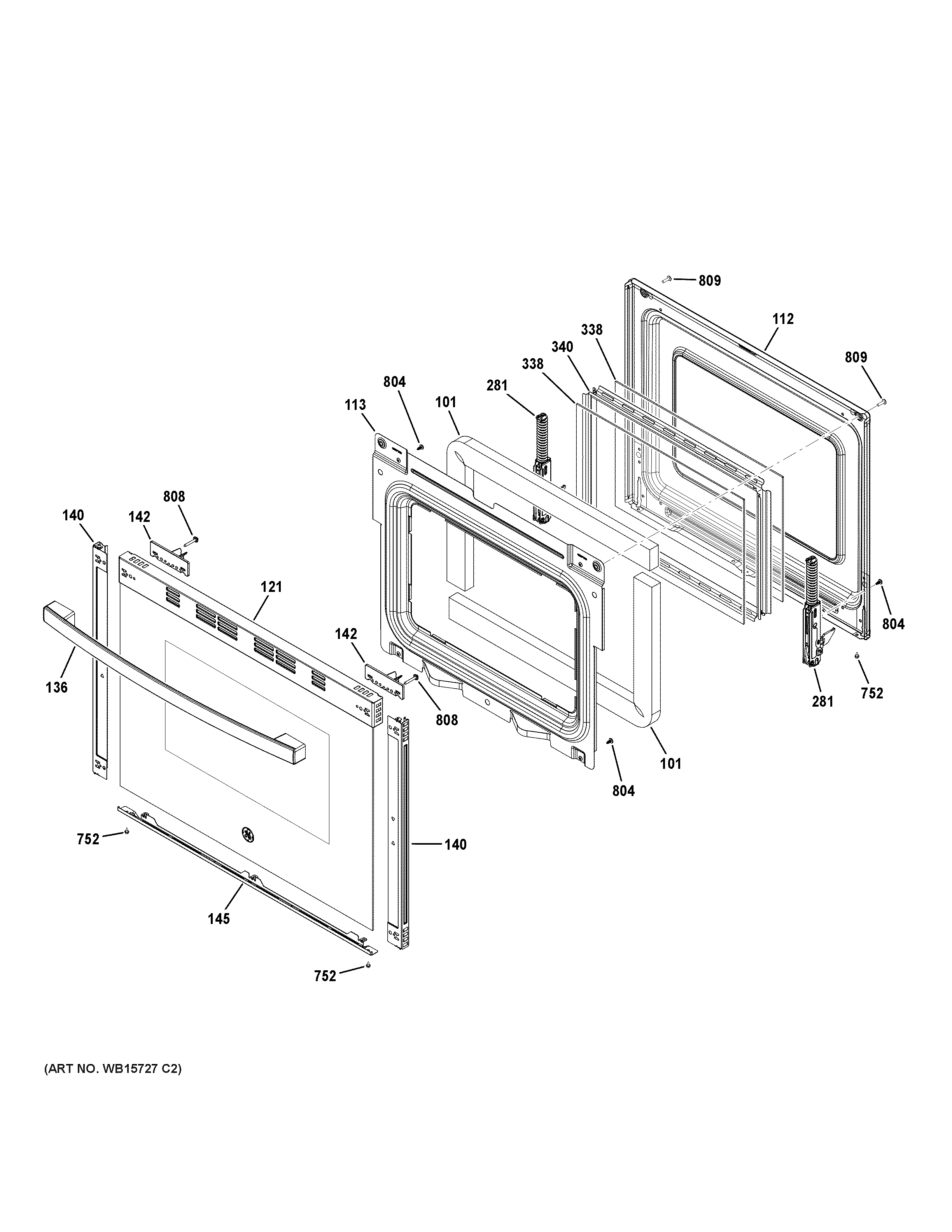

PositionProduct
101DOOR INSULATION
112WB56X47297 GE Oven Door Liner
113INSULATION RETAINER
121OUTER DOOR GLASS AND TRIM
136HANDLE-BLACK
140OUTER DOOR SIDE TRIM-BLACK
142WB02X47307 GE Handle Spacer
145OUTER DOOR BTM TRIM-BLACK
281HINGE
338WB56X47992 GE Inner Door Glass
340WINDOW FRAME
752WH2X930 GE Screw
804SCR 10-32 TRWT-20 1/2 S
808WH02X24116 GE Screw 10-32 GX 1.309 HWX
809WB01X34649 GE Screw 10-18 Pl Tread 20 3/4 S
