GGF600AV2BB BODY PARTS

GGF600AV2BB BODY PARTS

Written by

in

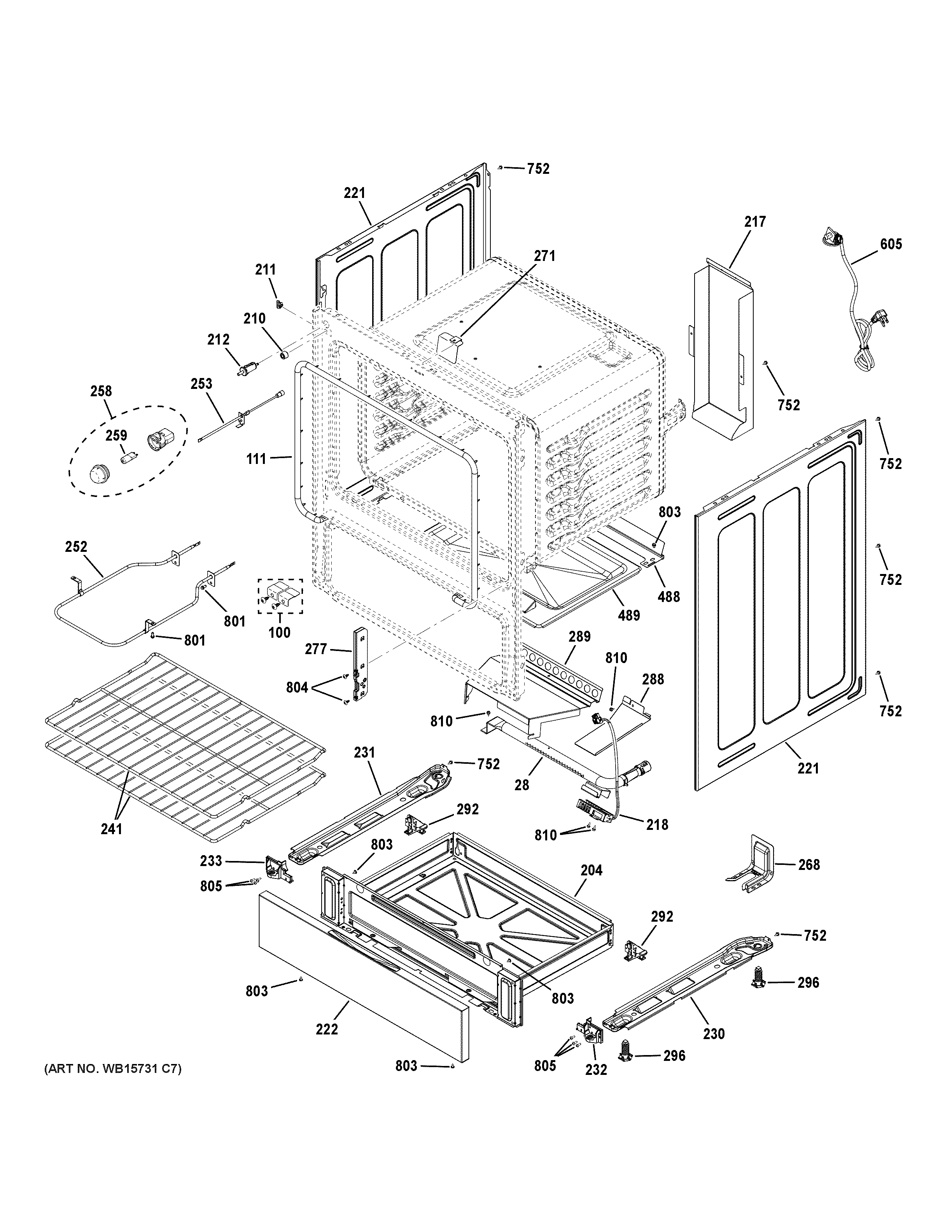

GGF600AV2BB BODY PARTS

Products

PositionProduct
28BAKE BURNER ASSEMBLY
100CAVITY CHIP COVER KIT
111DOOR GASKET
204DRAWER BODY
210BUMPER
211GROMMET
212WB24X27550 GE Oven Plunger Switch
217TERMINAL COVER
218GLOWBAR
221SIDE PANEL-BLACK
222DRAWER PANEL-BLACK
230RAIL BASE RH
231RAIL BASE LH
232WB02X47103 GE Drawer Support
233WB02X47107 GE Left Drawer Support
241RACK
252BROIL ELEMENT
253OVEN TEMP SEMSOR
258WB25X42688 GE Halogen Lamp Assembly
259WB25T10102 GE Oven Top-Mounted Halogen Bulb G9
268ANTI-TIP BRACKET
271LATCH COVER
277HINGE RECEIVER
288SPILL SHIELD
289SPREADER FLAME BAKE
292REAR DRAWER GUIDE
296LEVELING LEG
488VENT TRIM-BACK
489OVEN CAVITY BOTTOM
605WB18X47336 GE Power Cord
752WH2X930 GE Screw
801SCREW
803WB01X48946 GE Screw 8-18 AB Trt-15 3/8"
804SCR 10-32 TRWT-20 1/2 S
805WB01X34726 GE Screw 8-18 Ab Pnt-20
810WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
