GGF600AV2WW DOOR

GGF600AV2WW DOOR

Written by

in

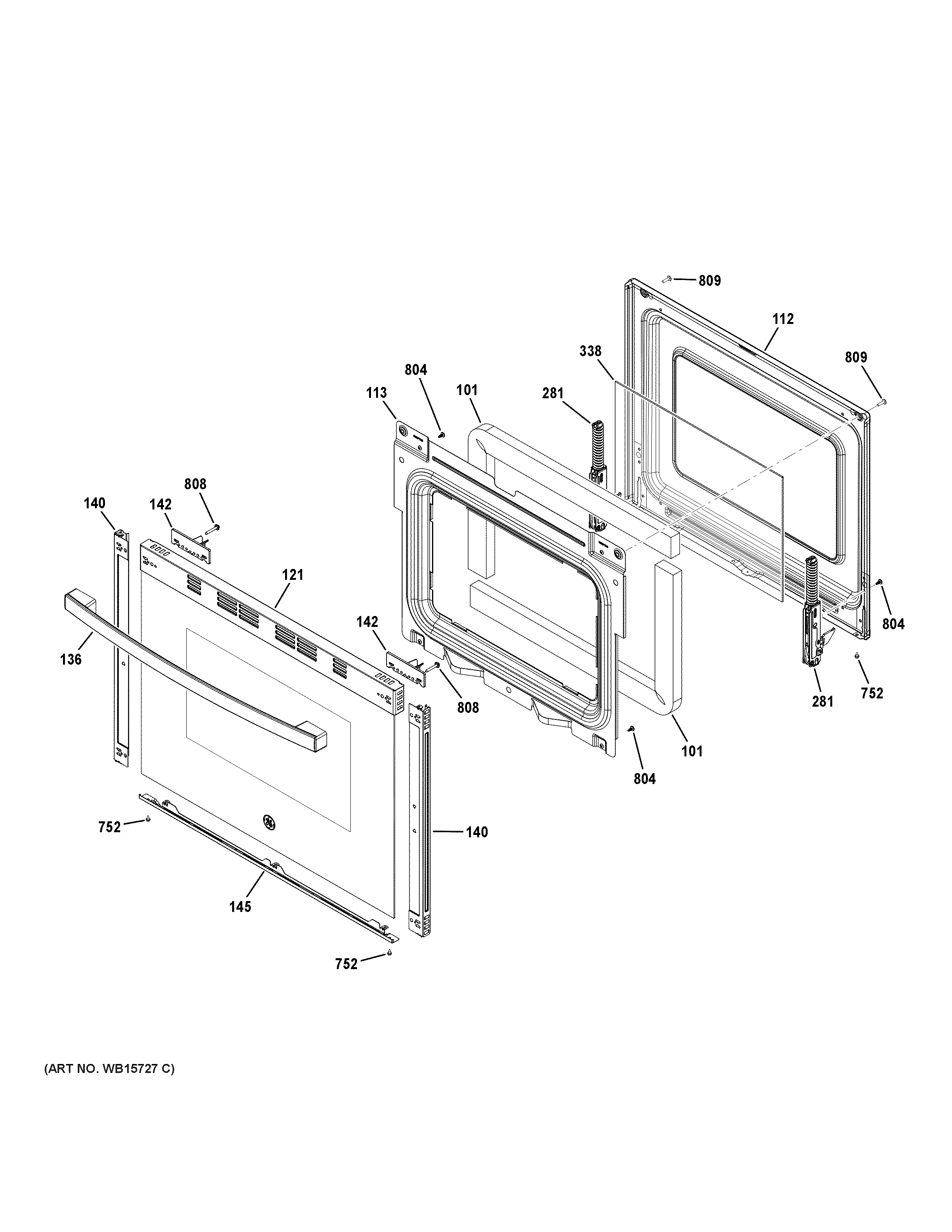

GGF600AV2WW DOOR

Products

PositionProduct
101DOOR INSULATION
112WB56X47297 GE Oven Door Liner
113OVEN DOOR LINER
121OUTER DOOR GLASS AND TRIM
136WB15X47292 GE White Handle
140OUTER DOOR SIDE TRIM-WHITE
142WB02X47307 GE Handle Spacer
145OUTER DOOR BTM TRIM-WHITE
281WB10X47305 GE Handle
338WB56X47992 GE Inner Door Glass
752WH2X930 GE Screw
804SCR 10-32 TRWT-20 1/2 S
808WH02X24116 GE Screw 10-32 GX 1.309 HWX
809WB01X34649 GE Screw 10-18 Pl Tread 20 3/4 S
