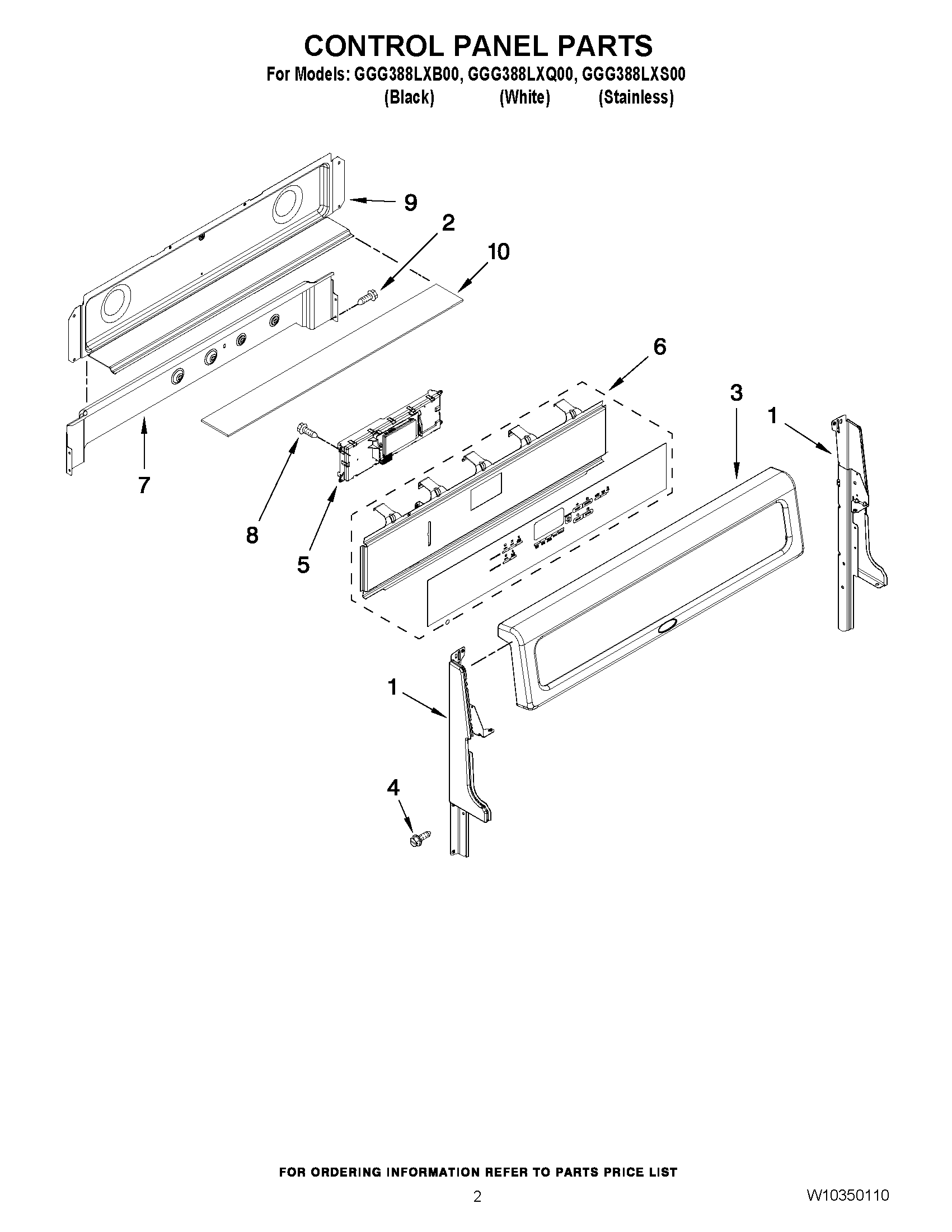

GGG388LXB00 02 – CONTROL PANEL PARTS

GGG388LXB00 02 – CONTROL PANEL PARTS

Written by

in

GGG388LXB00 02 – CONTROL PANEL PARTS

Products

PositionProduct
1SUPPORT, BACKGUARD (BLACK, RIGHT)
1W10319109 Whirlpool Endcap Panel
1W10319112 Whirlpool Panel Endcap
1W10319110 Whirlpool Endcap Panel
2SCREW
3Panel, Control (Black)
3Panel, Control (Stainless)
3Panel, Control (White)
4SCREW (BLACK)
5ELECTRIC, CONTROL
6W10321800 Whirlpool Dishwasher Membrane Switch
6WPW10321798 Whirlpool Membrane Switch
7W10278697 Whirlpool Vent Shield Assembly
8SCREW
9W10296773 Whirlpool Rear Cover
10W11684874 Whirlpool Insulation
