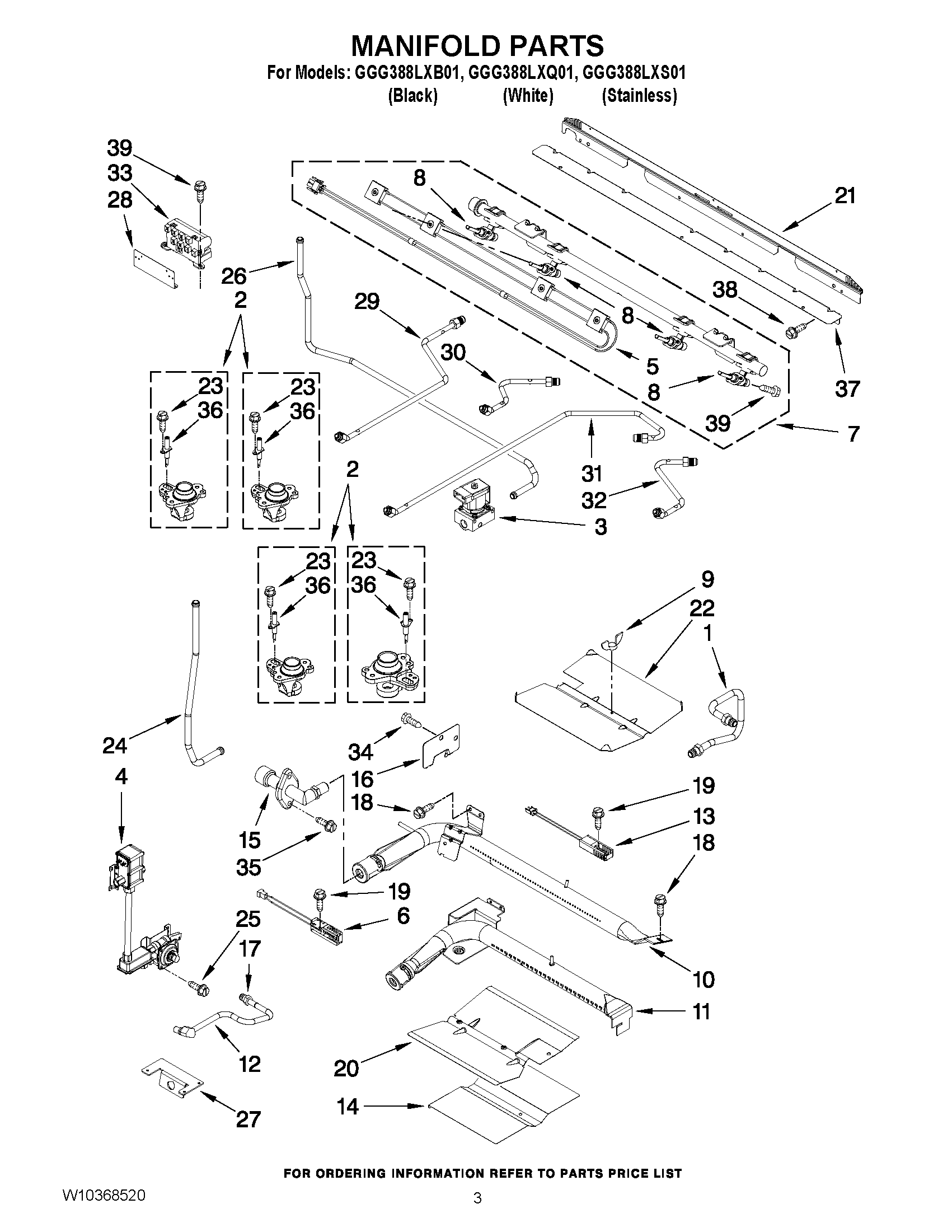

GGG388LXB01 03 – MANIFOLD PARTS

Products

Position	Product
NI	WPW10311058 Whirlpool Orifice Spud
NI	W10324646 Whirlpool Insulation
1	W10319002 Whirlpool Gas Tubing
2	HOLDER, ORIFICE (LF,RR-9.2K)
2	HOLDER, ORIFICE (LR & RR, 5K)
2	WPW10407681 Whirlpool Orifice Holder
3	VALVE, SHUT OFF
4	WPW10518493 Whirlpool Gas Valve
5	WPW10204717 Whirlpool Wire Harness
6	WPW10324738 Whirlpool Oven Igniter
7	WPW10204706 Whirlpool Manifold
8	WPW10206288 Whirlpool Valve Burner
8	VALVE-BRNR
9	NUT, WING
10	W11245221 Whirlpool Broiler Burner
11	W11174122 Whirlpool Oven Burner
12	W10342662 Whirlpool Gas Tubing
12	W10342661 Whirlpool Gas Tubing
13	IGNITOR, BAKE
14	W10298865 Whirlpool Heat Shield Assembly
15	W10292293 Whirlpool Fitting
16	COVER, IGNITOR WIRE
17	NUT, MOUNTING
18	SCREW
19	SCREW
20	W10272528 Whirlpool Burner Baffle
21	WPW10276470 Whirlpool Dishwasher Support Bracket
22	BAFFLE, BROIL BURNER
23	WP8273062 Whirlpool Screw
24	W10295050 Whirlpool Gas Tubing Assembly
25	SCREW
26	W10295055 Whirlpool Gas Tubing
27	BRACKET, ORIFICE
28	W10319059 Whirlpool Support Bracket
29	TUBING, LR
30	TUBING, LF
31	TUBING, RR
32	TUBING, RF
33	MODULE, SPARK
34	SCREW
35	SCREW
36	WPW10110378 Whirlpool Surface Igniter
37	WPW10276466 Whirlpool Support Bracket
38	SCREW
39	Screw
