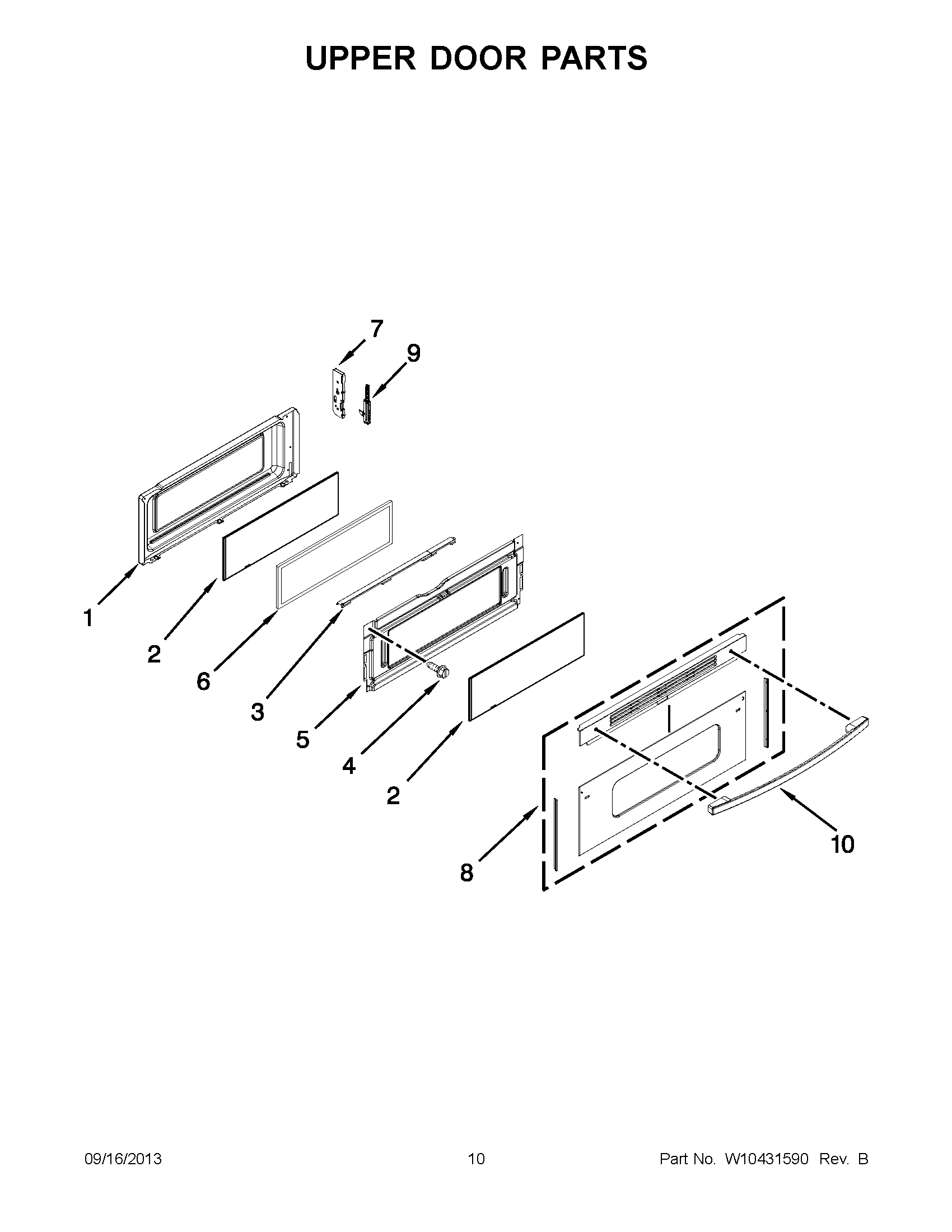

GGG388LXQ02 06 – UPPER DOOR PARTS

GGG388LXQ02 06 – UPPER DOOR PARTS

Written by

in

GGG388LXQ02 06 – UPPER DOOR PARTS

Products

PositionProduct
1LINING, DOOR
2W11132120 Whirlpool Glass Door
3WPW10272708 Whirlpool Window Frame
4WPW10292297 Whirlpool Screw
5RETAINER, INSUL.
6WPW10321271 Whirlpool Insulation Assembly
7W10647259 Whirlpool Hinge Receiver
8ASSEMBLY, DOOR GLASS (STAINLESS)
8ASSEMBLY, DOOR GLASS (WHITE)
8ASSEMBLY, GLASS DOOR (BLACK)
9HINGE, DOOR (LEFT)
9HINGE, DOOR (RIGHT)
10W10817434 Whirlpool Door Handle
10WPW10323589 Whirlpool Door Handle
10WPW10144883 Whirlpool Door Handle
