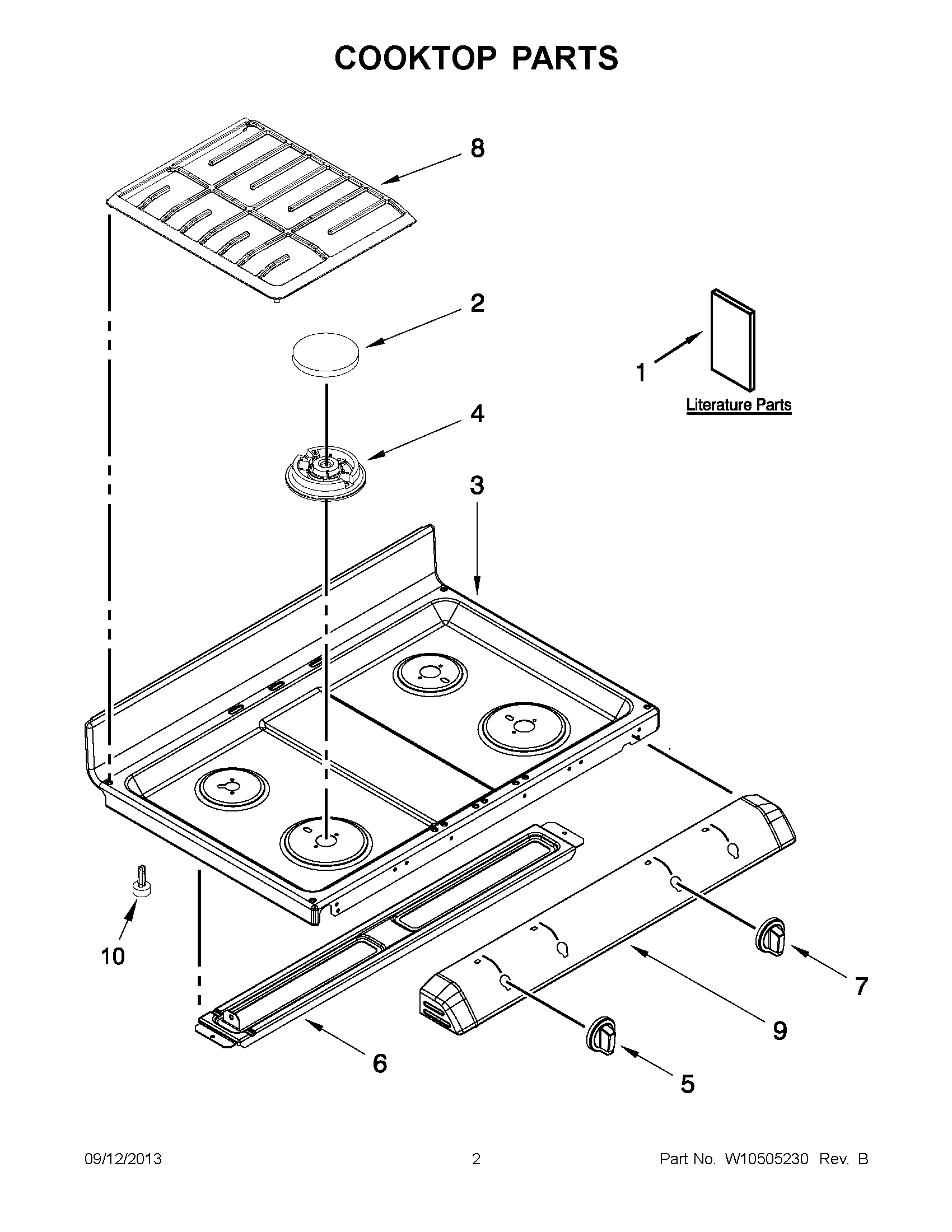

GGG388LXQ03 02 – COOKTOP PARTS

GGG388LXQ03 02 – COOKTOP PARTS

Written by

in

GGG388LXQ03 02 – COOKTOP PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1OWNERS MANUAL
1TECH SHEET BROCHURE, TIPS (SAFE COOKING)
1INSTRUCTIONS, INSTALLATION
2WPW10244447 Whirlpool Burner Cap
2WPW10244448 Whirlpool Burner Cap
3W10336322 Whirlpool Cooktop
3COOKTOP (BLACK)
4WPW10406878 Whirlpool Burner Base (16K)
4WPW10406243 Whirlpool Burner Head Auxiliary 6K
4WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
5Knob, AccuSimmer (Black)
5KNOB, (ACCUSIMMER)
5WPW10415451 Whirlpool Burner Knob
6W10518258 Whirlpool Mounting Bracket
7Knob, Valve (3)
7KNOB, VALVE (BLACK)
7KNOB
8WPW10338214 Whirlpool Grate Kit
8W10338215 Whirlpool Grate Kit
9PANEL, MANIFOLD (BLACK)
9PANEL, MANIFOLD (STAINLESS)
9PANEL, MANIFOLD (WHITE)
10GLIDE, MAIN TOP
