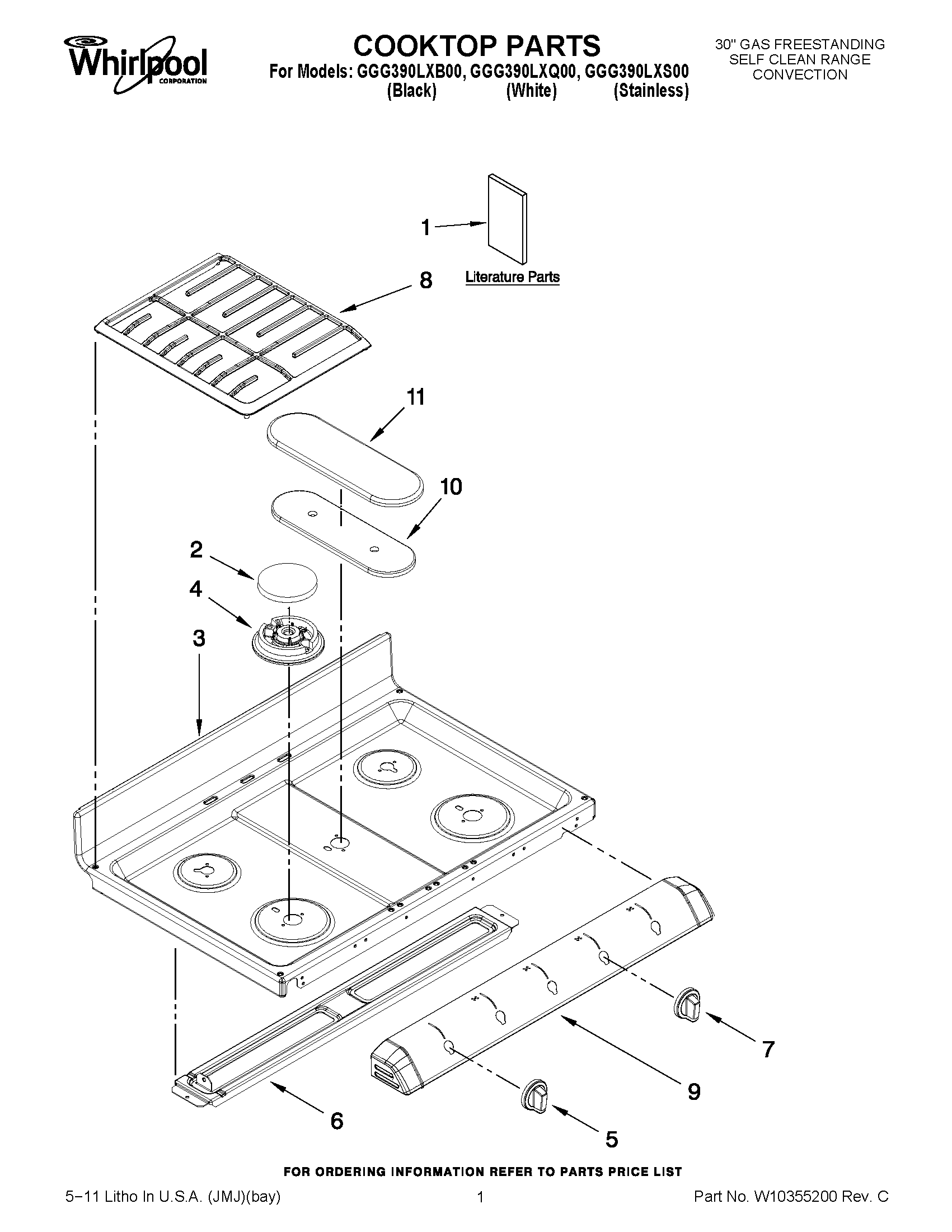

GGG390LXB00 01 – COOKTOP PARTSadmin2025-04-26T12:23:02+00:00GGG390LXB00 01 – COOKTOP PARTS
Products
| Position | Product |
|---|
| 1 | SAFER COOKING TIPS (ENGLISH |
| 1 | TECH SHEET |
| 1 | OWNERS MANUAL |
| 1 | INSTRUCTIONS, INSTALLATION |
| 2 | KIT, BURNER CAP (GRAY) |
| 2 | WPW10299233 Whirlpool Burner Cap |
| 3 | W10336331 Whirlpool Cooktop |
| 3 | W10336330 Whirlpool Cooktop |
| 4 | WPW10406243 Whirlpool Burner Head Auxiliary 6K |
| 4 | WPW10406797 Whirlpool Range Burner Base (12K & 9.2K) |
| 4 | WPW10336094 Whirlpool Burner Assembly Top |
| 4 | WPW10406878 Whirlpool Burner Base (16K) |
| 5 | Knob, AccuSimmer (Black) |
| 5 | KNOB, (ACCUSIMMER) |
| 5 | WPW10415451 Whirlpool Burner Knob |
| 6 | BRACKET, COOKTOP SUPPORT |
| 7 | Knob, Valve (3) |
| 7 | KNOB, VALVE (BLACK) |
| 7 | KNOB |
| 8 | WPW10338214 Whirlpool Grate Kit |
| 8 | W10338215 Whirlpool Grate Kit |
| 9 | PANEL, MANIFOLD (STAINLESS) |
| 9 | PANEL, MANIFOLD (WHITE) |
| 9 | PANEL, MANIFOLD (BLACK) |
| 10 | WPW10333445 Whirlpool Burner Base |
| 11 | WPW10171140 Whirlpool Burner Cap |
| 11 | W10171137 Whirlpool Burner Cap |
