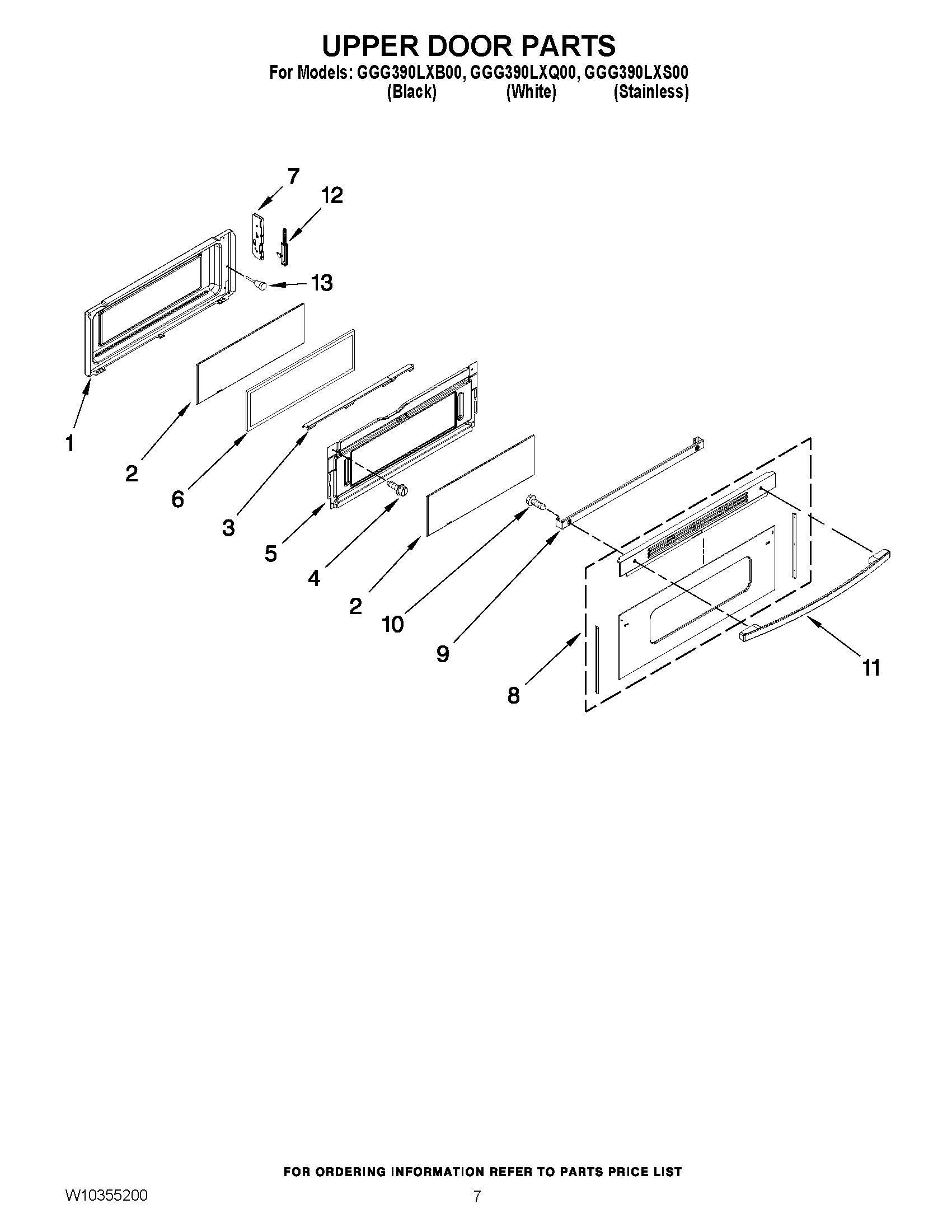

GGG390LXB00 05 – UPPER DOOR PARTS

Products

Position	Product
1	LINING, DOOR
2	W11132120 Whirlpool Glass Door
3	WPW10272708 Whirlpool Window Frame
4	WPW10292297 Whirlpool Screw
5	RETAINER, INSUL.
6	WPW10321271 Whirlpool Insulation Assembly
7	W10277006 Whirlpool Hinge Receiver
8	ASSEMBLY, DOOR GLASS (STAINLESS)
8	ASSEMBLY, DOOR GLASS (WHITE)
8	ASSEMBLY, GLASS DOOR (BLACK)
9	WPW10294695 Whirlpool Mounting Bracket
10	WPW10317886 Whirlpool Screw
11	W10817434 Whirlpool Door Handle
11	WPW10323589 Whirlpool Door Handle
11	WPW10144883 Whirlpool Door Handle
12	HINGE, DOOR (RIGHT)
12	HINGE, DOOR (LEFT)
13	4448520 Whirlpool Oven Bumper
