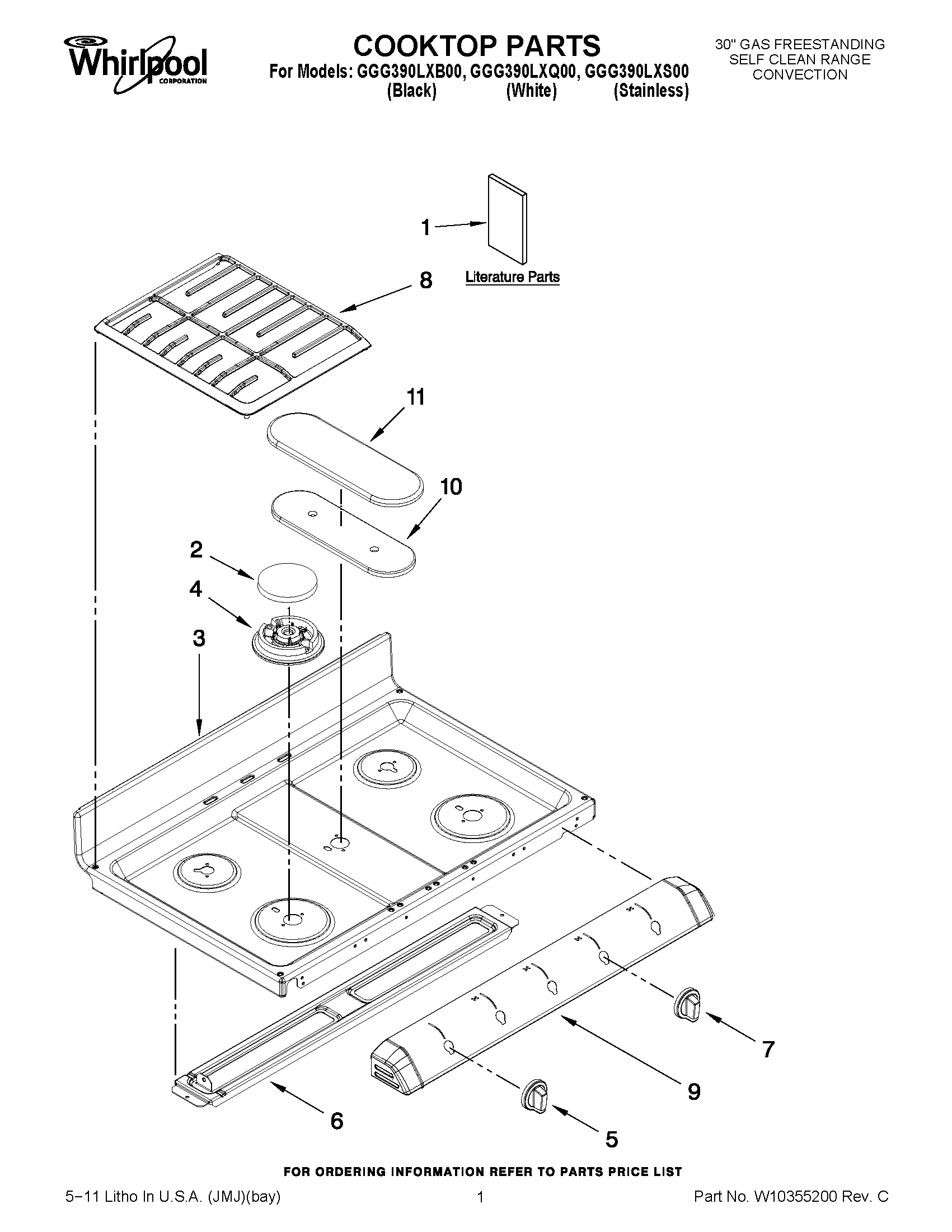

GGG390LXQ00 01 – COOKTOP PARTS

GGG390LXQ00 01 – COOKTOP PARTS

Written by

in

GGG390LXQ00 01 – COOKTOP PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1TECH SHEET
1OWNERS MANUAL
1INSTRUCTIONS, INSTALLATION
2KIT, BURNER CAP (GRAY)
2WPW10299233 Whirlpool Burner Cap
3W10336331 Whirlpool Cooktop
3W10336330 Whirlpool Cooktop
4WPW10406243 Whirlpool Burner Head Auxiliary 6K
4WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
4WPW10336094 Whirlpool Burner Assembly Top
4WPW10406878 Whirlpool Burner Base (16K)
5Knob, AccuSimmer (Black)
5KNOB, (ACCUSIMMER)
5WPW10415451 Whirlpool Burner Knob
6BRACKET, COOKTOP SUPPORT
7Knob, Valve (3)
7KNOB, VALVE (BLACK)
7KNOB
8WPW10338214 Whirlpool Grate Kit
8W10338215 Whirlpool Grate Kit
9PANEL, MANIFOLD (STAINLESS)
9PANEL, MANIFOLD (WHITE)
9PANEL, MANIFOLD (BLACK)
10WPW10333445 Whirlpool Burner Base
11WPW10171140 Whirlpool Burner Cap
11W10171137 Whirlpool Burner Cap
