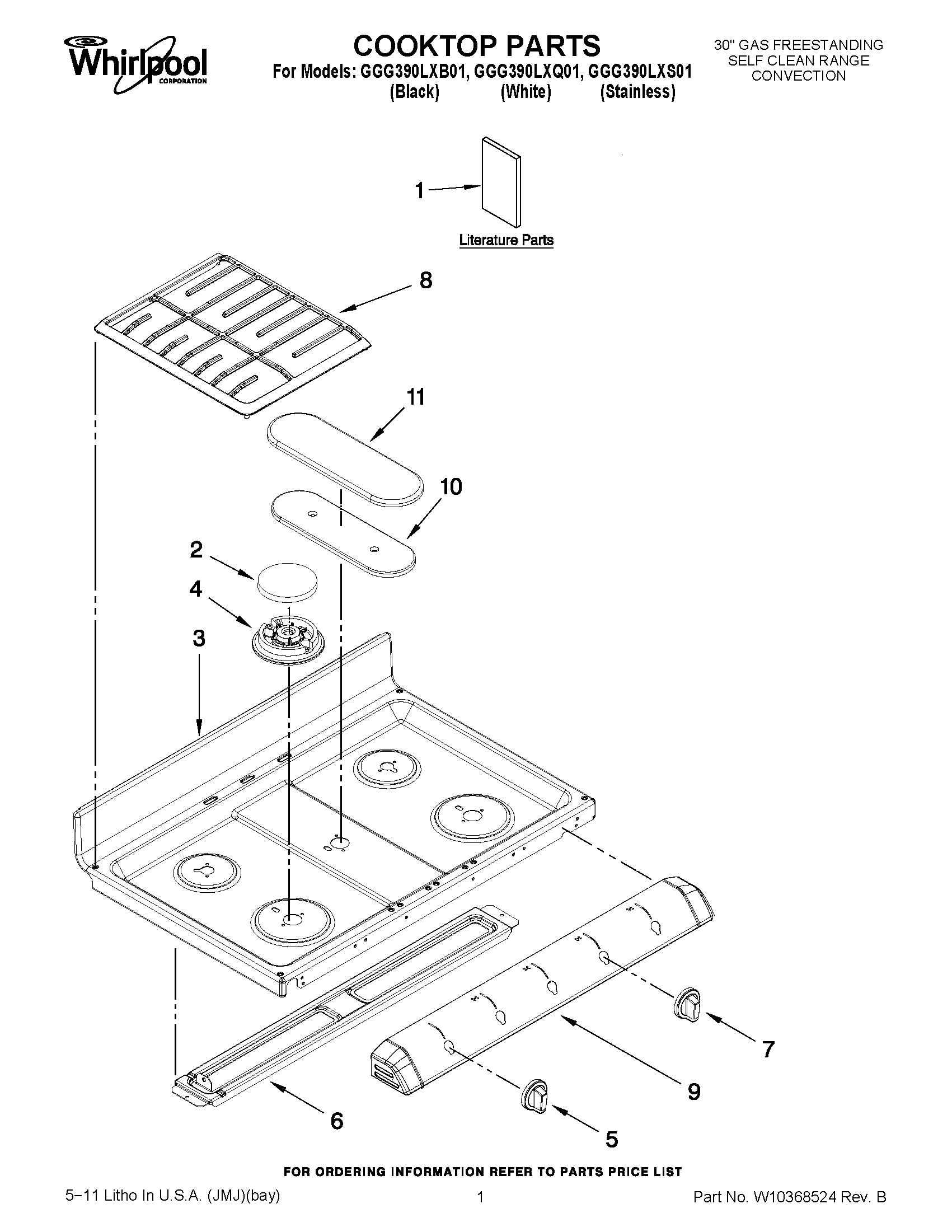

GGG390LXQ01 01 – COOKTOP PARTS
Written by
in
GGG390LXQ01 01 – COOKTOP PARTS
Products
Position
Product
1
SAFER COOKING TIPS (ENGLISH
1
OWNERS MANUAL
1
INSTRUCTIONS, INSTALLATION
1
TECH SHEET
2
WPW10299233 Whirlpool Burner Cap
2
W10299239 Whirlpool Mounting Kit 4V Stamp Westone
3
W10336331 Whirlpool Cooktop
3
W10336330 Whirlpool Cooktop
4
WPW10406243 Whirlpool Burner Head Auxiliary 6K
4
WPW10336094 Whirlpool Burner Assembly Top
4
WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
4
WPW10406878 Whirlpool Burner Base (16K)
5
WPW10415451 Whirlpool Burner Knob
5
Knob, AccuSimmer (Black)
5
KNOB, (ACCUSIMMER)
6
BRACKET, COOKTOP SUPPORT
7
KNOB
7
KNOB, VALVE (BLACK)
7
Knob, Valve (3)
8
W10338215 Whirlpool Grate Kit
8
WPW10338214 Whirlpool Grate Kit
9
PANEL, MANIFOLD (BLACK)
9
PANEL, MANIFOLD (WHITE)
9
PANEL, MANIFOLD (STAINLESS)
10
WPW10333445 Whirlpool Burner Base
11
WPW10171140 Whirlpool Burner Cap
11
W10171137 Whirlpool Burner Cap
←
