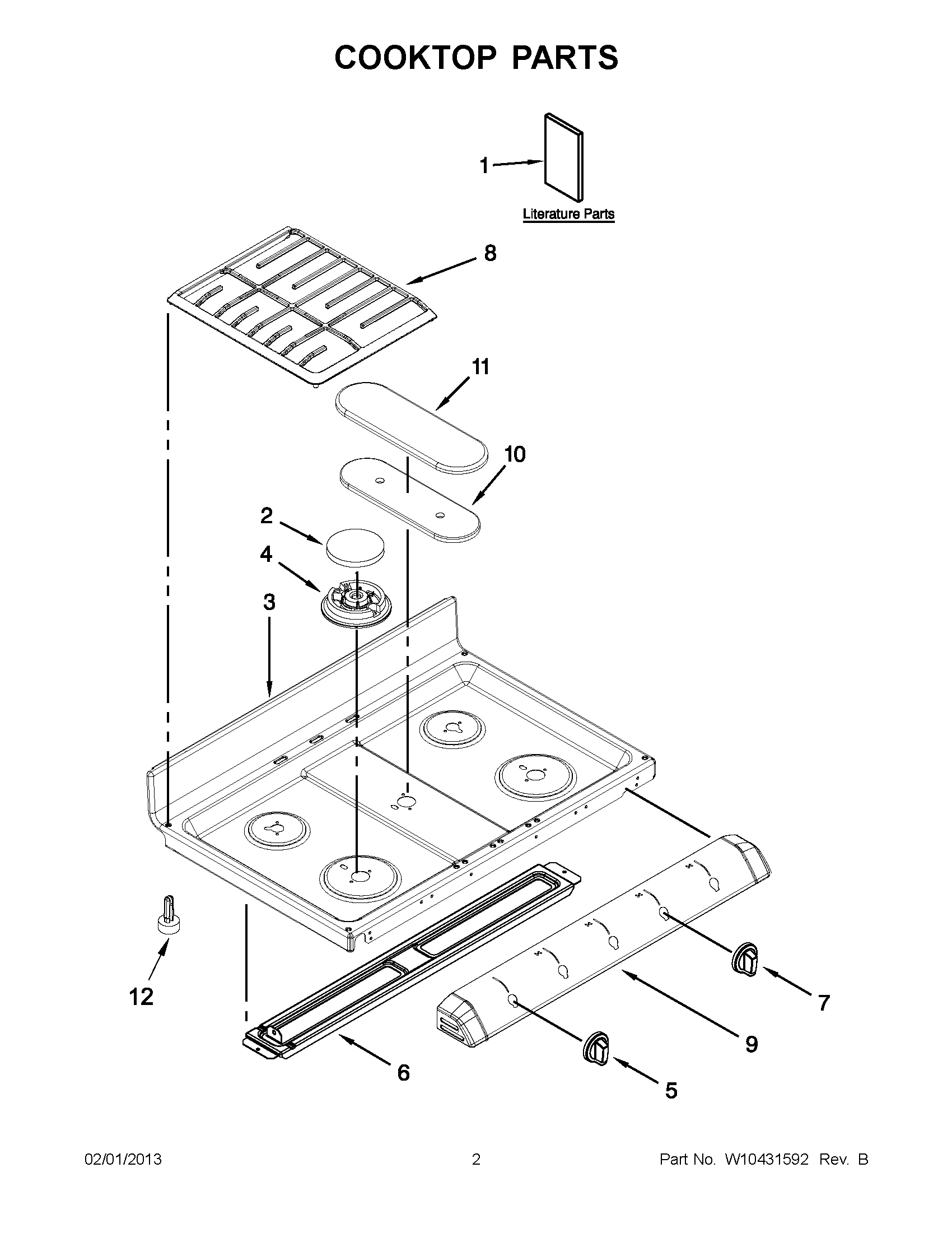

GGG390LXQ02 01 – COOKTOP PARTS

Products

Position	Product
1	SAFER COOKING TIPS (ENGLISH
1	OWNERS MANUAL
1	INSTRUCTIONS, INSTALLATION
1	TECH SHEET
2	W10299239 Whirlpool Mounting Kit 4V Stamp Westone
2	WPW10299233 Whirlpool Burner Cap
3	W10336330 Whirlpool Cooktop
3	W10336331 Whirlpool Cooktop
4	WPW10406243 Whirlpool Burner Head Auxiliary 6K
4	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
4	WPW10406878 Whirlpool Burner Base (16K)
4	WPW10336094 Whirlpool Burner Assembly Top
5	WPW10415451 Whirlpool Burner Knob
5	KNOB, (ACCUSIMMER)
5	Knob, AccuSimmer (Black)
6	W10518258 Whirlpool Mounting Bracket
7	Knob, Valve (3)
7	KNOB, VALVE (BLACK)
7	KNOB
8	W10338215 Whirlpool Grate Kit
8	WPW10338214 Whirlpool Grate Kit
9	PANEL, MANIFOLD (BLACK)
9	PANEL, MANIFOLD (WHITE)
9	PANEL, MANIFOLD (STAINLESS)
10	WPW10333445 Whirlpool Burner Base
11	W10171137 Whirlpool Burner Cap
11	WPW10171140 Whirlpool Burner Cap
12	GLIDE, MAIN TOP
