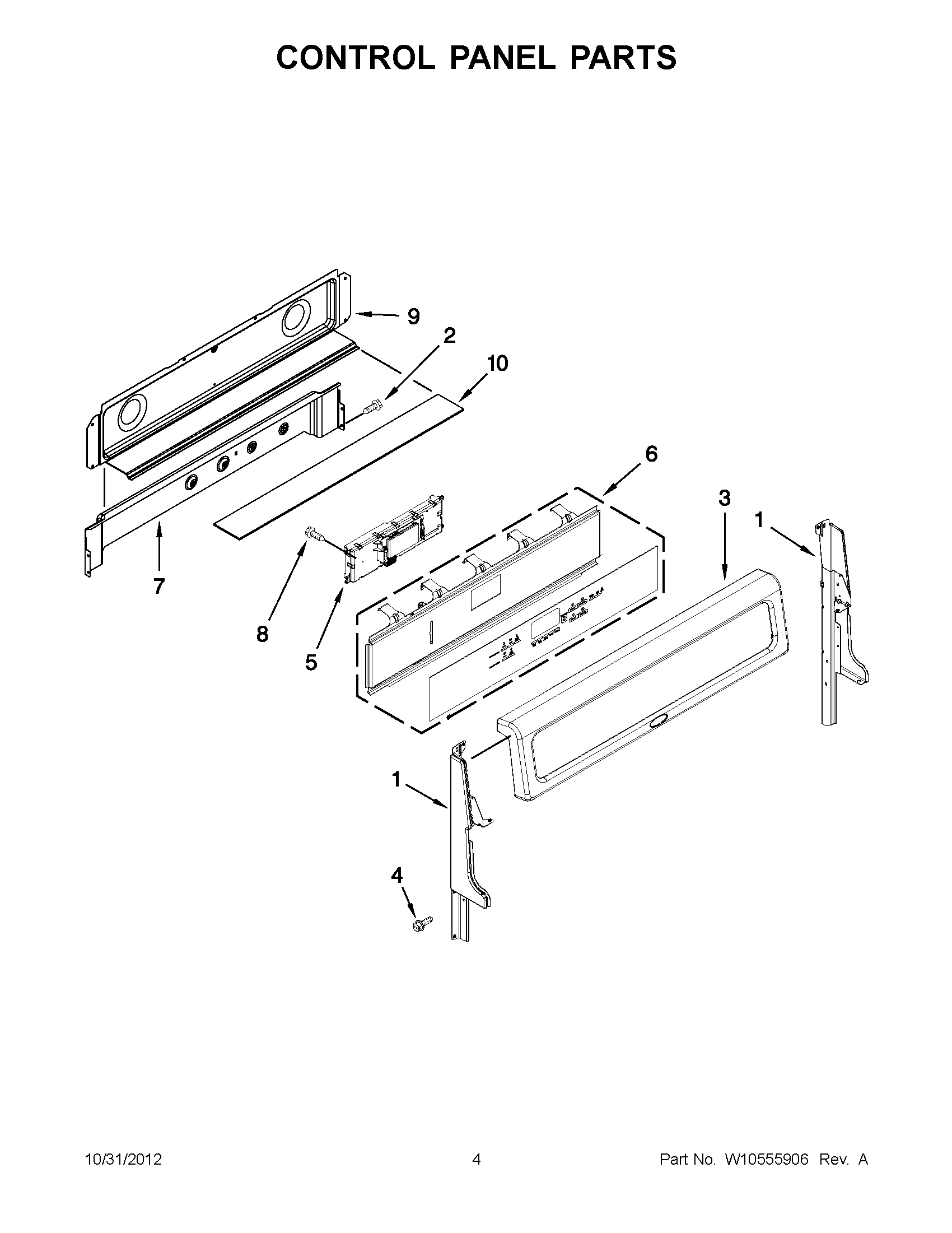

GGG390LXQ04 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W10319112 Whirlpool Panel Endcap
1	W10319110 Whirlpool Endcap Panel
1	W10319109 Whirlpool Endcap Panel
1	SUPPORT, BACK GUARD (RIGHT HAND)
2	SCREW
3	Panel, Control (White)
3	Panel, Control (Stainless)
3	Panel, Control (Black)
4	SCREW (BLACK)
5	WPW10365415-includeCORE Whirlpool WPW10365415 Microwave Electronic Control Board + Core
6	W10321795 Whirlpool Membrane Switch
6	W10321797 Whirlpool Membrane Switch
7	W10278697 Whirlpool Vent Shield Assembly
8	SCREW
9	W10296773 Whirlpool Rear Cover
10	W11684874 Whirlpool Insulation
