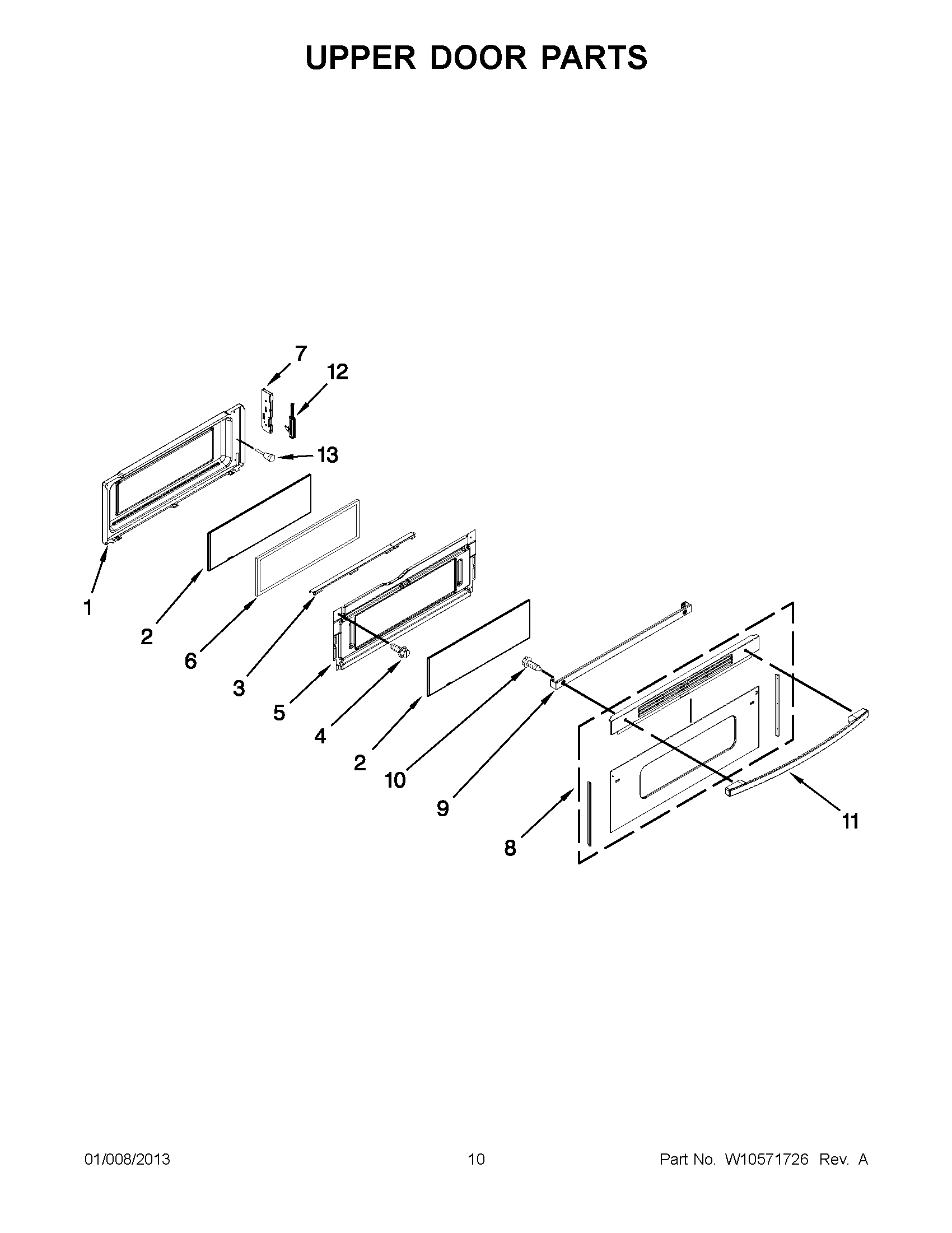

GGG390LXQ05 05 – UPPER DOOR PARTS

GGG390LXQ05 05 – UPPER DOOR PARTS

Written by

in

GGG390LXQ05 05 – UPPER DOOR PARTS

Products

PositionProduct
1W11051040 Whirlpool Door Liner
2W11132120 Whirlpool Glass Door
3WPW10272708 Whirlpool Window Frame
4WPW10292297 Whirlpool Screw
5W10485723 Whirlpool Retainer
6WPW10321271 Whirlpool Insulation Assembly
7W10277006 Whirlpool Hinge Receiver
8GLASS, DOOR (STAINLESS)
8GLASS, DOOR (BLACK)
8GLASS, DOOR (WHITE)
9WPW10294695 Whirlpool Mounting Bracket
10WPW10317886 Whirlpool Screw
11WPW10144883 Whirlpool Door Handle
11W10817434 Whirlpool Door Handle
11WPW10323589 Whirlpool Door Handle
12WPW10485733 Whirlpool Door Hinge
12WPW10485732 Whirlpool Door Hinge
13W10105790 Whirlpool Bumper
