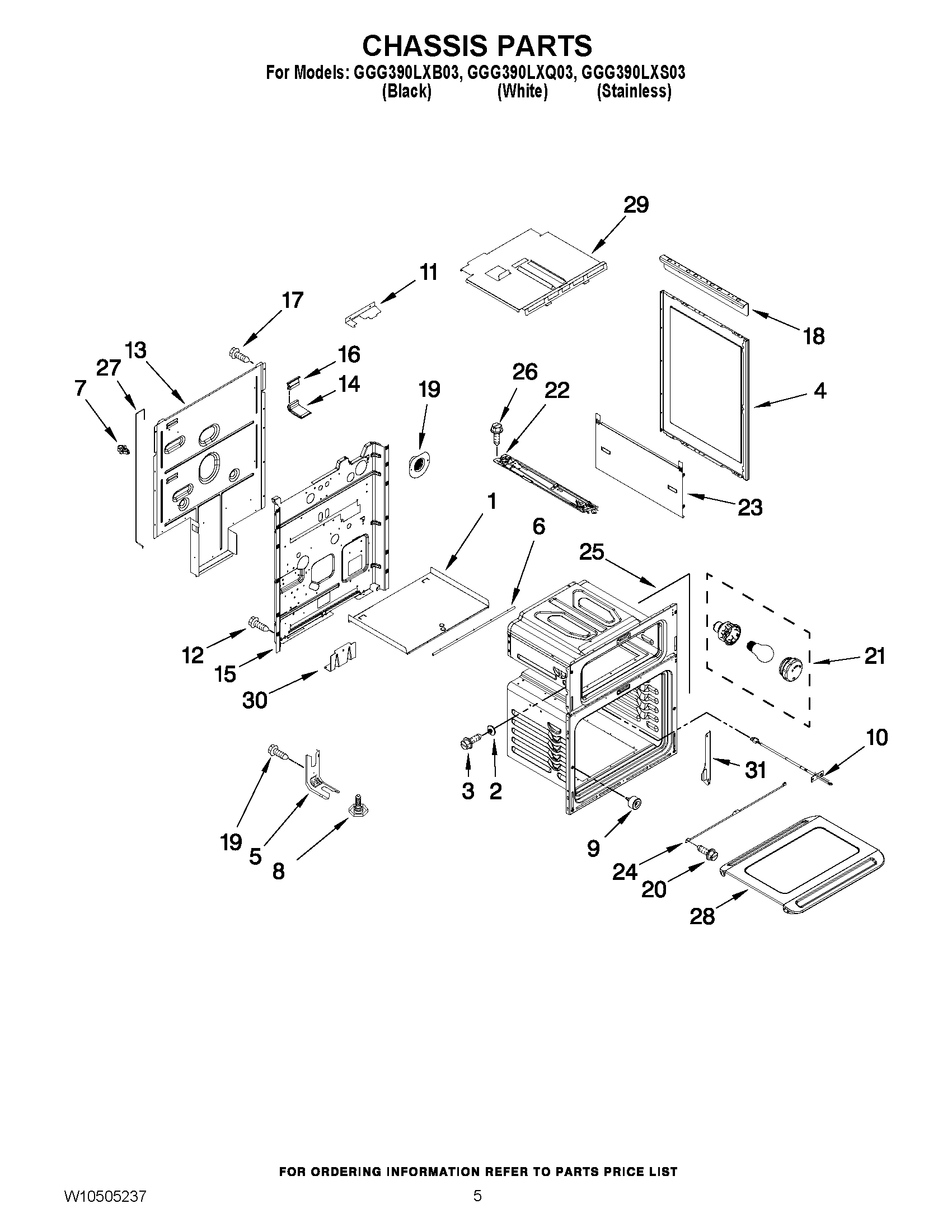

GGG390LXS03 04 – CHASSIS PARTSadmin2025-04-26T12:21:07+00:00GGG390LXS03 04 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | W11685611 Whirlpool Insulation |
| NI | W11688777 Whirlpool Insulation |
| NI | W11688385 Whirlpool Insulation |
| NI | W11684919 Whirlpool Insulation |
| NI | W11684769 Whirlpool Insulation |
| 1 | W10319038 Whirlpool Heat Shield |
| 2 | WPW10237689 Whirlpool Spacer Panel |
| 3 | WPW10267456 Whirlpool Screw |
| 4 | WPW10330376 Whirlpool Side Panel |
| 4 | ASSEMBLY, SIDE PANEL (BLACK) |
| 5 | BRACKET, ANTI TIP |
| 6 | W10319000 Whirlpool Oven Gasket Assembly |
| 7 | GUIDE, ROD |
| 8 | FOOT, LEVELER |
| 9 | W10105790 Whirlpool Bumper |
| 10 | SENSOR, OVEN |
| 11 | COVER, LOWER WIRE |
| 12 | SCREW (BLACK) |
| 13 | WPW10261387 Whirlpool Wire Cover |
| 14 | W11243157 Whirlpool Oven Flue |
| 14 | W10272519 Whirlpool Oven Flue |
| 15 | WPW10260580 Whirlpool Rear Cover |
| 16 | W10321446 Whirlpool Oven Flue |
| 16 | W10321445 Whirlpool Oven Flue Assembly |
| 17 | Screw |
| 18 | W10319087 Whirlpool Support Bracket |
| 19 | SCREW, ANTI-TIP KIT |
| 20 | SCREW (BLACK) |
| 21 | ASSEMBLY, LIGHT |
| 22 | WPW10471348 Whirlpool Door Latch |
| 23 | WPW10253471 Whirlpool Shield |
| 24 | TRIM, KICKPLATE |
| 25 | WPW10269069 Whirlpool Door Gasket |
| 25 | W10318928 Whirlpool Door Gasket |
| 26 | SCREW |
| 27 | ROD, SHUTOFF |
| 28 | WPW10272546 Whirlpool Broiler Pan |
| 29 | W10324643 Whirlpool Support |
| 30 | W10260703 Whirlpool Support |
| 31 | W10410463 Whirlpool Cover Assembly |
| 31 | W10410461 Whirlpool Cover |
