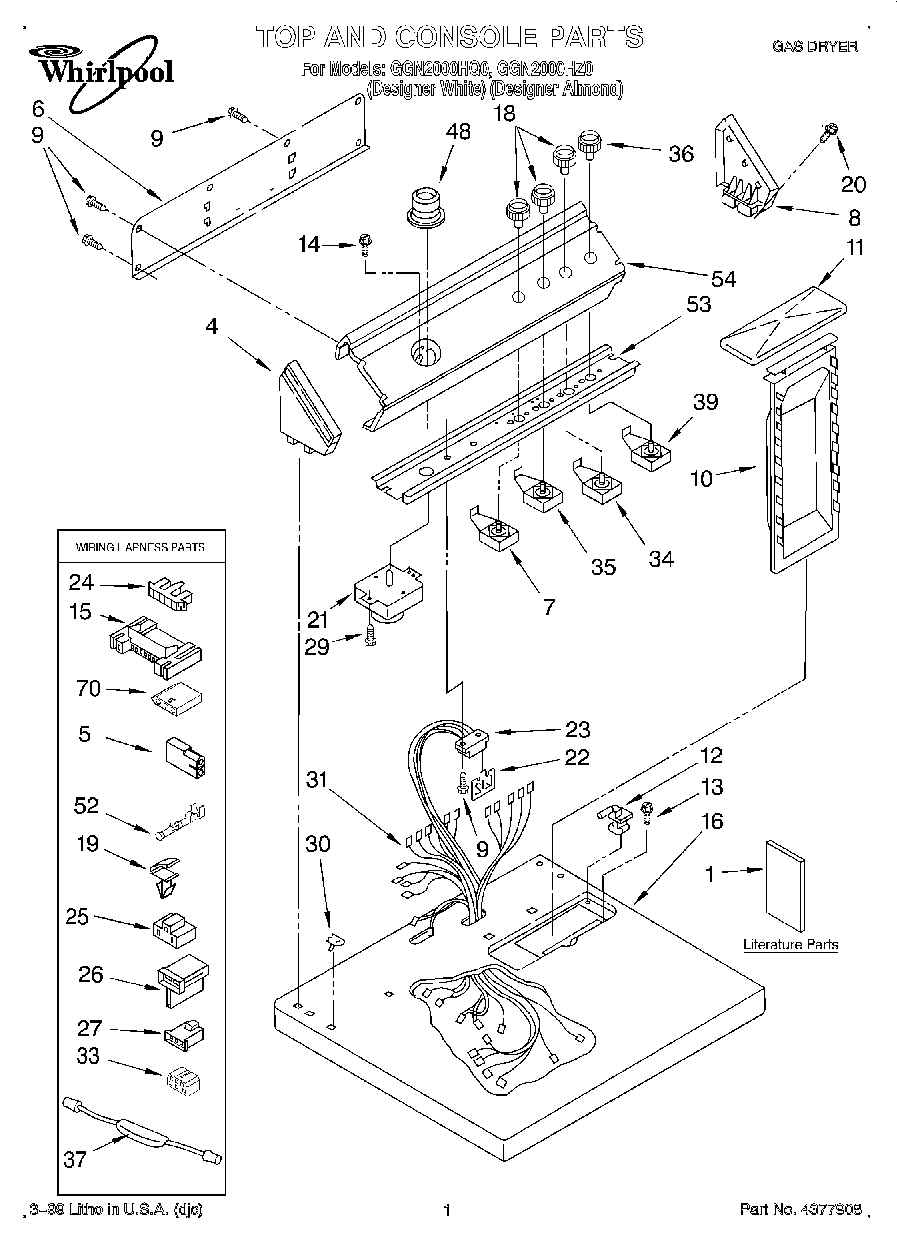

GGN2000HQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

GGN2000HQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

GGN2000HQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
Dryer
1Instructions, Installation
1Literature Parts (Label, Wiring Diagram)
1Literature Parts (Use & Care Guide)
4Cap, End (L.H.) (Almond)
4Cap, End (L.H.)
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
6Panel, Rear Console
7W11106324 Whirlpool Switch
8Cap, End (R.H.) (Almond)
8Cap, End (R.H.)
9WP693995 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top (White)
16Top (Almond)
183957797 Whirlpool Knob
18WP3957796 Whirlpool Knob
19WP3394427 Whirlpool Clip
20WP388326 Whirlpool Screw
21WP3406725 Whirlpool Timer
22Control, Electronic
233391885 Whirlpool Connector
24Connector, Timer
253401144 Whirlpool Connector
26WP3403499 Whirlpool Connector
27WP3403498 Whirlpool Connector
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
33Block, Disconnect
343405154 Whirlpool Primary Switch
35WP3398093 Whirlpool Buzzer Adjuster
36WP3957800 Whirlpool Knob
37Resistor Assembly
39WP3398094 Whirlpool Push To Start Switch
48Timer Knob Assembly (Almond)
48WP3957746 Whirlpool Knob Assembly
52WP94614 Whirlpool Terminal
53Bracket, Control
54Panel, Control (Almond)
54Panel, Control (White)
7072017 Whirlpool Appliance Touch-Up Paint White
70Almond (Uncut)
70WP72107 Whirlpool Touchup
70350938 Whirlpool Spray Gun
703936144 Whirlpool Connector
70799344 Whirlpool Refrigerator Paint
70350930 Whirlpool White Spray Paint
70350956 Whirlpool Spray Assembly
