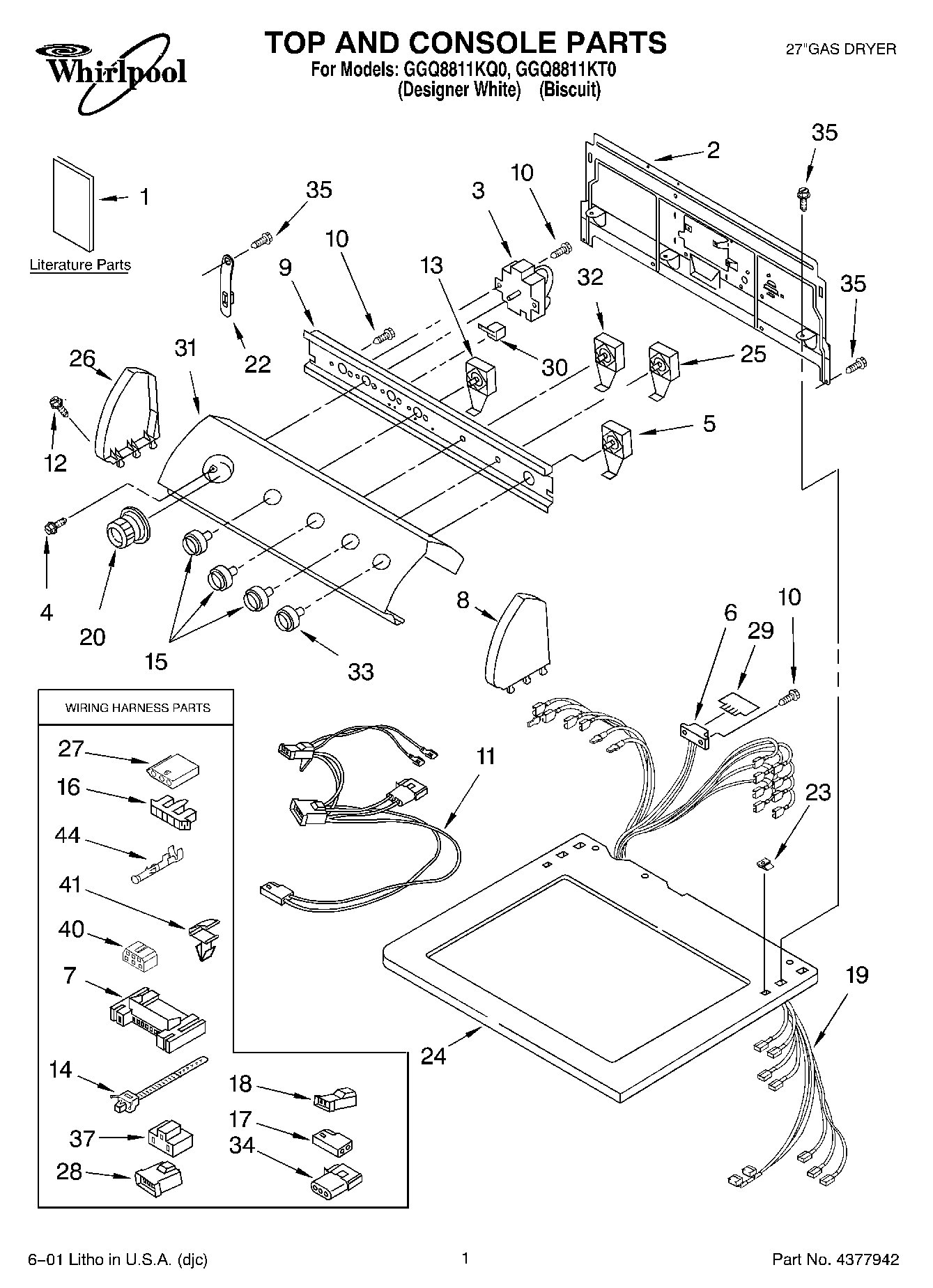

GGQ8811KQ0 01 – TOP AND CONSOLE, LITERATURE

GGQ8811KQ0 01 – TOP AND CONSOLE, LITERATURE

Written by

in

GGQ8811KQ0 01 – TOP AND CONSOLE, LITERATURE

Products

PositionProduct
Dryer
1Literature Parts (Guide, Use & Care)
1Literature Parts (Instructions, Installation)
1Literature Parts (Label, Wiring Diagram)
2285909 Whirlpool Rear Panel
3WP3406725 Whirlpool Timer
43400859 Whirlpool Screw
5WP3398094 Whirlpool Push To Start Switch
63391885 Whirlpool Connector
73395683 Whirlpool Connector
8WPL 8271362
8W10820038 Whirlpool Endcap
9Bracket, Control
10WPW10139210 Whirlpool Screw
11WP3401850 Whirlpool Wire Harness
12WP388326 Whirlpool Screw
13W11106324 Whirlpool Switch
14WP3391018 Whirlpool Wire Tie
15WP3957799 Whirlpool Knob
153957797 Whirlpool Knob
16Connector, Timer
17Receptacle, Latching (2-Way) (Uses Terminal 94614)
18WP3403499 Whirlpool Connector
19Harness, Wiring
20WP3957755 Whirlpool Knob
20WP3957754 Whirlpool Knob Assembly
22WP8568314 Whirlpool Strap
23WP357213 Whirlpool Hinge Stopper
24Top (Biscuit)
24Top
253405152 Whirlpool Switch Assembly
26Cap, End (L.H.) (BIscuit)
273936144 Whirlpool Connector
28WP3403498 Whirlpool Connector
29WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
30WP694419 Whirlpool Buzzer Adjuster
31Panel, Control (White)
31Panel, Control (Biscuit)
323405154 Whirlpool Primary Switch
333957804 Whirlpool Knob
33WPL 8271349
34Plug, 3-Way
35WP488729 Whirlpool Refrigerator Door Screw
373401144 Whirlpool Connector
40Block, Disconnect
41WP3394427 Whirlpool Clip
44WP94614 Whirlpool Terminal
