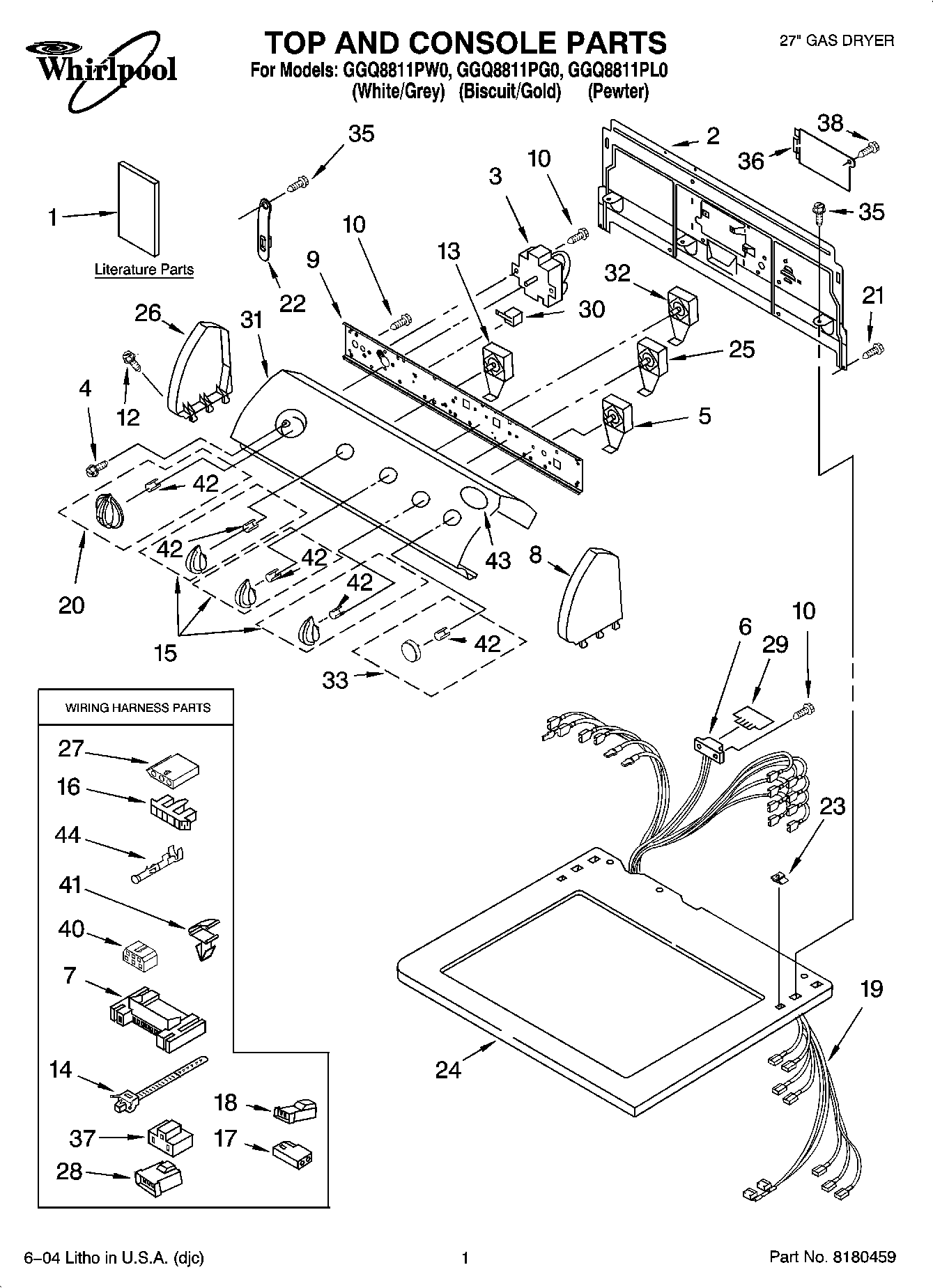

GGQ8811PW0 01 – TOP AND CONSOLE PARTS

GGQ8811PW0 01 – TOP AND CONSOLE PARTS

Written by

in

GGQ8811PW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Wiring Diagram
1WPL 677818
1Sheet, Cycle Feature
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Instructions, Installation
1Guide, Use & Care
2285909 Whirlpool Rear Panel
3WP3406725 Whirlpool Timer
43400859 Whirlpool Screw
5WP3398094 Whirlpool Push To Start Switch
63391885 Whirlpool Connector
73395683 Whirlpool Connector
8W10820038 Whirlpool Endcap
8WPL 3956023
8WPL 8271362
9Bracket, Control
10WPW10139210 Whirlpool Screw
12WP388326 Whirlpool Screw
13W11106324 Whirlpool Switch
14WP3391018 Whirlpool Wire Tie
15WPL 8544937
15WPL 8544938
16Connector, Timer
17Receptacle, Latching (2-Way) (Uses Terminal 94614)
18WP3403499 Whirlpool Connector
19Harness, Wiring
20WPL 8544958
20WPL 8544957
21WP693995 Whirlpool Screw
22WP8568314 Whirlpool Strap
23WP357213 Whirlpool Hinge Stopper
24Top (Biscuit)
24Top (White)
24Top (Grey)
253405152 Whirlpool Switch Assembly
26Cap, End (L.H.) (BIscuit)
26Cap, End (L.H.) (Pewter)
273936144 Whirlpool Connector
28WP3403498 Whirlpool Connector
29WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
30WP694419 Whirlpool Buzzer Adjuster
31Panel, Control (Includes Illus. 39) (Grey)
31Panel, Control (Includes Illus. 39) (Gold)
323405154 Whirlpool Primary Switch
33WP8544941 Whirlpool Knob
35WP488729 Whirlpool Refrigerator Door Screw
36W10819767 Whirlpool Cover
373401144 Whirlpool Connector
38WP90767 Whirlpool Screw
40Block, Disconnect
41WP3394427 Whirlpool Clip
42WP8536939 Whirlpool Spring Clip
43WPL 8533990
44WP94614 Whirlpool Terminal
