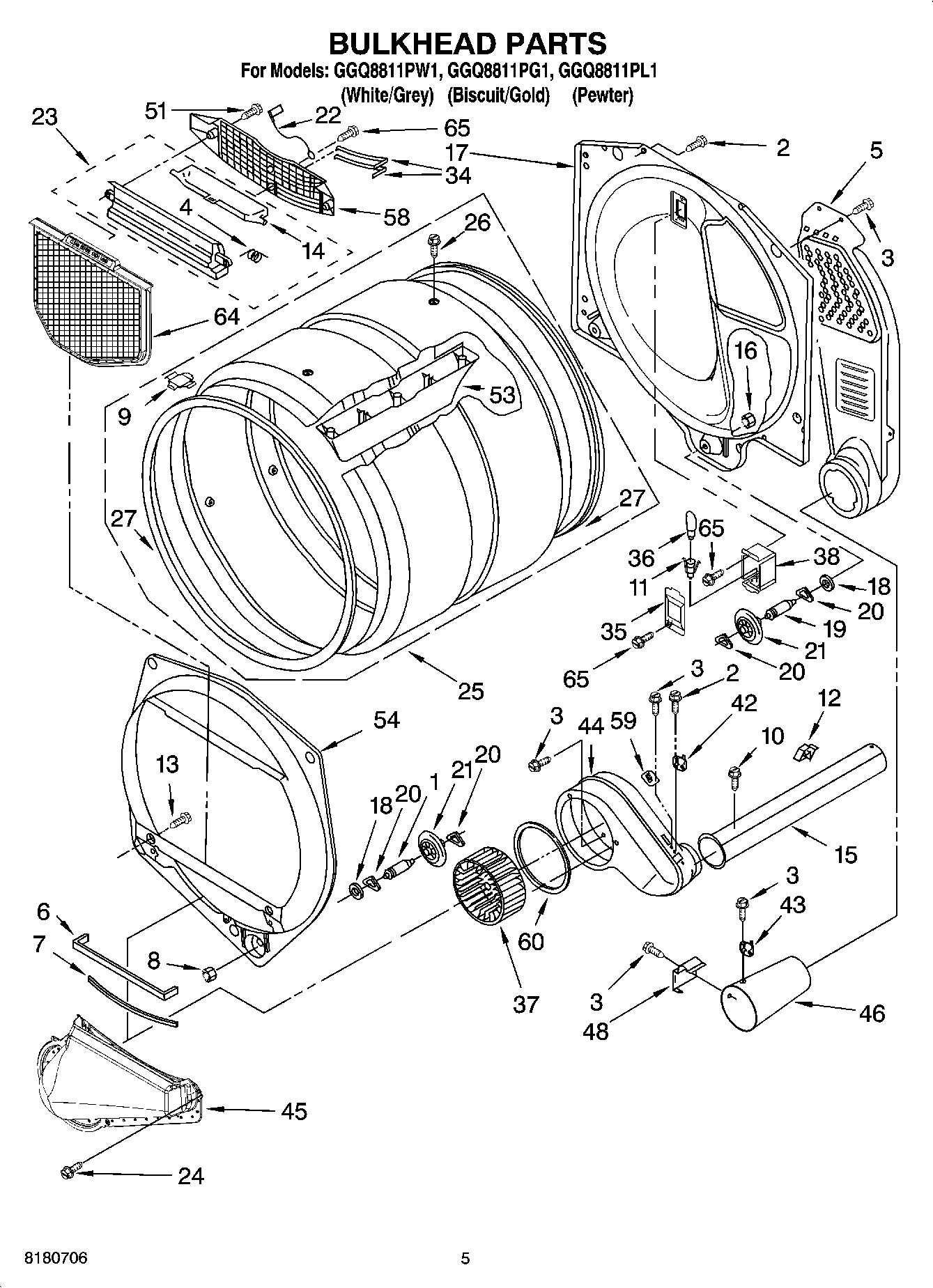

GGQ8811PW1 03 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	WP488729 Whirlpool Refrigerator Door Screw
3	WP90767 Whirlpool Screw
4	WP3394986 Whirlpool Spring
5	W11168650 Whirlpool Air Duct
6	WP697813 Whirlpool Seal
8	WP3359452 Whirlpool Nut
9	8066086 Whirlpool Plug
10	WPW10139210 Whirlpool Screw
11	W11700522 Whirlpool Socket
12	WP3388229 Whirlpool Dryer Spring Clip
14	W11222846 Whirlpool Door
15	279936 Whirlpool Exhaust Pipe
16	Nut, 3/8-16 (L.H.)
17	W11299301 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	Ground-Sensor
23	W11129408 Whirlpool Out Housing
24	W11693756 Whirlpool Screw Assembly
25	W10545923 Whirlpool Drum Assembly
26	WPW10109200 Whirlpool Screw
27	280114 Whirlpool Dryer Drum Seal
34	WP3387223 Whirlpool Electrode Assembly
35	W11226088 Whirlpool Lens Assembly
36	WP22002263 Whirlpool Dryer 10W Light Bulb
37	WP697772 Whirlpool Dryer Blower Wheel
38	3977373 Whirlpool Bracket
42	WP8318268 Whirlpool Thermostat
43	W11050897 Whirlpool Dryer High Limit Thermostat
44	W10888146 Whirlpool Housing
45	WPW10128606 Whirlpool Lint Duct
46	WP8066047 Whirlpool Funnel
48	WP338906 Whirlpool Dryer Gas Sensor
51	WP3387230 Whirlpool Screw
53	WPW10113136 Whirlpool Drum Baffle
54	WP697557 Whirlpool Bulkhead Assembly
58	W11086603 Whirlpool Dryer Link Screen Air Grille
59	WP3392519 Whirlpool Dryer Thermal Fuse
60	WP697770 Whirlpool Blower Cover Plate Seal
64	W10120998 Whirlpool Dryer Lint Screen Filter
