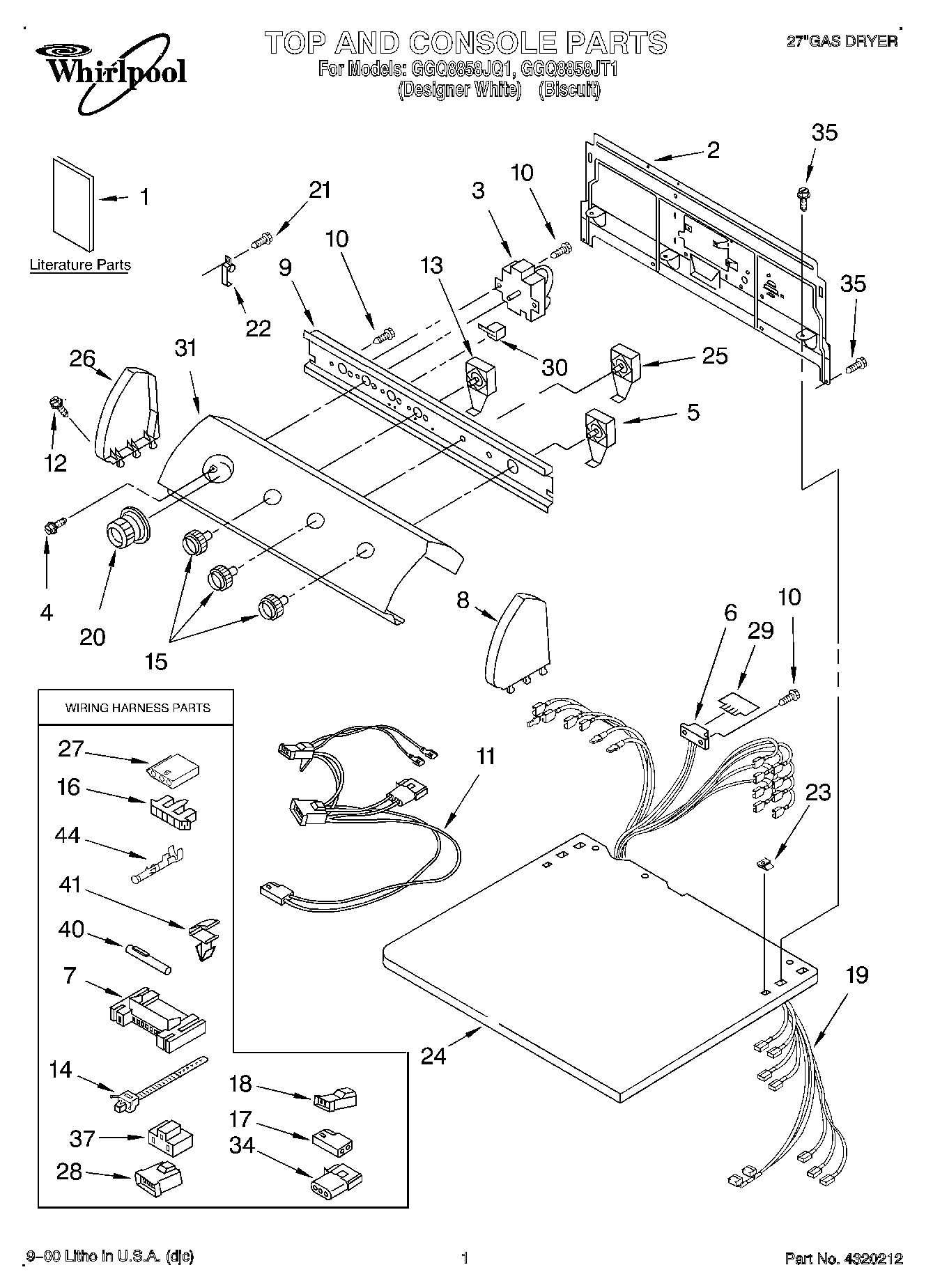

GGQ8858JQ1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	Dryer
1	Literature Parts (Label, Wiring Diagram)
1	Literature Parts (Instructions, Installation)
1	Literature Parts (Guide, Use & Care)
2	Panel, Rear Console
3	WP3406725 Whirlpool Timer
4	3400859 Whirlpool Screw
5	WP3398095 Whirlpool Dryer Start Relay
6	3391885 Whirlpool Connector
7	3395683 Whirlpool Connector
8	WPL 8271362
8	W10820038 Whirlpool Endcap
9	Bracket, Control
10	WPW10139210 Whirlpool Screw
11	WP3401850 Whirlpool Wire Harness
12	WP388326 Whirlpool Screw
13	W11106324 Whirlpool Switch
14	WP3391018 Whirlpool Wire Tie
15	3957797 Whirlpool Knob
15	WP3957799 Whirlpool Knob
16	Connector, Timer
17	Receptacle, Latching (2-Way) (Uses Terminal 94614)
18	WP3403499 Whirlpool Connector
19	Harness, Wiring
20	WP3957754 Whirlpool Knob Assembly
20	WP3957755 Whirlpool Knob
21	WP693995 Whirlpool Screw
22	Hinge, Console (2)
23	WP357213 Whirlpool Hinge Stopper
24	Top
24	Top (Biscuit)
25	3405154 Whirlpool Primary Switch
26	Cap, End (L.H.) (BIscuit)
27	3936144 Whirlpool Connector
28	WP3403498 Whirlpool Connector
29	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
30	WP694419 Whirlpool Buzzer Adjuster
31	Panel, Control (White)
31	Panel, Control (Biscuit)
34	Plug, 3-Way
35	WP488729 Whirlpool Refrigerator Door Screw
37	3401144 Whirlpool Connector
40	Receptacle
41	WP3394427 Whirlpool Clip
44	WP94614 Whirlpool Terminal
