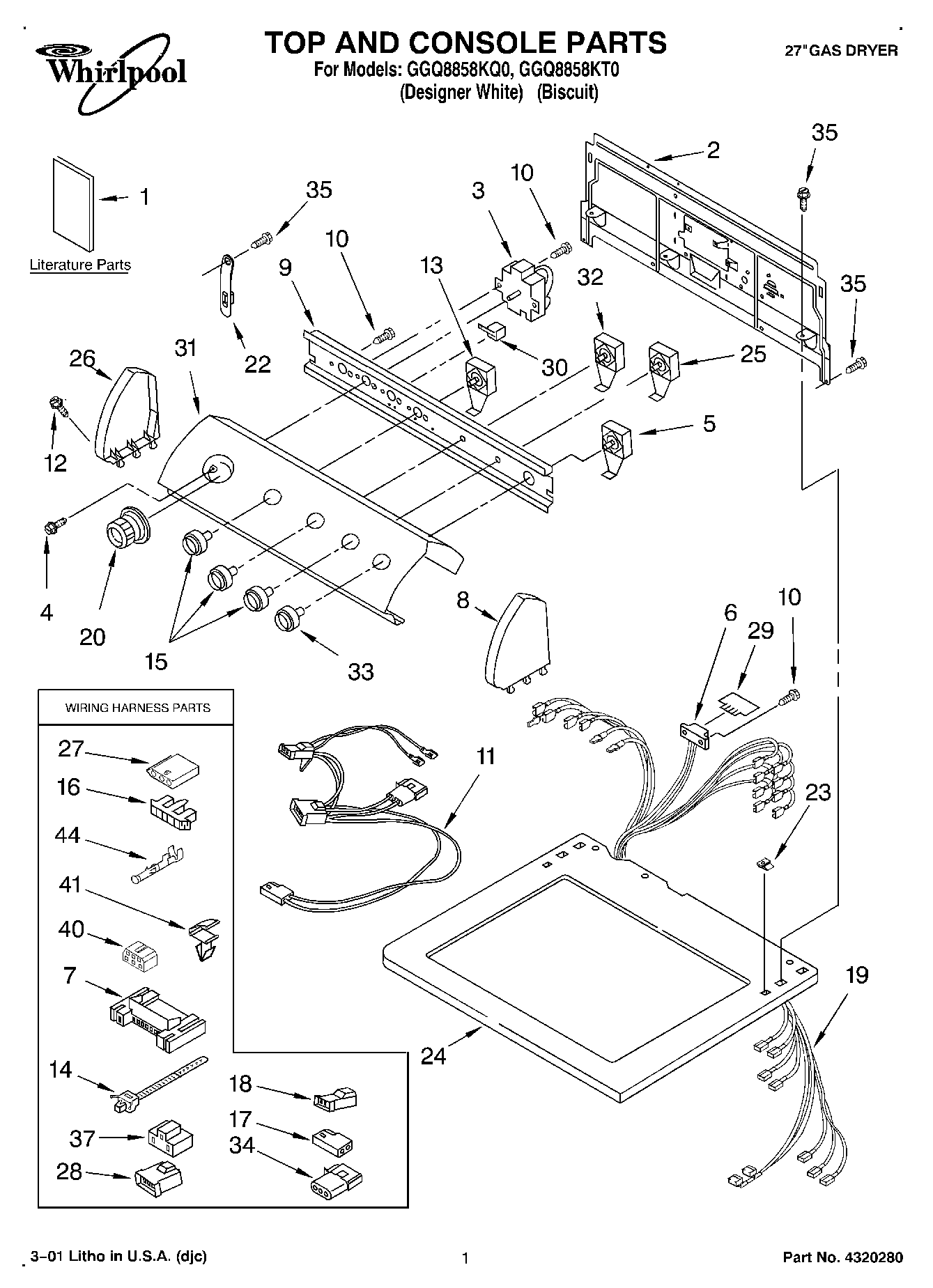

GGQ8858KT0 01 – TOP AND CONSOLE, LITERATURE

Products

Position	Product
	Dryer
1	Literature Parts (Guide, Use & Care)
1	Literature Parts (Instructions, Installation)
1	Literature Parts (Label, Wiring Diagram)
2	285909 Whirlpool Rear Panel
3	WP3406725 Whirlpool Timer
4	3400859 Whirlpool Screw
5	WP3398094 Whirlpool Push To Start Switch
6	3391885 Whirlpool Connector
7	3395683 Whirlpool Connector
8	W10820038 Whirlpool Endcap
8	WPL 8271362
9	Bracket, Control
10	WPW10139210 Whirlpool Screw
11	WP3401850 Whirlpool Wire Harness
12	WP388326 Whirlpool Screw
13	W11106324 Whirlpool Switch
14	WP3391018 Whirlpool Wire Tie
15	WP3957799 Whirlpool Knob
15	3957797 Whirlpool Knob
16	Connector, Timer
17	Receptacle, Latching (2-Way) (Uses Terminal 94614)
18	WP3403499 Whirlpool Connector
19	Harness, Wiring
20	WP3957755 Whirlpool Knob
20	WP3957754 Whirlpool Knob Assembly
22	WP8568314 Whirlpool Strap
23	WP357213 Whirlpool Hinge Stopper
24	Top
24	Top (Biscuit)
25	3405152 Whirlpool Switch Assembly
26	Cap, End (L.H.) (BIscuit)
27	3936144 Whirlpool Connector
28	WP3403498 Whirlpool Connector
29	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
30	WP694419 Whirlpool Buzzer Adjuster
31	Panel, Control (Biscuit)
31	Panel, Control (White)
32	3405154 Whirlpool Primary Switch
33	3957804 Whirlpool Knob
33	WPL 8271349
34	Plug, 3-Way
35	WP488729 Whirlpool Refrigerator Door Screw
37	3401144 Whirlpool Connector
40	Block, Disconnect
41	WP3394427 Whirlpool Clip
44	WP94614 Whirlpool Terminal
