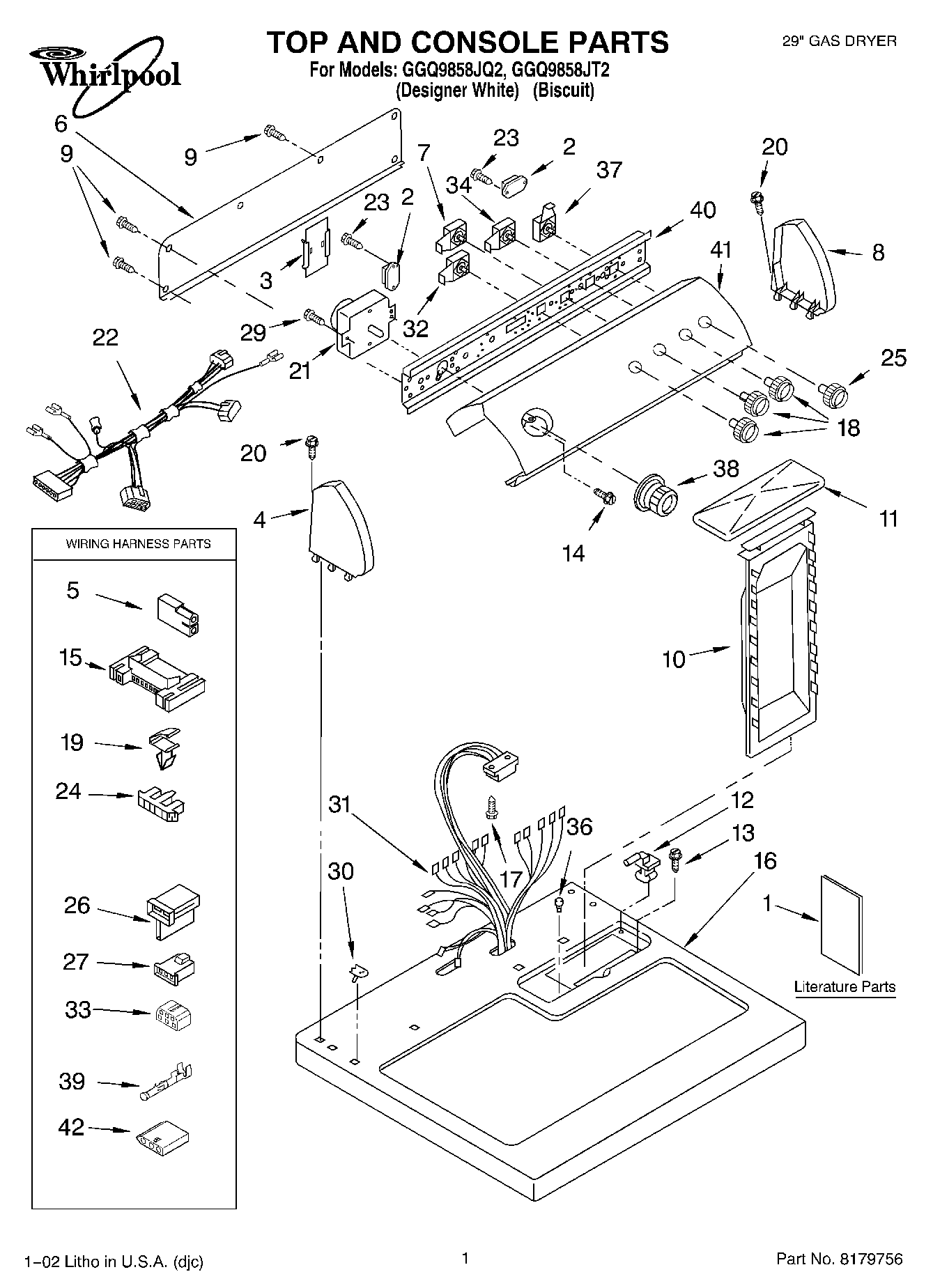

GGQ9858JQ2 01 – TOP AND CONSOLE, LIT/OPTIONAL

GGQ9858JQ2 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

GGQ9858JQ2 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
Dryer
1Literature Parts (Tech Sheet)
1Literature Parts (Use & Care Guide)
1Literature Parts (Wiring Diagram)
1Literature Parts (Instructions, Installation)
2WP3405281 Whirlpool Relay
3Control Board
4Cap, End (L.H.) (BIscuit)
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
6W10103406 Whirlpool Rear Panel
73405152 Whirlpool Switch Assembly
8WPL 8271362
8W10820038 Whirlpool Endcap
9WP693995 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Biscuit)
11Cover, Lint Screen
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top
16Top (Biscuit)
17SCREW
183957797 Whirlpool Knob
18WP3957799 Whirlpool Knob
19WP3394427 Whirlpool Clip
20WP388326 Whirlpool Screw
21WP8299771 Whirlpool Timer
22Harness, Console
23WP3388228 Whirlpool Screw
24Connector, Timer
25WPL 8271349
253957804 Whirlpool Knob
26WP3403499 Whirlpool Connector
27WP3403498 Whirlpool Connector
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
32WP3399643 Whirlpool Switch
33Block, Disconnect
343405151 Whirlpool Switch
36Bumper, Lint Lid
37WP3977456 Whirlpool Start Switch
38WP3957755 Whirlpool Knob
38WP3957754 Whirlpool Knob Assembly
39WP94614 Whirlpool Terminal
40Bracket, Control
41WPL 3977831
41WPL 3977830
424392065 Whirlpool Dryer Maintenance Kit
42350930 Whirlpool White Spray Paint
42PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
423936144 Whirlpool Connector
423406839 Whirlpool Drying Rack
42799344 Whirlpool Refrigerator Paint
42350938 Whirlpool Spray Gun
424392901 Whirlpool Biscuit Spray Paint
4272017 Whirlpool Appliance Touch-Up Paint White
42KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
424392899 Whirlpool Biscuit Touch-Up Paint
