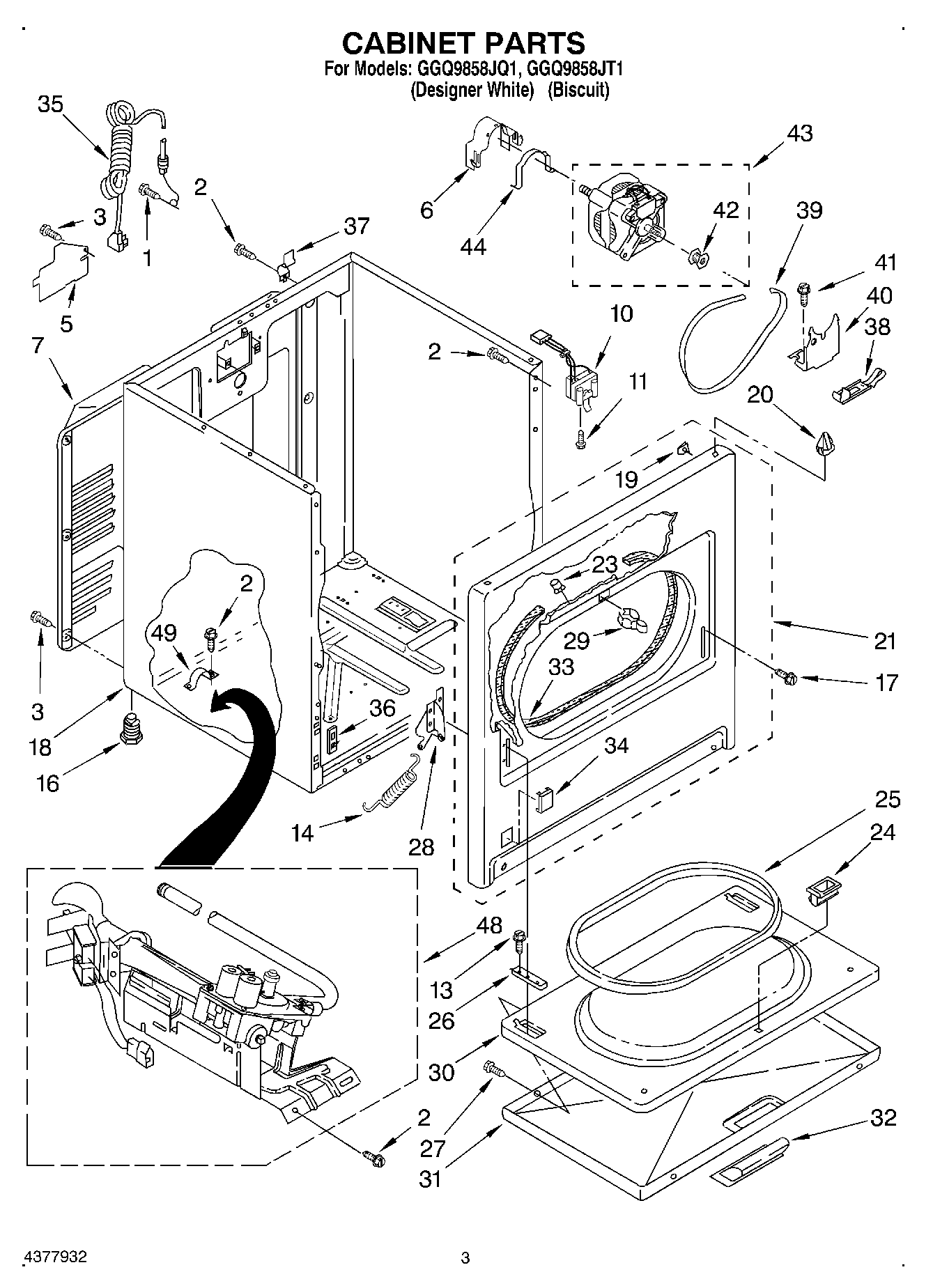

GGQ9858JT1 02 – CABINET

GGQ9858JT1 02 – CABINET

Written by

in

GGQ9858JT1 02 – CABINET

Products

PositionProduct
1W10850756 Whirlpool Screw
2SCREW
3WP693995 Whirlpool Screw
5W11539855 Whirlpool Refrigerator Pump
6WP3404162 Whirlpool Clamp
7280043 Whirlpool Rear Panel
10WP3406107 Whirlpool Dryer Door Switch
11WP3395530 Whirlpool Screw
13WP308685 Whirlpool Microwave Screw
14WPW10041960 Whirlpool Door Spring
1649621 Whirlpool Leveling Feet
17Screw, 10-32 x 1/2
18Cabinet (Includes Illus. Nos. 5, 7, 15, 16 & 57) (White)
18Cabinet (Biscuit (Includes Illus. Nos. 5,7,16,36, & 40))
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Panel, Front (Biscuit)
21279740 Whirlpool Panel Primary with O/S2
23279220 Whirlpool Clip
24WP3389441 Whirlpool Door Catch
25W10906683 Whirlpool Door Seal
26W11252547 Whirlpool Clip Assembly
27WP694091 Whirlpool Screw
28WP8066057 Whirlpool Door Hinge
28WP8066056 Whirlpool Door Hinge
29279570 Whirlpool Dryer Door Latch Kit
30WP695737 Whirlpool Door
31WP3393549 Whirlpool Door Assembly
31Door, Front (Biscuit)
323977242 Whirlpool Handle
32WP348721 Whirlpool Handle
33W11035878 Whirlpool Bearing and Seal
34Plug, Front Panel (Biscuit)
34Plug, Front Panel (White)
35W11222083 Whirlpool Power Cord
36W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
37WP8066217 Whirlpool Hinge
38WP691366 Whirlpool Dryer Idler Pulley Assembly
39341241 Whirlpool Dryer Drum Belt
40WP348780 Whirlpool Base
413400500 Whirlpool Screw
42WP8066184 Whirlpool Dryer Motor Pulley
43279827 Whirlpool Dryer Drive Motor
44WP660658 Whirlpool Clamp
48W10823508 Whirlpool Gas Burner
49341029 Whirlpool Clamp
