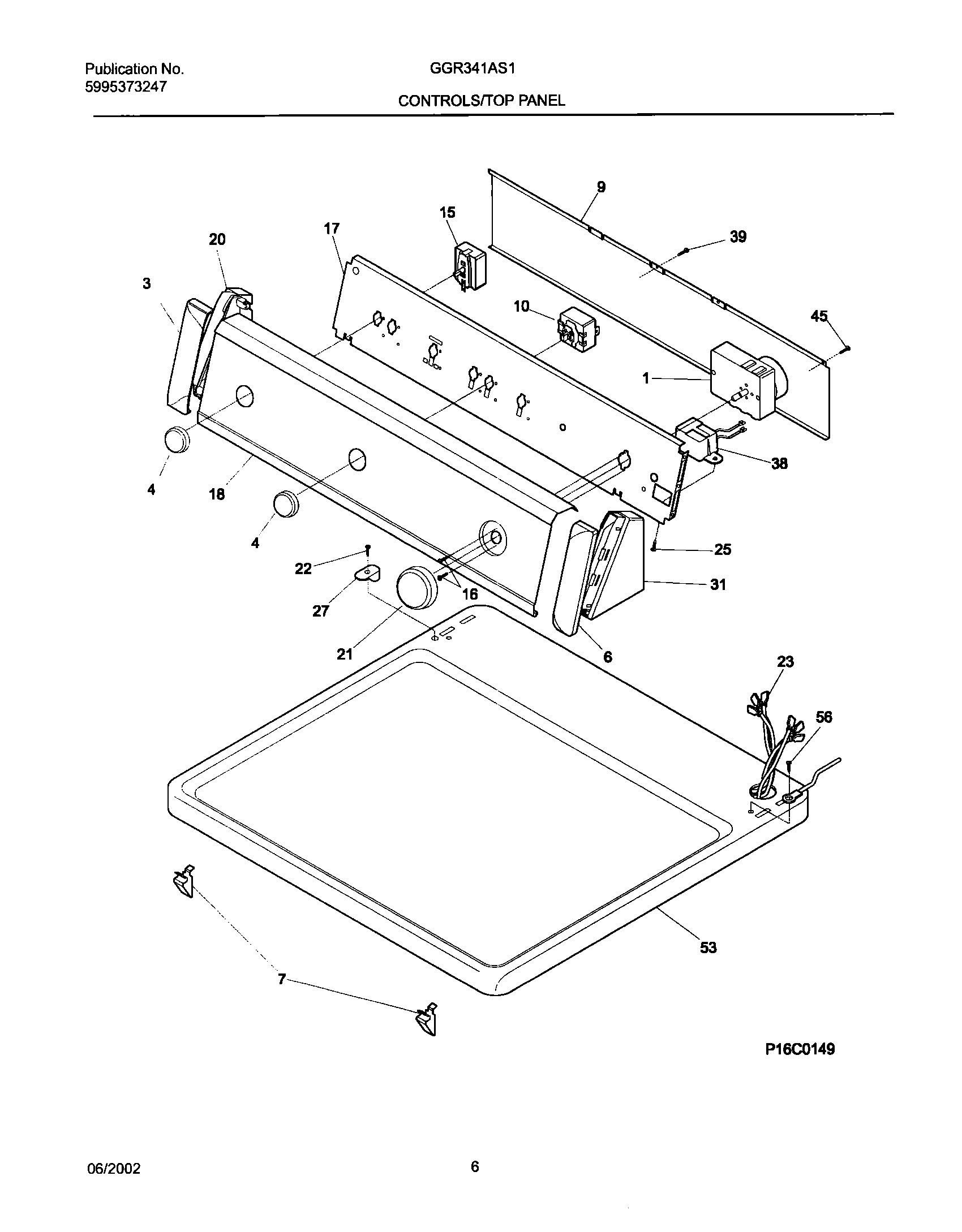

GGR341AS1 07 – CONTROL PANEL

GGR341AS1 07 – CONTROL PANEL

Written by

in

GGR341AS1 07 – CONTROL PANEL

Products

PositionProduct
1131583801 Frigidaire Dryer P-1 Timer
3COVER-CAP-LH-WHITE
4134886700 Frigidaire Dryer Timer Knob
6COVER-CAP-RH-WHITE
73205821 Frigidaire Clip
9WCI 134088700
10134398300 Frigidaire Washer Dryer Turn-to-Start Switch
15WCI 131048100
16218359202 Frigidaire Refrigerator Screw
17WCI 131728900
18WCI 134040300
20END CAP-L.H.-WHITE
21WCI 131860001
22WCI 131266300
23WCI 134005300
255303015671 Frigidaire Bracket Termination Screw
27CLIP-CONSOLE MTG
31END CAP-R.H.-WHITE
38WCI 5303210285
39131243700 Frigidaire Screw
45131205100 Frigidaire Screw
53WCI 134086802
56131243800 Frigidaire Screw
