GGS600AV1DS CONTROL PANEL & COOKTOP

GGS600AV1DS CONTROL PANEL & COOKTOP

Written by

in

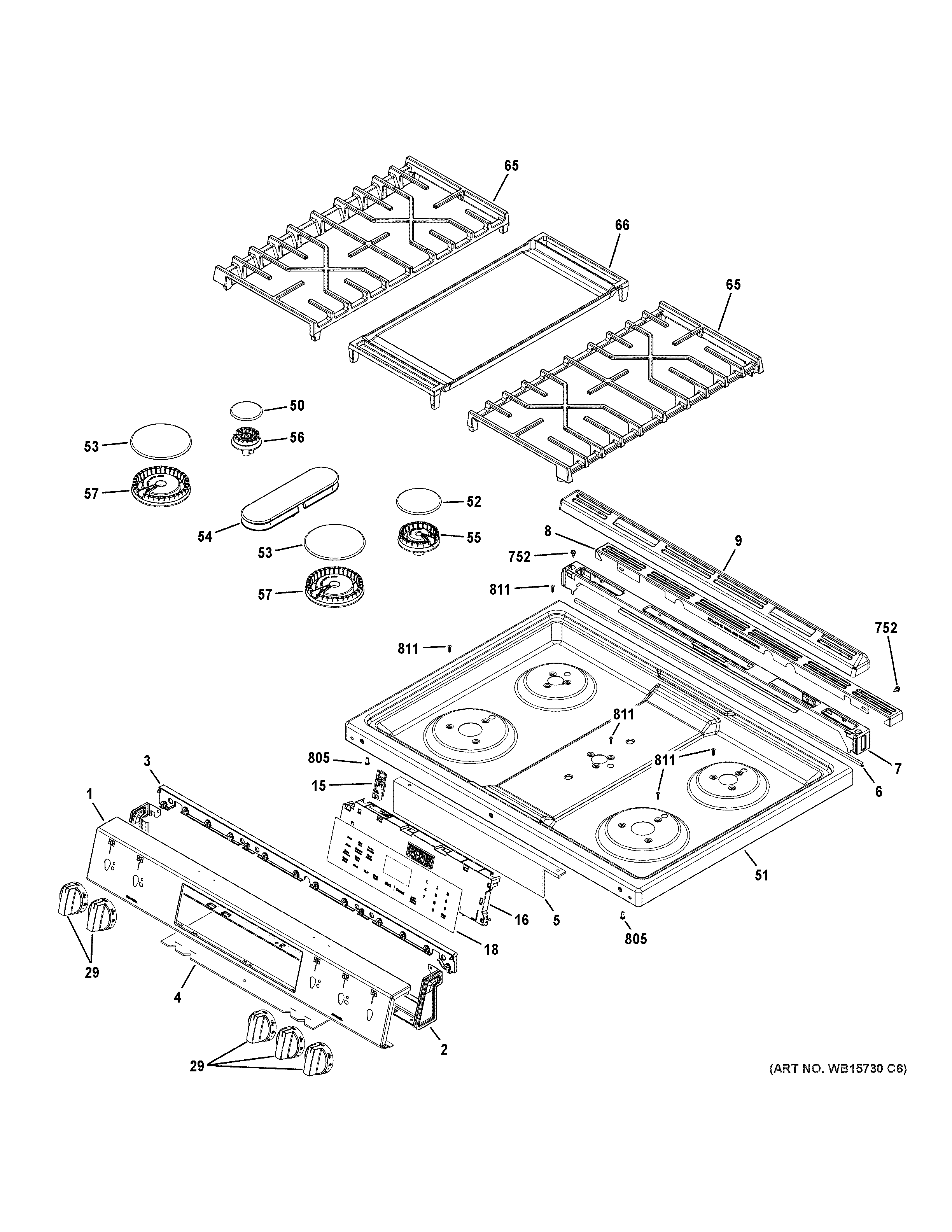

GGS600AV1DS CONTROL PANEL & COOKTOP

Products

PositionProduct
1CONTROL PANEL-BLACK SLATE
2CONTROL PANEL LOWER BLACK
3CONTROL PANEL FILLER
4FORNT CONTROL INSULATION
5FORNT CONTROL INSULATION
6VENT TRIM GASKET
7LOWER VENT TRIM-BLACK
8VENT TRIM- BLACK
9UPPER VENT TRIM-BLACK
15WB27X45808 GE Wi-Fi Bluetooth Combo Board
16WB27X48616 GE OBC2 Control Assembly
18WB07X48486 GE Overlay
29KNOB
50BURNER CAP SMALL V2
51MAINTOP
52BURNER CAP MEDIUM V2
53BURNER CAP XL V2
54OVAL BURNER
55WB16X24724 GE Oven Medium Burner
56WB16X24721 GE Oven Range Small Cooktop Burner V2
57WB16X24722 GE Oven Gas Range XL Surface Burner
65GRATE
66GRIDDLE
752WH2X930 GE Screw
805WB01X34726 GE Screw 8-18 Ab Pnt-20
811WB01X30054 GE Screw 6-32 OVT15 1/2"
