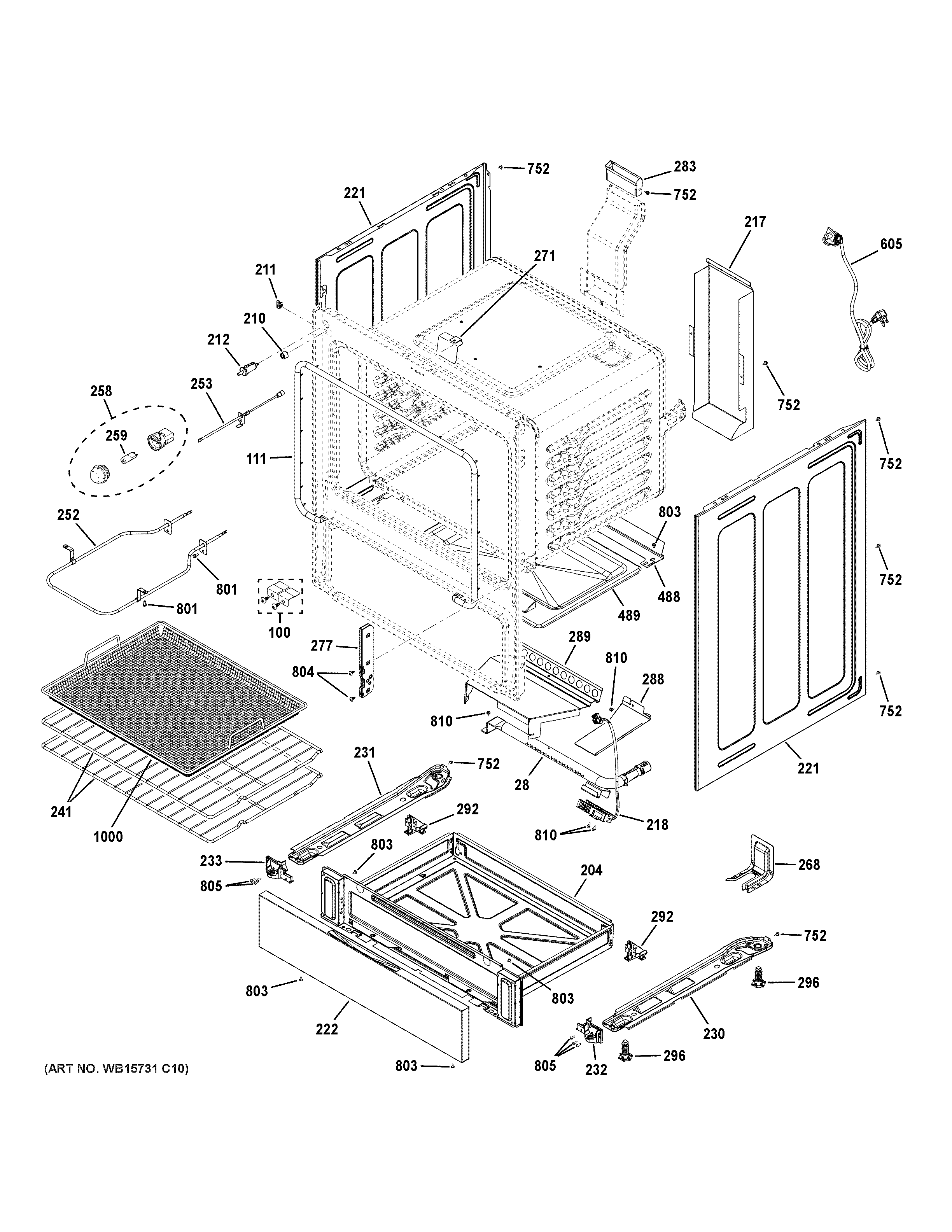

GGS60LAV1FS BODY PARTS

Products

Position	Product
28	BAKE BURNER ASSEMBLY
100	CAVITY CHIP COVER KIT
111	DOOR GASKET
204	DRAWER BODY
210	BUMPER
211	GROMMET
212	WB24X27550 GE Oven Plunger Switch
217	TERMINAL COVER
218	GLOWBAR
221	SIDE PANEL-BLACK
222	DRAWER PANEL-STAINLESS
230	RAIL BASE RH
231	RAIL BASE LH
232	WB02X47103 GE Drawer Support
233	WB02X47107 GE Left Drawer Support
241	RACK
252	BROIL ELEMENT
253	OVEN TEMP SEMSOR
258	WB25X42688 GE Halogen Lamp Assembly
259	WB25T10102 GE Oven Top-Mounted Halogen Bulb G9
268	ANTI-TIP BRACKET
271	LATCH COVER
277	HINGE RECEIVER
283	OVEN VENT EXTENSION
288	SPILL SHIELD
289	SPREADER FLAME BAKE
292	REAR DRAWER GUIDE
296	LEVELING LEG
488	VENT TRIM-BACK
489	OVEN CAVITY BOTTOM
605	WB18X47336 GE Power Cord
752	WH2X930 GE Screw
801	SCREW
803	WB01X48946 GE Screw 8-18 AB Trt-15 3/8"
804	SCR 10-32 TRWT-20 1/2 S
805	WB01X34726 GE Screw 8-18 Ab Pnt-20
810	WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1000	AIRFRY BASKET
