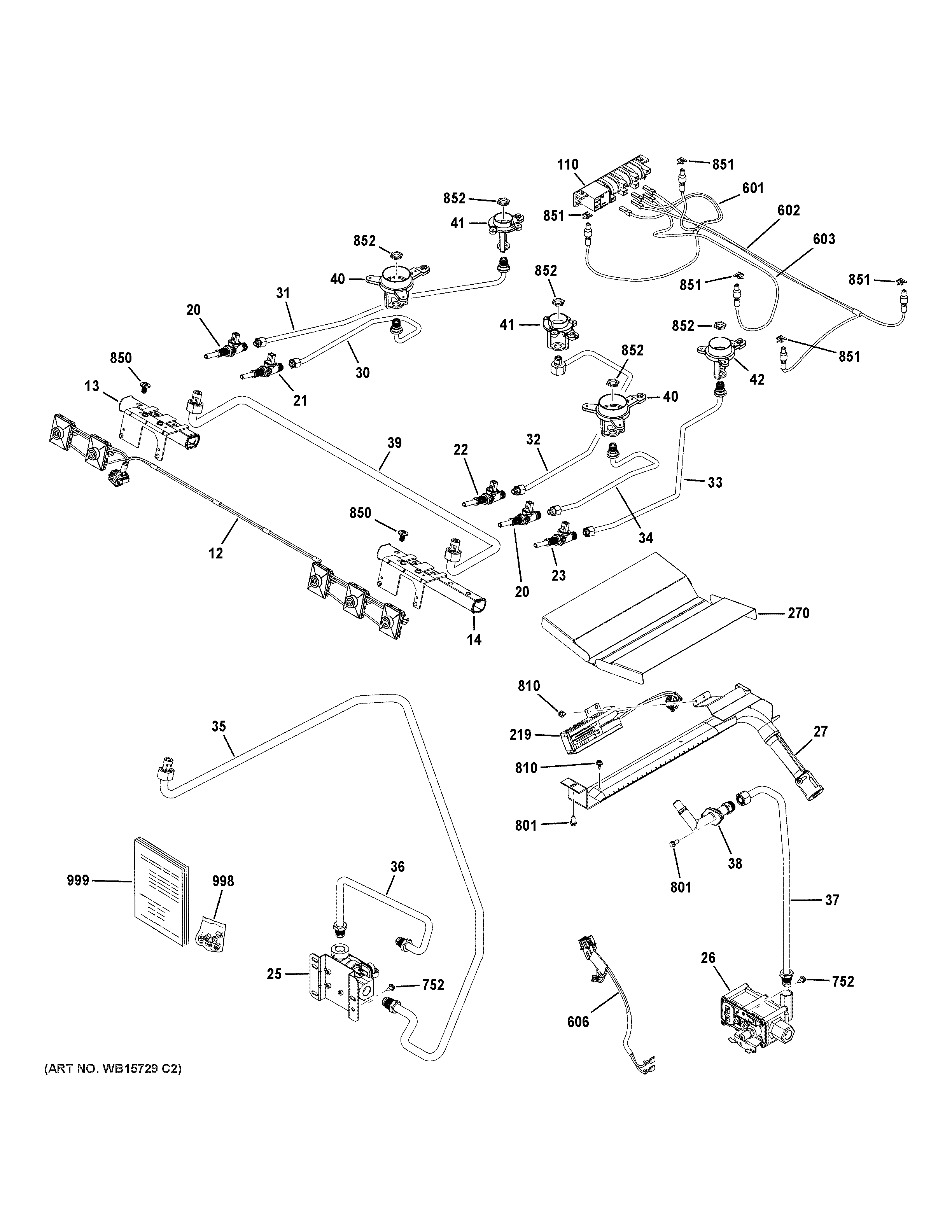

GGS60LAV1FS GAS & BURNER PARTS

Products

Position	Product
12	SWITCH HARNESS
13	MANIFOLD
14	MANIFOLD
20	VALVE BURNER 270
21	WB21X25979 GE Oven Burner Valve 270
22	WB21X20471 GE Oven Burner Valve
23	VALVE BURNER 270
25	WB21X47323 GE Pressure Regulator
26	DUAL SAFETY VALVE
27	BROIL BURNER ASSEMBLY
30	ORIFICE HOLDER LR
31	ORIFICE HOLDER LF
32	ORIFICE HOLDER CTR
33	ORIFICE HOLDER RF
34	ORIFICE HOLDER RR
35	COOKTOP SUPPLY TUBE
36	SAFETY VALVE SUPPLY TUBE
37	BROIL SUPPLY TUBE
38	WB44X47316 GE Broil Injector Assembly
39	MANIFOLD JUMPER TUBE
40	WB02X24725 GE Oven Inlet XLV2
41	WB02X24728 GE Range Small Injector
42	WB02X24727 GE Oven Right Front Burner Jet with Electrode
110	SPARK MODULE
219	GLOWBAR
270	SPREADER FLAME BROIL
601	WB18X47343 GE Harness Left Front/Left Rear
602	WB18X47339 GE RF/RR Harness HV
603	WB18X47337 GE Harness Center
606	SAFETY VALVE HARNESS
752	WH2X930 GE Screw
801	SCREW
810	WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
850	WB01K10067 GE Oven Screw 1/4" HD 20
851	WB02X24976 GE Oven Igniter Clip V2
852	WB01K10037 GE Oven Economic Nut
998	NATURAL GAS HIGH ALTITUDE CONVERSION KIT
998	WB28X47009 GE Natural Gas Conversion Kit
998	WB28X47008 GE LP Conversion Kit
998	WB28X47006 GE LP High Altitude Conversion Kit
999	PM OWNERS MANUAL
999	PM INSTALL INSTRUCTIONS
999	PM MINI MANUAL AND WIRING
