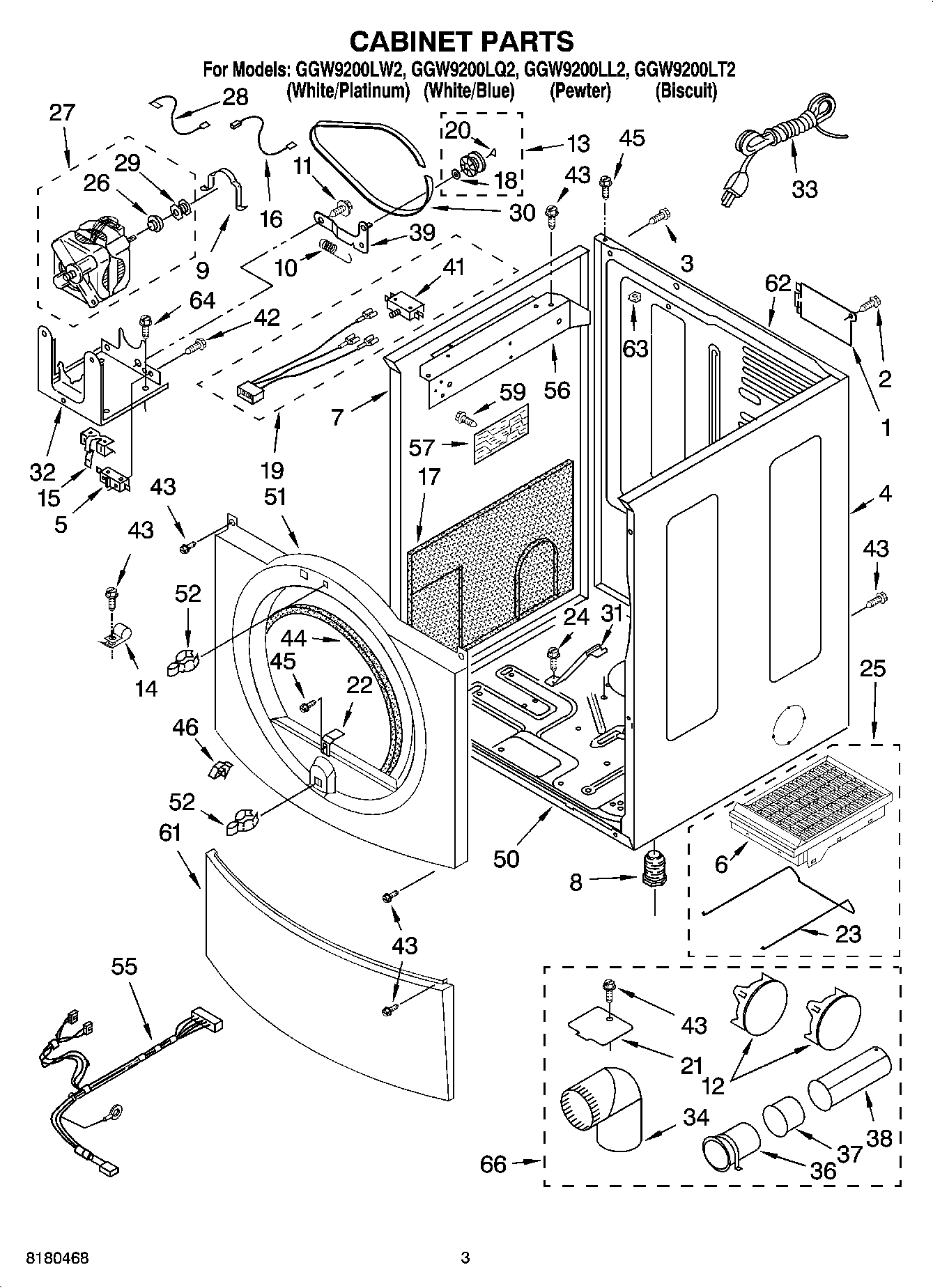

GGW9200LT2 02 – CABINET PARTS

GGW9200LT2 02 – CABINET PARTS

Written by

in

GGW9200LT2 02 – CABINET PARTS

Products

PositionProduct
1W10819767 Whirlpool Cover
2WP90767 Whirlpool Screw
3W10850756 Whirlpool Screw
5279782 Whirlpool Lid Switch
7Panel, Side (L.H.) (Biscuit)
7Panel, Side (L.H.) (White)
7Panel, Side (L.H.)
849621 Whirlpool Leveling Feet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WPW10404617 Whirlpool Plug Assembly
13279640 Whirlpool Dryer Idler Pulley Kit
143978776 Whirlpool Bracket
15WP8066120 Whirlpool Lever Assembly
16Wire, Belt Switch
17Sound Panel
18WPW10121334 Whirlpool Washer
19WP8283288 Whirlpool Door Switch
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10354249 Whirlpool Cover
22Ramp, Door
23Dry Rack Support
24WP693995 Whirlpool Screw
258212450A Whirlpool Dryer Rack Assembly
26WP3393657 Whirlpool Belt Retainer
27279787 Whirlpool Dryer Drive Motor
283398948 Whirlpool Wire
29W10837625 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31W10181903 Whirlpool Bracket
32WP3387118 Whirlpool Base Assembly
33W11628810 Whirlpool Power Cord
34WPW10416072 Whirlpool Elbow
36WP8563747 Whirlpool Exhaust Pipe
37WPW10331278 Whirlpool Exhaust Pipe
38WP8563749 Whirlpool Exhaust Pipe
39W10837240 Whirlpool Dryer Idler Pulley
42WP98129 Whirlpool Screw
43WP488729 Whirlpool Refrigerator Door Screw
44WP3387242 Whirlpool Seal
45WP308685 Whirlpool Microwave Screw
46W11295573 Whirlpool Clip
50Base, Cabinet
51Front Panel (Biscuit)
51Panel, Side (R.H.) (Pewter)
51Front Panel (White)
52279570 Whirlpool Dryer Door Latch Kit
55WPL 8299929
56WPL 8519273
57WPL 8557308
593400826 Whirlpool Screw
61WPL 8519234
61WPL 8519233
61Toe, Panel
62WPL 8519219
63WP692400 Whirlpool Nut
64WPL ARI148740A
64SCREW
66W10470674 Whirlpool Dryer Side Vent Exhaust Kit
