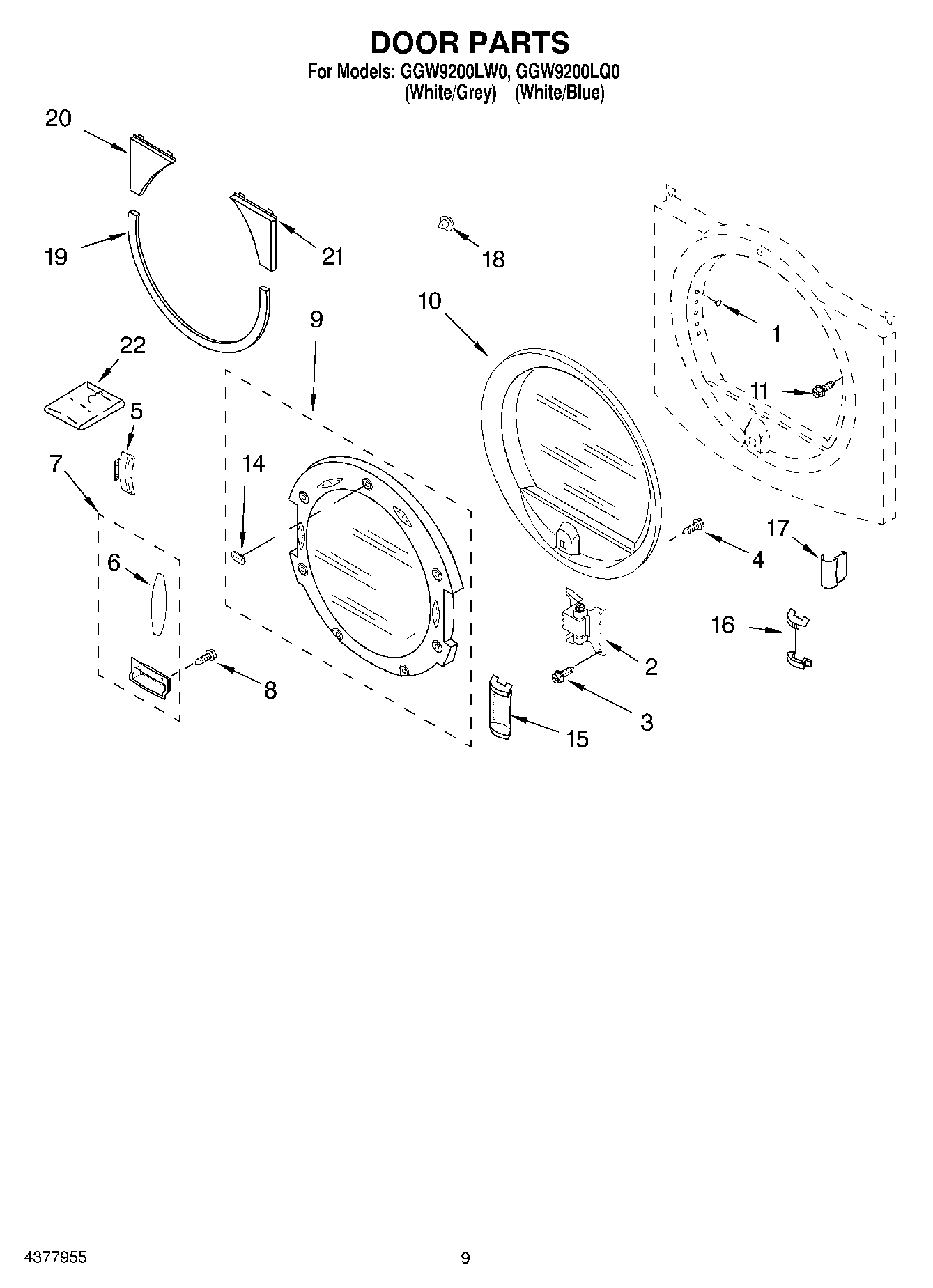

GGW9200LW0 05 – DOOR

Products

Position	Product
1	WP3404413 Whirlpool Plug
2	Door Hinge Assembly
3	Screw, 10-32 x 1/2
4	SCREW
5	Bracket, Handle
6	Pad, Door Handle
7	Handle, Door Assembly (LH) (Blue)
7	Handle, Door Assembly (LH) (Blue)
7	Handle, Door Assembly (LH) (Platinum)
7	Handle, Door Assembly (LH) (Platinum)
8	WP308685 Whirlpool Microwave Screw
9	Door Assembly (Outer) (Blue)
9	Door Assembly (Outer) (Grey)
10	Door Assembly (Inner)
11	WP355515 Whirlpool Screw
14	Badge, Assembly
15	Filler Handle (LH) (Platinum)
15	Filler Handle (LH) (Blue)
15	Filler Handle (LH) (Platinum)
15	Filler Handle (LH) (Blue)
16	WPL 8528293
16	WPL 8528292
16	WPL 8528291
16	WPL 8528290
17	WPL 8528295
17	WPL 8528294
18	Clip, Trim Panel
19	Trim & Clip Assembly (Lower) (Grey)
19	Trim & Clip Assembly (Lower) (Blue)
20	WPL 8529525
20	WPL 8529526
21	WPL 8529527
21	WPL 8529528
22	WPL 3979303
22	WPL 3979304
