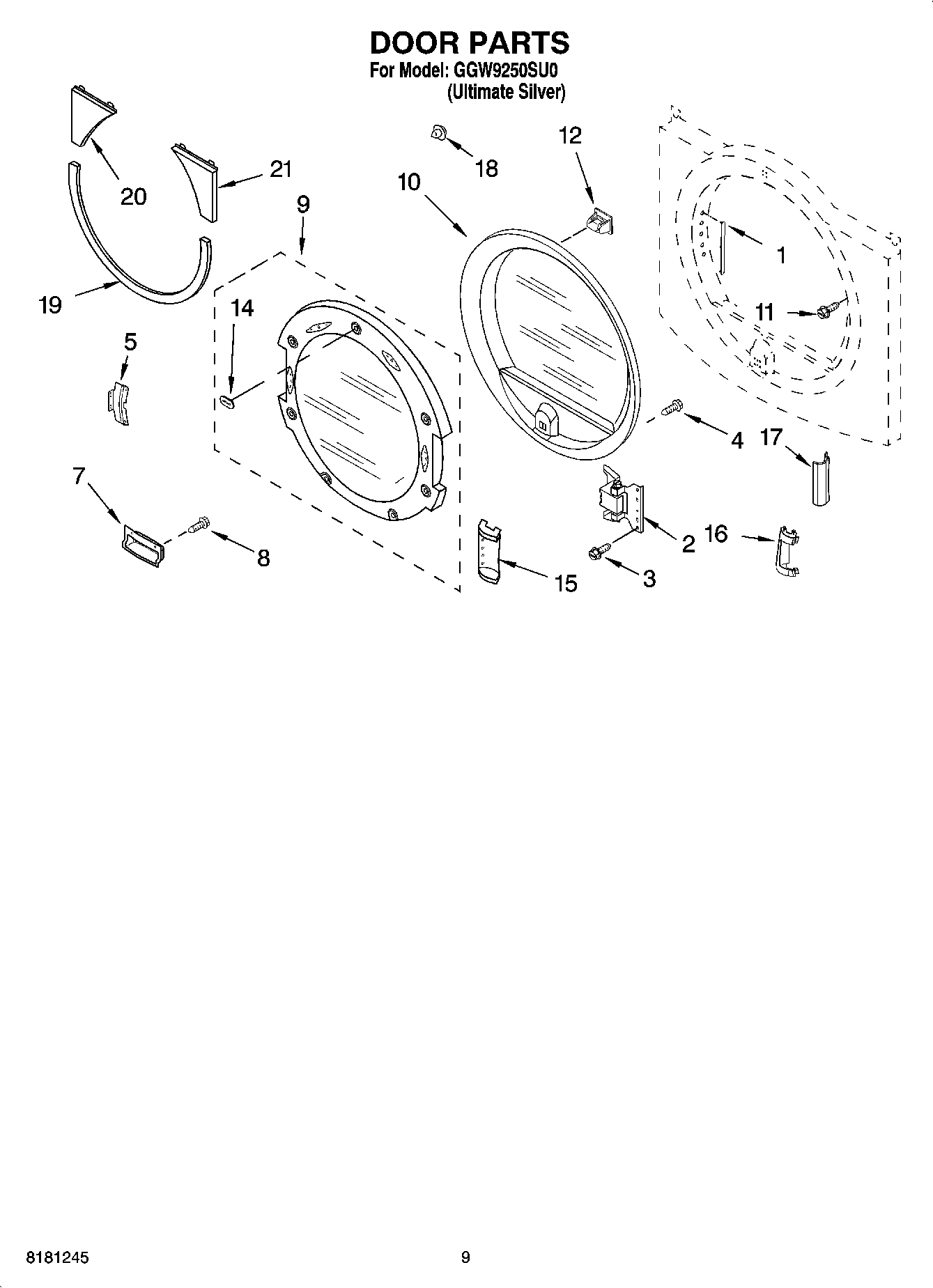

GGW9250SU0 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	WPL ARI148787A
	8541503 Whirlpool Stacking Kit
	8579123A Whirlpool Door Kit
	WP4396174 Whirlpool Touch-Up Paint
	PAINT, PRESSURIZED SPRAY (12 oz.) (Pewter)
	Platinum
	Biscuit
	8530072 Whirlpool Door Kit
	WPL 8212605
	WPL ARI148786A
	ACCESSORY PARTS, KIT, HOLD DOWN
	4392067 Whirlpool Dryer Repair Kit
	350930 Whirlpool White Spray Paint
	350938 Whirlpool Spray Gun
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	4392901 Whirlpool Biscuit Spray Paint
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
1	Plug, Strip
2	280200 Whirlpool Hinge Assembly
3	Screw, 10-32 x 3/8
4	SCREW
5	Bracket, Handle
7	Handle, Door Assembly (LH) (Silver)
7	Handle, Door Assembly (LH) Handle, Door Assembly (RH) (Silver)
8	WP308685 Whirlpool Microwave Screw
9	Door Assembly (Outer) (Silver)
10	Door Assembly (Inner) (Includes Illus. 12)
11	WP355515 Whirlpool Screw
12	WP3389441 Whirlpool Door Catch
14	Badge, Assembly
15	Filler Handle (LH) (Silver)
15	Filler Handle (LH) Filler Handle (RH) (Silver)
16	Cover-Hinge, Stationary (RH) Cover-Hinge Stationary (LH) (Silver)
16	Cover-Hinge, Stationary (RH) (Silver)
17	Cover-Hinge, Rotating (Silver)
18	Clip, Trim Panel
19	Trim & Clip Assembly (Lower) (Silver)
20	Trim & Clip Assembly (LH) (Silver)
21	Trim & Clip Assembly (RH) (Silver)

No products found
