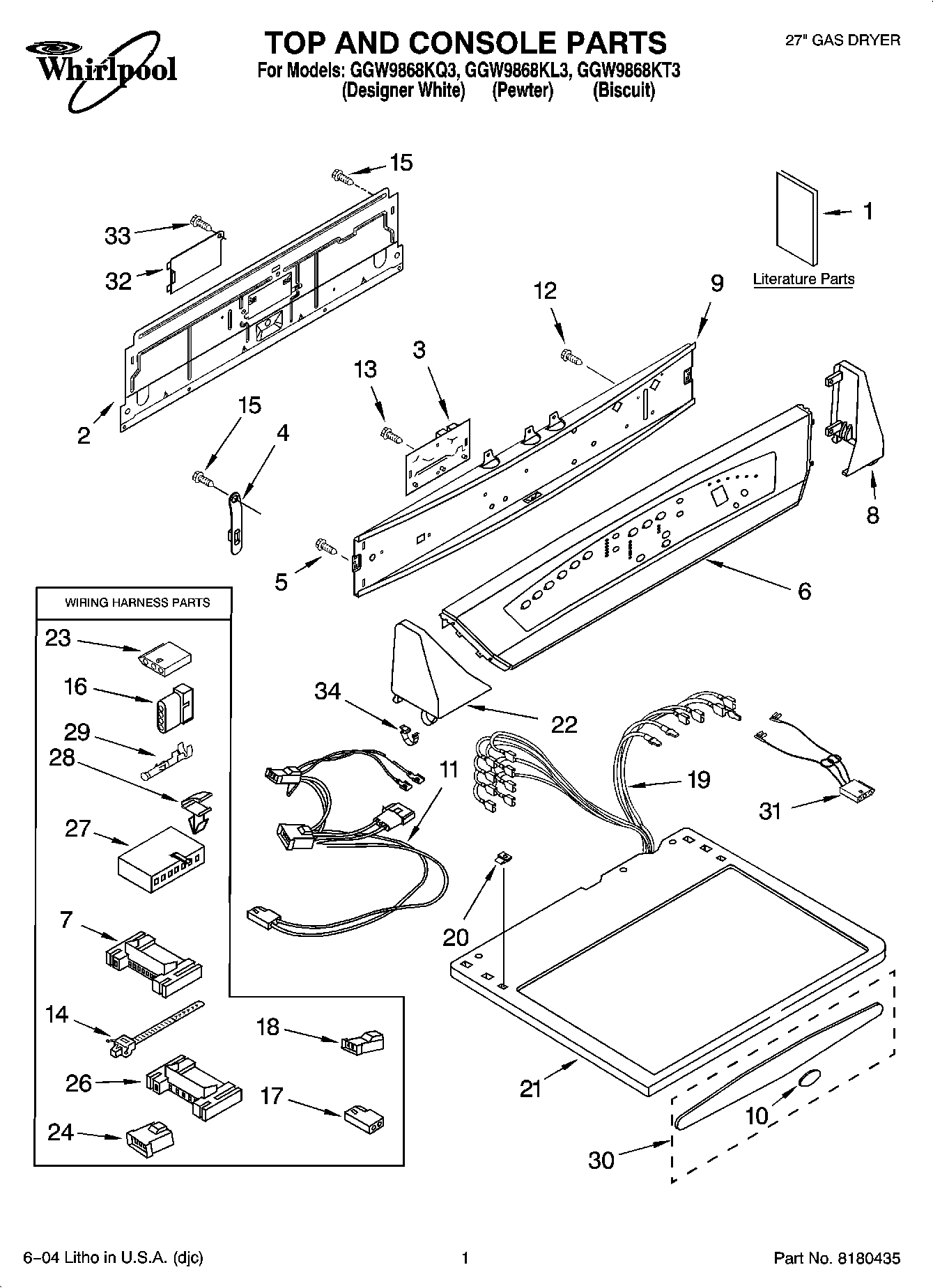

GGW9868KL3 01 – TOP AND CONSOLE PARTS

GGW9868KL3 01 – TOP AND CONSOLE PARTS

Written by

in

GGW9868KL3 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Tech Sheet
1Instructions, Installation
1Guide, Use & Care
1WPL 677818
2Panel, Rear Console
3Control Board
4WP8568314 Whirlpool Strap
5WP304231 Whirlpool Dishwasher Screw
6Panel, Console (Includes Keyswitch) (Pewter)
6Panel, Console (Includes Keyswitch) (Pearl)
73395683 Whirlpool Connector
8Cap, End (R.H.) (White)
8Cap, End (R.H.) (Pewter)
8Cap, End (R.H.) (Biscuit)
9Bracket, Control
10Medallion
11WP3401850 Whirlpool Wire Harness
123400073 Whirlpool Screw
133400826 Whirlpool Screw
14WP3391018 Whirlpool Wire Tie
15WP693995 Whirlpool Screw
16353424 Whirlpool Connector
17Receptacle, Latching (2-Way) (Uses Terminal 94614)
18WP3403499 Whirlpool Connector
19Harness, Wiring
20WP357213 Whirlpool Hinge Stopper
21Top (Pewter)
21Top (Biscuit)
21Top (White)
22Cap, End (L.H.) (White)
22Cap, End (L.H.) (Pewter)
22Cap, End (L.H.) (Biscuit)
233936144 Whirlpool Connector
24WP3403498 Whirlpool Connector
262203186 Whirlpool Connector
273936150 Whirlpool Connector
28WP3394427 Whirlpool Clip
29WP94614 Whirlpool Terminal
30Medallion Assembly (Pewter)
30Medallion Assembly (Sage)
31WP3406653 Whirlpool Wire Harness
32W10819767 Whirlpool Cover
33WP90767 Whirlpool Screw
34WP8312709 Whirlpool Endcap Clip
