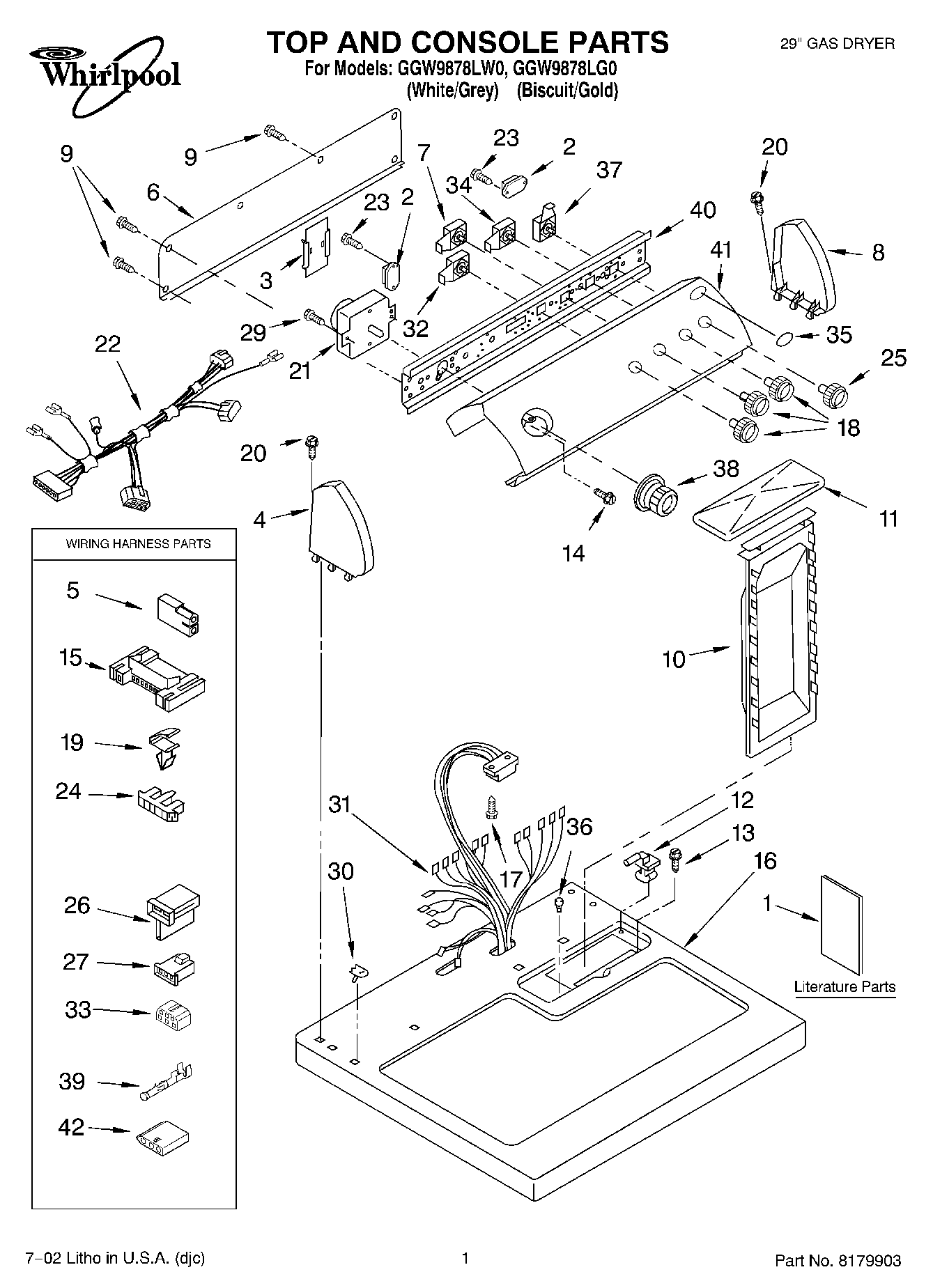

GGW9878LW0 01 – TOP AND CONSOLE, LITERATURE

GGW9878LW0 01 – TOP AND CONSOLE, LITERATURE

Written by

in

GGW9878LW0 01 – TOP AND CONSOLE, LITERATURE

Products

PositionProduct
Dryer
1Literature Parts (Installation Instructions)
1Literature Parts (Use & Care Guide)
1Literature Parts (Tech Sheet)
1Literature Parts (Wiring Diagram)
2WP3405281 Whirlpool Relay
3Control Board
4Cap, End (L.H.) (BIscuit)
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
6W10103406 Whirlpool Rear Panel
73405152 Whirlpool Switch Assembly
8WPL 8271362
8W10820038 Whirlpool Endcap
9WP693995 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
11Cover, Lint Screen (Biscuit)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top (Biscuit)
16Top
17SCREW
18KNOB
18WPL 8316545
19WP3394427 Whirlpool Clip
20WP388326 Whirlpool Screw
21WP8299771 Whirlpool Timer
22Harness, Console
23WP3388228 Whirlpool Screw
24Connector, Timer
25Knob, Push-To-Start (LGR5636LG0)
25Knob, Push-To-Start (LGR5636LW0)
26WP3403499 Whirlpool Connector
27WP3403498 Whirlpool Connector
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
328299970 Whirlpool Switch Assembly
33Block, Disconnect
343405151 Whirlpool Switch
35Medallion
36Bumper, Lint Lid
37WP3977456 Whirlpool Start Switch
38WP8557455 Whirlpool Knob Timer
38WPL 8316549
39WP94614 Whirlpool Terminal
40Bracket, Control
41WPL 8532633
41WPL 8532634
424392065 Whirlpool Dryer Maintenance Kit
42PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
42KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
42350938 Whirlpool Spray Gun
4272017 Whirlpool Appliance Touch-Up Paint White
42799344 Whirlpool Refrigerator Paint
42350930 Whirlpool White Spray Paint
424392899 Whirlpool Biscuit Touch-Up Paint
423406839 Whirlpool Drying Rack
424392901 Whirlpool Biscuit Spray Paint
42W11224254 Whirlpool Test Kit
423936144 Whirlpool Connector
