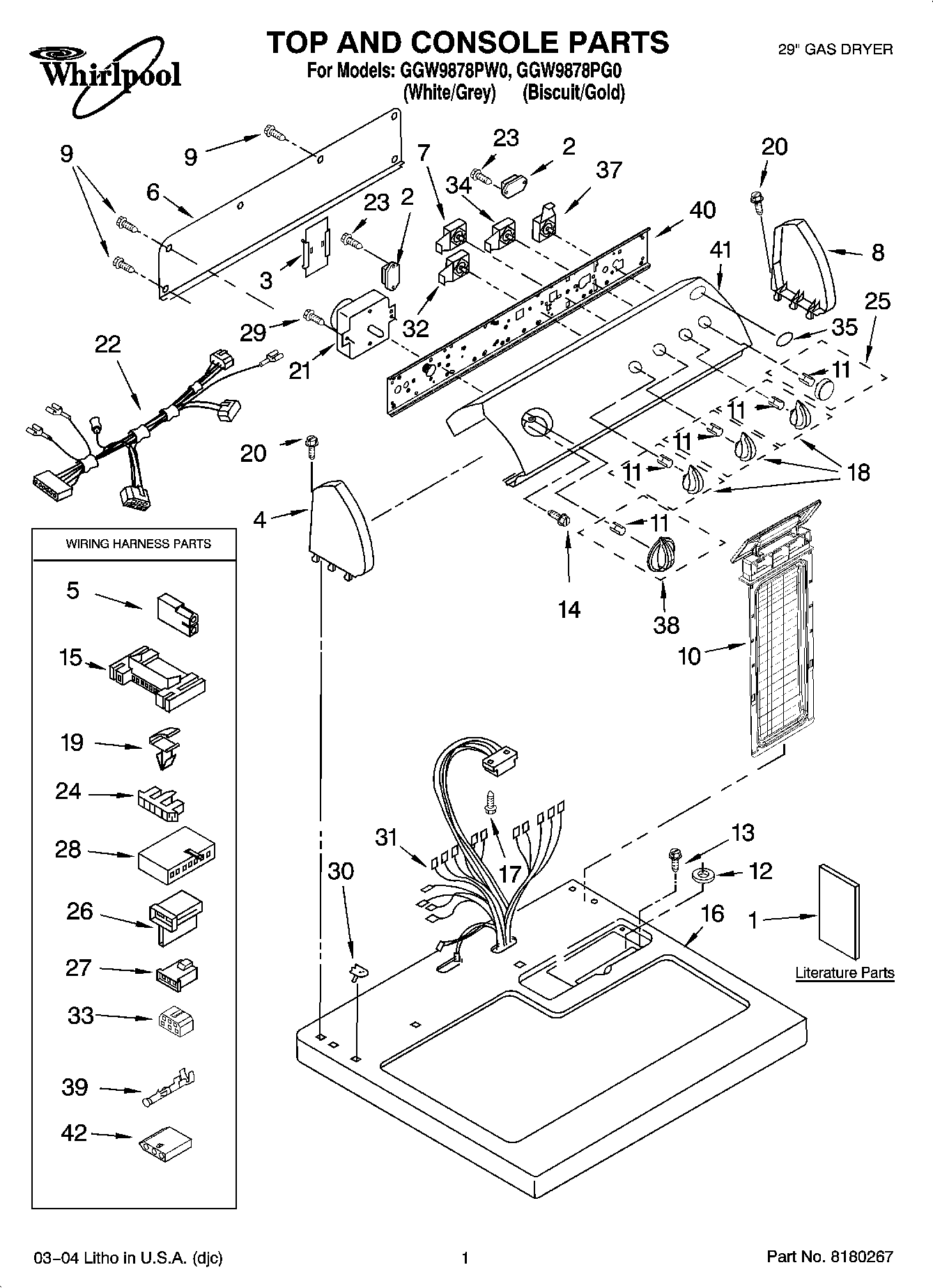

GGW9878PW0 01 – TOP AND CONSOLE PARTS

GGW9878PW0 01 – TOP AND CONSOLE PARTS

Written by

in

GGW9878PW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Literature Parts (Installation Instructions)
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Dryer
1Literature Parts (Sheet, Cycle Feature)
1Literature Parts (Tech Sheet)
1Literature Parts (Sheet, Feature Resource Saver)
1Literature Parts (Use & Care Guide)
2WP3405281 Whirlpool Relay
3Control Board
4Cap, End (L.H.) (BIscuit)
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
6W10103406 Whirlpool Rear Panel
73405152 Whirlpool Switch Assembly
8WPL 8271362
8W10820038 Whirlpool Endcap
9WP693995 Whirlpool Screw
10WPW10717210 Whirlpool Dryer Lint Screen Filter
10Screen, Lint (Biscuit)
11WP8536939 Whirlpool Spring Clip
12Washer
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top (Biscuit)
16Top (White)
17SCREW
18WPL 8544937
18WPL 8544938
19WP3394427 Whirlpool Clip
20WP388326 Whirlpool Screw
21WP8299771 Whirlpool Timer
22Harness, Console
23WP3388228 Whirlpool Screw
24Connector, Timer
25WP8544941 Whirlpool Knob
26WP3403499 Whirlpool Connector
27WP3403498 Whirlpool Connector
283936150 Whirlpool Connector
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
328299970 Whirlpool Switch Assembly
33Block, Disconnect
343405151 Whirlpool Switch
35WPL 8533990
37WP3977456 Whirlpool Start Switch
38WPL 8544957
38WPL 8544958
39WP94614 Whirlpool Terminal
40Bracket, Control
41WPL 8545984
41WPL 8545982
42799344 Whirlpool Refrigerator Paint
4272017 Whirlpool Appliance Touch-Up Paint White
42350938 Whirlpool Spray Gun
423936144 Whirlpool Connector
42350930 Whirlpool White Spray Paint
424392899 Whirlpool Biscuit Touch-Up Paint
424392901 Whirlpool Biscuit Spray Paint
42PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
423406839 Whirlpool Drying Rack
424392065 Whirlpool Dryer Maintenance Kit
42W11224254 Whirlpool Test Kit
42KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
42WPL ARI148842A
