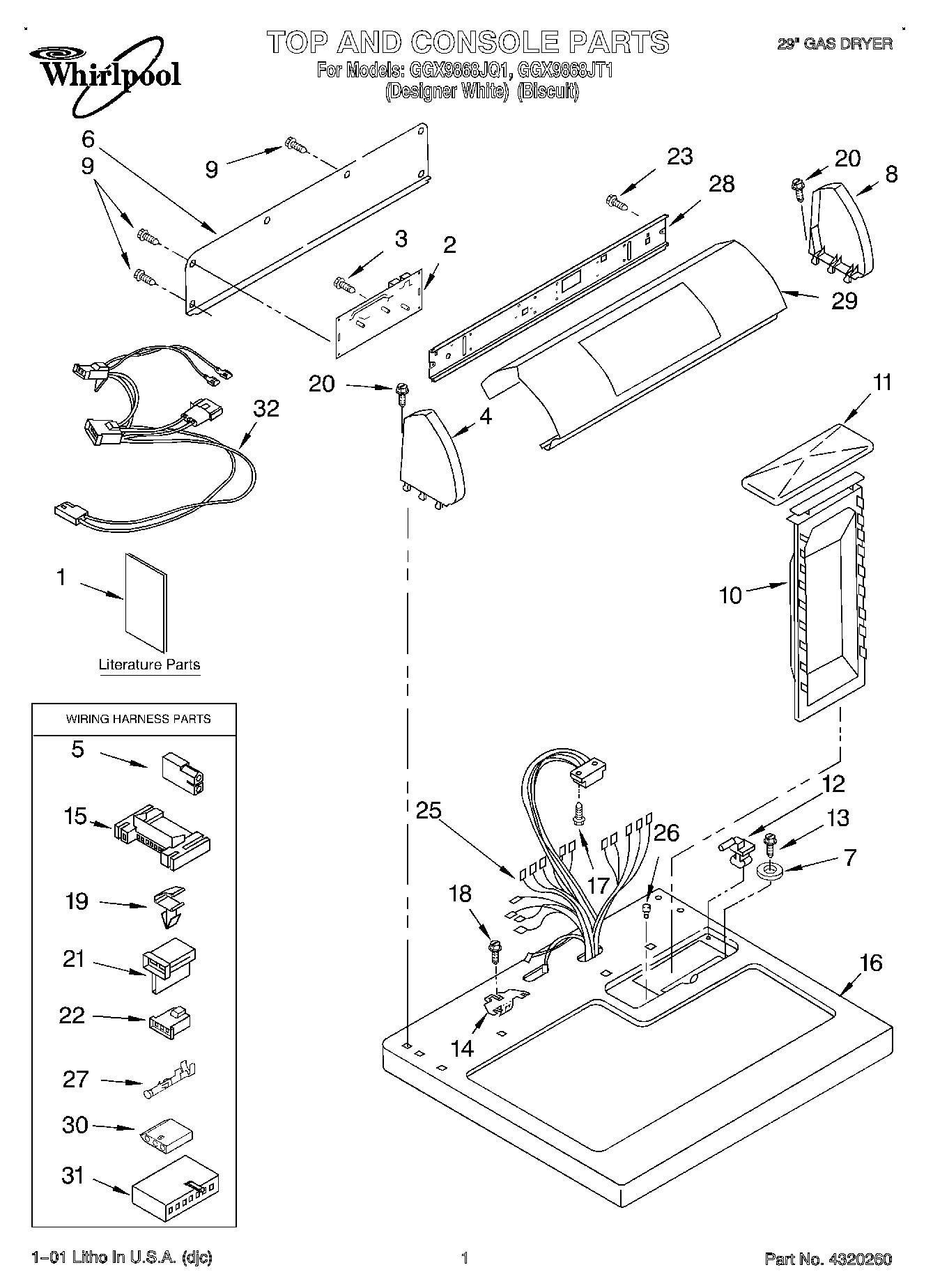

GGX9868JT1 01 – TOP AND CONSOLE, LIT/OPTIONAL

GGX9868JT1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

GGX9868JT1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
Dryer
1Literature Parts (Tech Sheet)
1Literature Parts (Wiring Diagram)
1Instructions, Installation
1Literature Parts (Use & Care Guide)
2Control Board
33400826 Whirlpool Screw
4Cap, End (L.H.) (BIscuit)
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
6W10103406 Whirlpool Rear Panel
7Washer
8W10820038 Whirlpool Endcap
8WPL 8271362
9WP693995 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (White)
11Cover, Lint Screen (Biscuit)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Clip, Static Ground
153395683 Whirlpool Connector
16Top
16Top (Biscuit)
17SCREW
18WP355214 Whirlpool Screw
19WP3394427 Whirlpool Clip
20WP388326 Whirlpool Screw
21WP3403499 Whirlpool Connector
22WP3403498 Whirlpool Connector
23WPW10139210 Whirlpool Screw
25Harness, Wiring
26Bumper, Lint Lid
27WP94614 Whirlpool Terminal
28Bracket, Control
29Panel, Control
29Panel, Control (Biscuit)
303936144 Whirlpool Connector
313936150 Whirlpool Connector
32350930 Whirlpool White Spray Paint
3272017 Whirlpool Appliance Touch-Up Paint White
324392899 Whirlpool Biscuit Touch-Up Paint
32799344 Whirlpool Refrigerator Paint
32350938 Whirlpool Spray Gun
324392901 Whirlpool Biscuit Spray Paint
32PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
32WP3401850 Whirlpool Wire Harness
