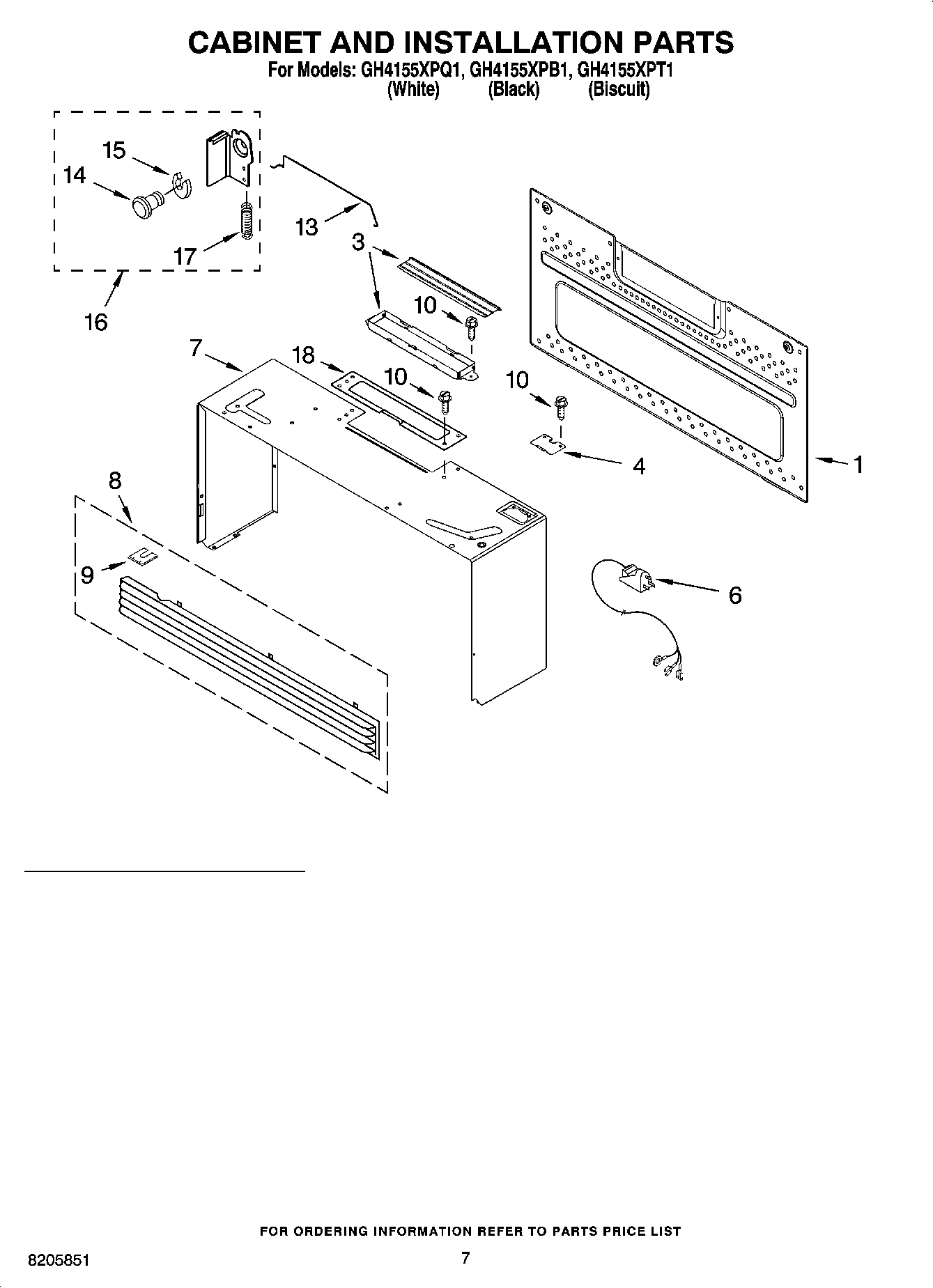

GH4155XPB1 06 – CABINET AND INSTALLATION PARTS

Products

Position	Product
1	WP8206174 Whirlpool Microwave Mounting Bracket
3	W10843943 Whirlpool Microwave Vent Damper
4	Lid, Power Cord
6	Cord, Power
7	Case, Outer (White)
7	Case, Outer (Black)
7	Case, Outer (Biscuit)
8	8183948 Whirlpool Microwave Oven Vent Grille
8	8183852 Whirlpool Microwave Primary Vent Grille
8	8183851 Whirlpool Microwave Oven Vent Grille Black
9	8206334 Whirlpool Microwave Mounting Bracket
10	Screw
13	Rod
14	Latch, Pivot
15	E-Ring
16	Catch
17	Spring
18	H.V. Wire Assembly
18	ACCESSORY PARTS
18	(Biscuit)
18	Cavity Lamp Wiring
18	Fan Motor Wiring
18	Stirrer Motor Wire
18	Lamp Wire Assembly
18	WP8169704 Whirlpool Screw
18	Ground Wire Assy.
18	Rack
18	Wall Template
18	Filler Kit (Biscut)
18	Filler Kit (Black)
18	Filler Kit (White)
18	Plate, Damper
18	Hardware, Installation
18	Miscellaneous
