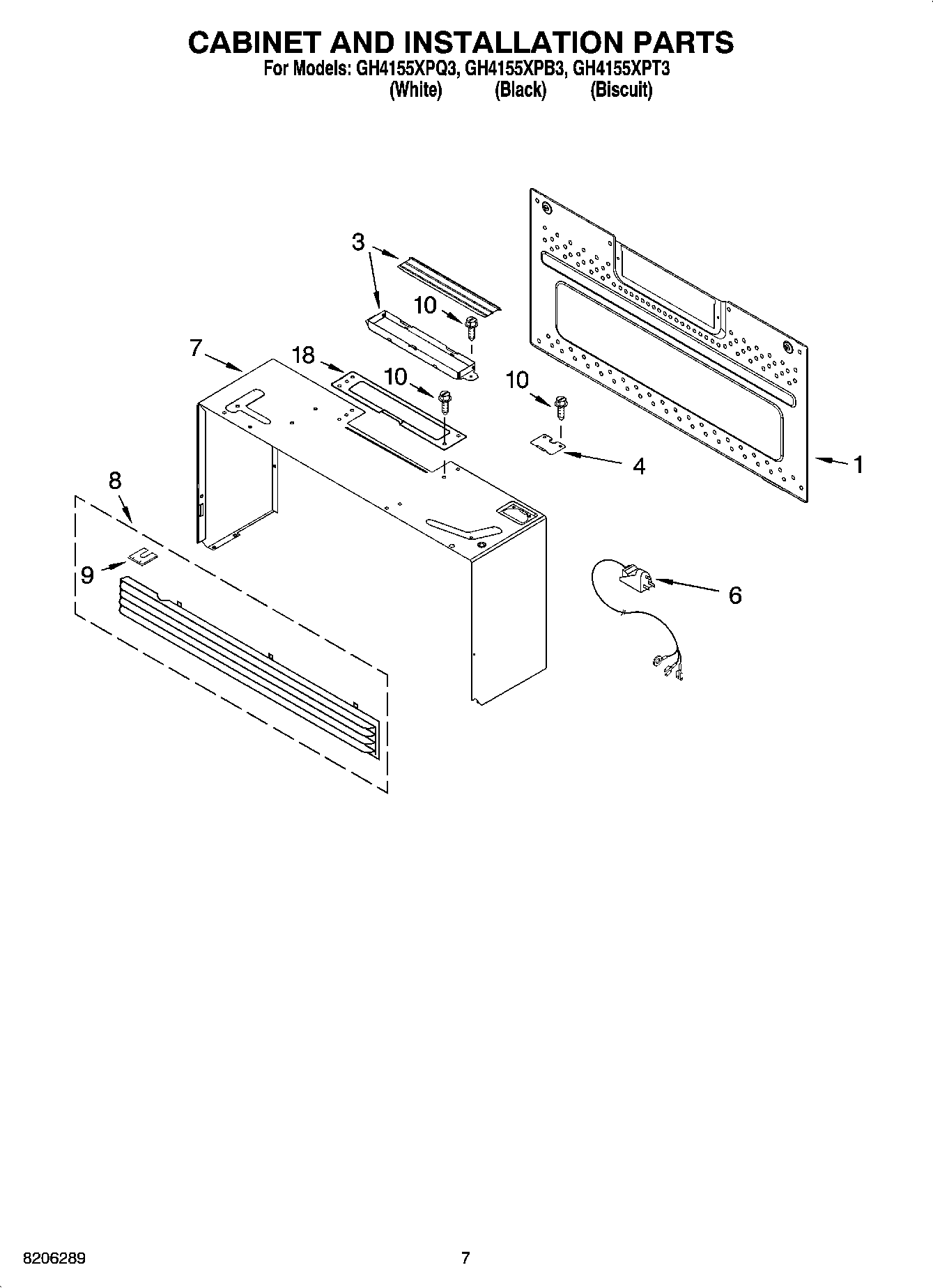

GH4155XPB3 06 – CABINET AND INSTALLATION PARTS

Products

Position	Product
1	WP8206174 Whirlpool Microwave Mounting Bracket
3	W10843943 Whirlpool Microwave Vent Damper
4	Lid, Power Cord
6	Cord, Power
7	Case, Outer (White)
7	Case, Outer (Black)
7	Case, Outer (Biscuit)
8	8183948 Whirlpool Microwave Oven Vent Grille
8	8183851 Whirlpool Microwave Oven Vent Grille Black
8	8183852 Whirlpool Microwave Primary Vent Grille
9	8206334 Whirlpool Microwave Mounting Bracket
10	Screw
18	Fan Motor Wiring
18	Stirrer Motor Wire
18	Lamp Wire Assembly
18	H.V. Wire Assembly
18	Hardware, Installation
18	ACCESSORY PARTS
18	Cavity Lamp Wiring
18	(Biscuit)
18	Ground Wire Assy.
18	WP8169704 Whirlpool Screw
18	Rack
18	Filler Kit (Biscut)
18	Filler Kit (Black)
18	Filler Kit (White)
18	Plate, Damper
18	Miscellaneous
