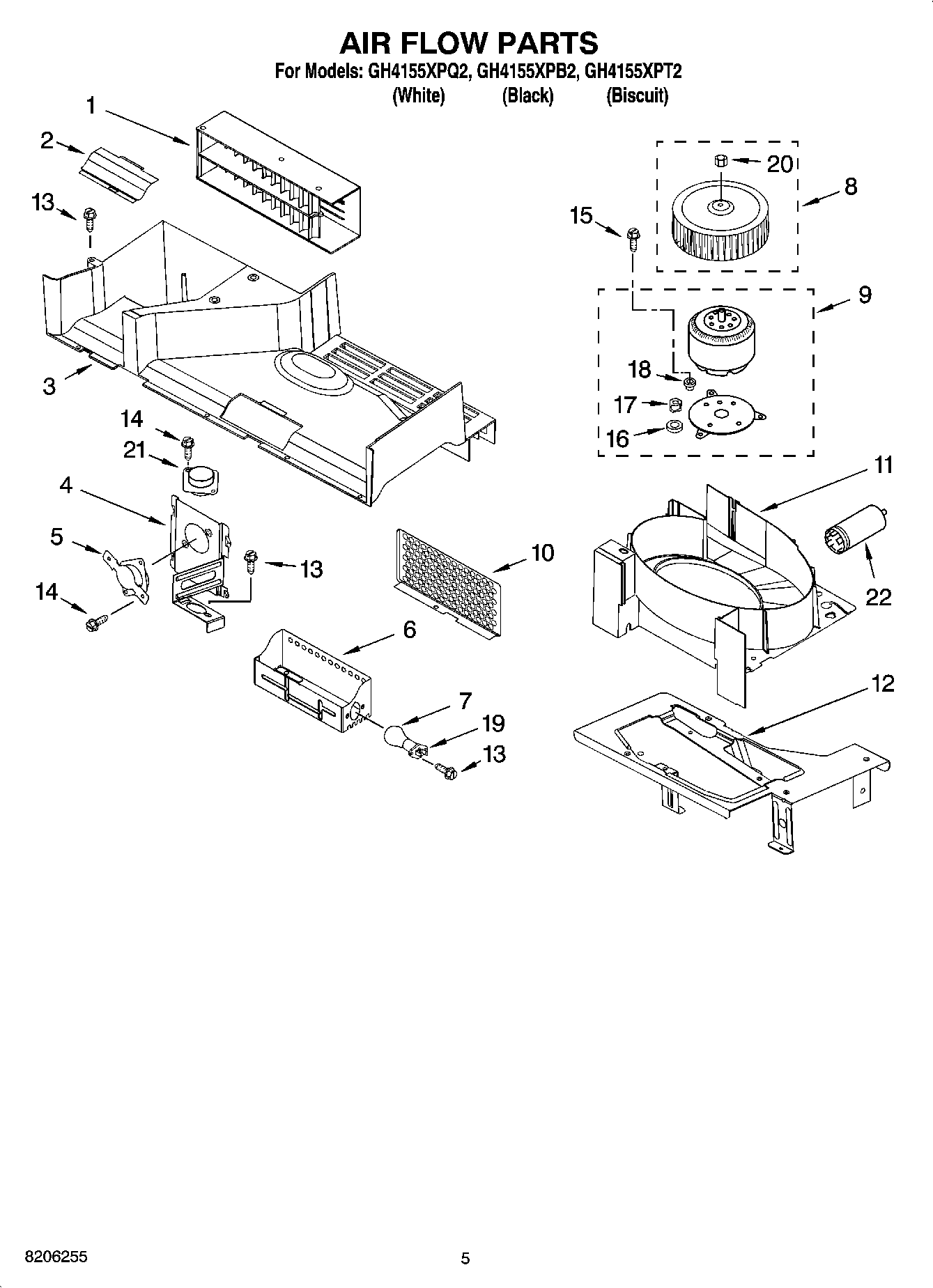

GH4155XPQ2 04 – AIR FLOW PARTS

Products

Position	Product
1	Deflector, Air
2	Reflector, Air
3	Duct, Air
4	Bracket, Thermostat
5	Thermostat
6	Housing, Lamp
7	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
8	Wheel, Fan
9	Motor, Fan
10	Shield
11	Housing, Fan
12	Bracket, Fan (Not Serviced)
13	Screw
14	Screw
15	Screw
16	Plate, Damper
17	Spacer, Copper Pipe
18	Cushion, Mtr
19	8169539 Whirlpool Microwave Light Bulb Socket and Housing
20	Nut
21	Humidity, Sensor
22	Filter
